Lamp inserts (35mm long, 10mm dia.)
Description
The lamp insert, carrying the LED, slides in and out of the body for focusing. Inserts come complete with high-intensity LEDs, series resistors and flying leads for connection to a 6V DC supply. We also list empty inserts (without resistor or leads) to take customers’ own LEDs.
Illuminated area
This is normally an image of the LED body, which on our standard modules is 5mm dia. The magnification of the image is given by (v - f)/f where v is the projection distance from the lens and f is the lens focal length (31.5mm as standard).
| Item code | Intensity (Typical) (cd) | Wavelength (nm) | Led dia (mm) | Emission angle 2θ½° | Colour | Type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|

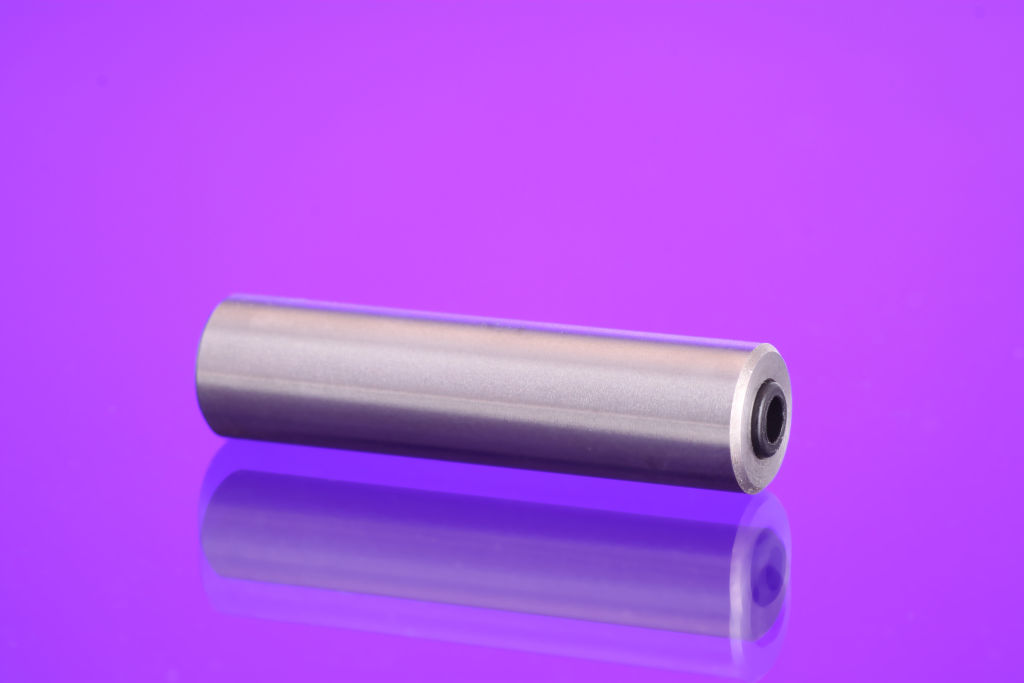

| 01 LD 03 | – | – | 3 | – | – | Empty insert | £12.34 | ||||

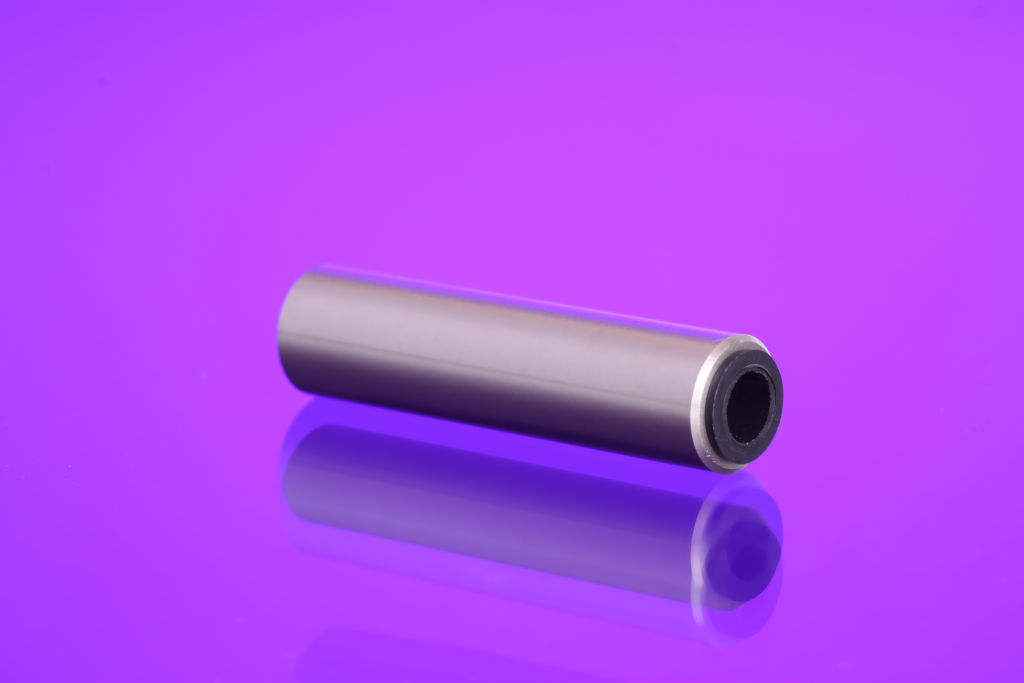

| 01 LD 05 | – | – | 5 | – | – | Empty insert | £12.34 | ||||

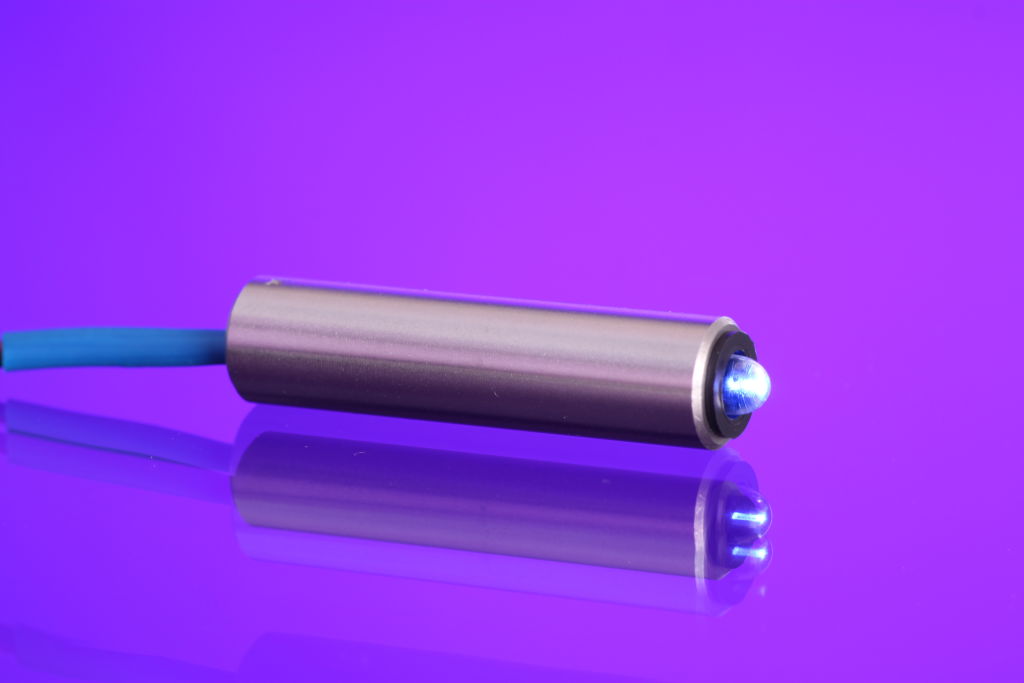

| 01 LD 470 | 2 | 470 | 5 | 15 | Blue | Insert with LEDs (6V, 20mA) | £17.55 | ||||
| 01 LD 525 | 6 | 525 | 5 | 15 | Green | Insert with LEDs (6V, 20mA) | £17.55 | ||||
| 01 LD 660 | 2.75 | 660 | 5 | 30 | Red | Insert with LEDs (6V, 20mA) | £17.55 | ||||
