Lamphouse bodies (19mm dia.)
Description
Bodies are listed with or without collimating lenses; these project a well-defined circular patch of light at any distance from 100mm upwards. (For closer focusing add a condenser) All bodies have a 16mm female TubeMount thread for attaching further optics. As well as the very compact basic bodies we list flanged bodies for bolting to a flat surface and a 25mm threaded version for joining to 25mm tubes etc.
Illuminated area
This is normally an image of the LED body, which on our standard modules is 5mm dia. The magnification of the image is given by (v - f)/f where v is the projection distance from the lens and f is the lens focal length (31.5mm as standard).
| Item code | Length (mm) | Description | Lenses included | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|

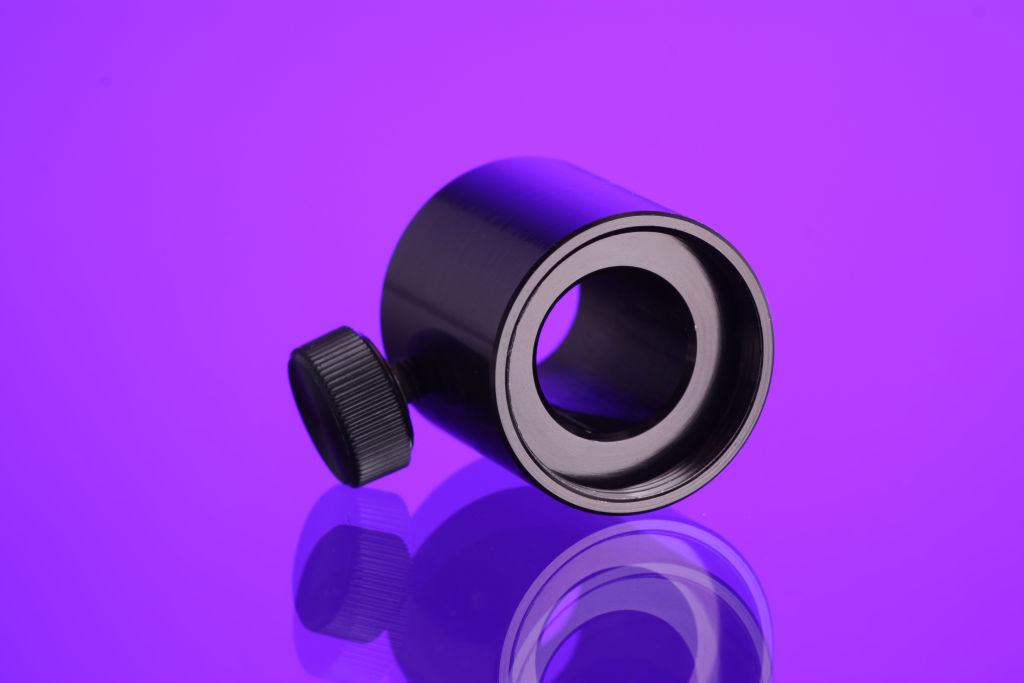

| 30 LH 00 | 20 | Basic body | Without lens | £29.52 | ||||

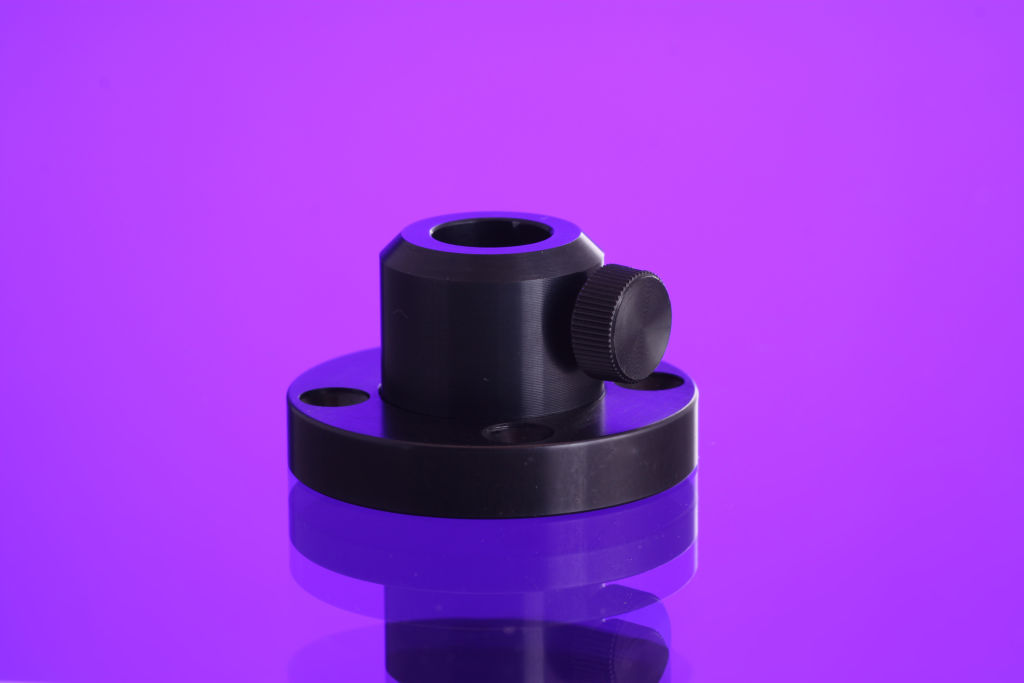

| 30 LH 02 | 20 | With flange 35mm dia.* | Without lens | £36.91 | ||||

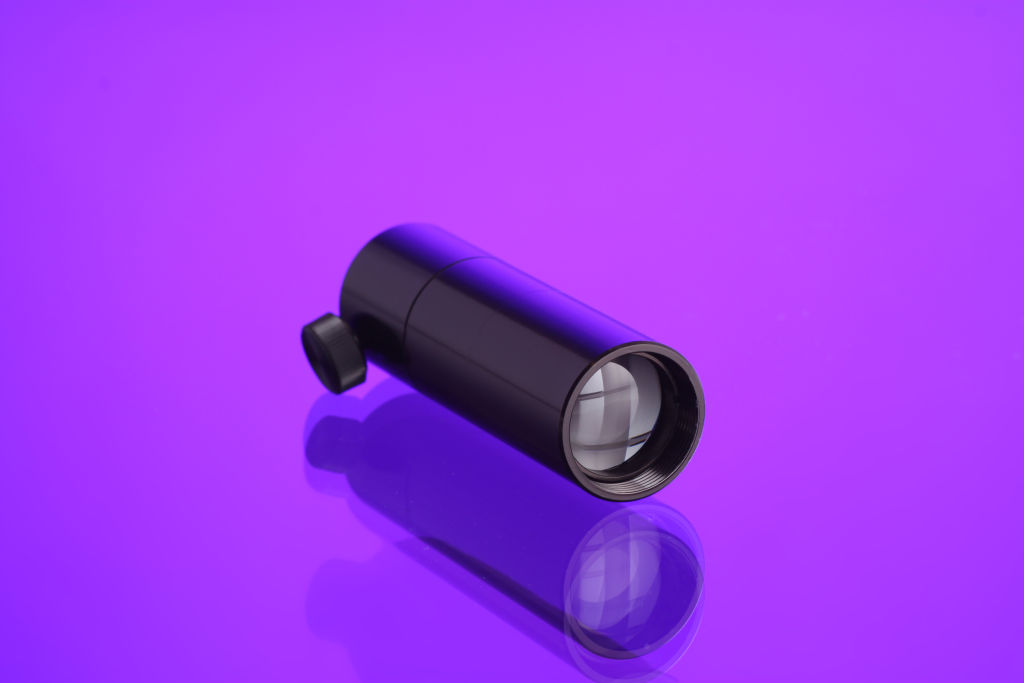

| 32 LH 00 | 60 | Basic body | With collimating lens (31.5mm FL) | £66.31 | ||||
For more information regarding stock availability icons, please see our shipping page.
