UV and IR sheet polarisers
Description
We now offer very good alternatives to the obsolescent Polaroid UV and IR materials (HNP'B and HR). All offer excellent contrast ratio and high transmission.
UV material for use down to 280nm (type 01 WL xx).
The IR material (equivalent to the old Polaroid HR) covers 700-2000nm (type 06 WL xx).

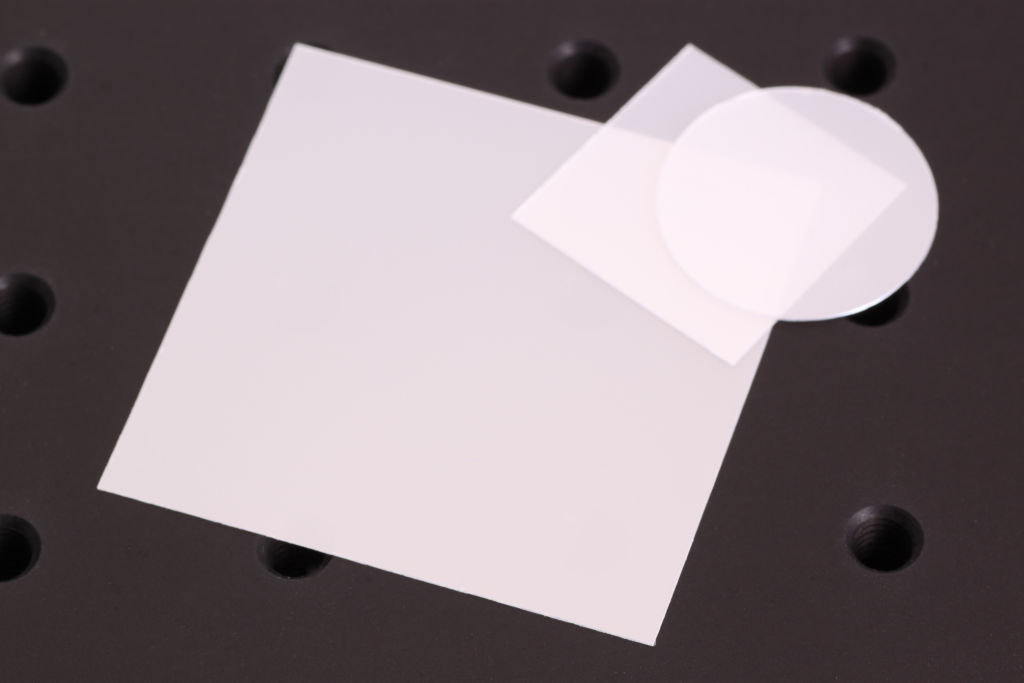

The NIR polariser (type 07 WL xx) has a narrower bandwidth, 700-1100nm, but is much more economical than the IR . Note, though, that this 07 material, designed for diode use, is opaque and unsuitable if good transparency is required.
| Item code | Material | Wavelength range (nm) | Size (mm) | Thickness (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|
| 07 WL 50 | NIR | 700-1100 | 50 x 50 | 0.13 | TBA | Send us a stock query | |||
| 07 WL 25 | NIR | 700-1100 | 25 x 25 | 0.13 | TBA | Send us a stock query | |||
| 07 WL 104 | NIR | 700-1100 | 25 dia. | 0.13 | TBA | Send us a stock query | |||
| 06 WL 50 | IR | 800-2000 | 50 x 50 | 0.38 | TBA | Send us a stock query | |||
| 06 WL 25 | IR | 800-2000 | 25 x 25 | 0.38 | TBA | Send us a stock query | |||
| 06 WL 104 | IR | 800-2000 | 25 dia. | 0.38 | TBA | Send us a stock query | |||
| 01 WL 50 | UV | 280-450+ | 50 x 50 | 0.15 | £325.97 | ||||
| 01 WL 25 | UV | 280-450+ | 25 x 25 | 0.15 | TBA | Send us a stock query | |||
| 01 WL 104 | UV | 280-450+ | 25 dia. | 0.15 | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
