Edge clamps
Description

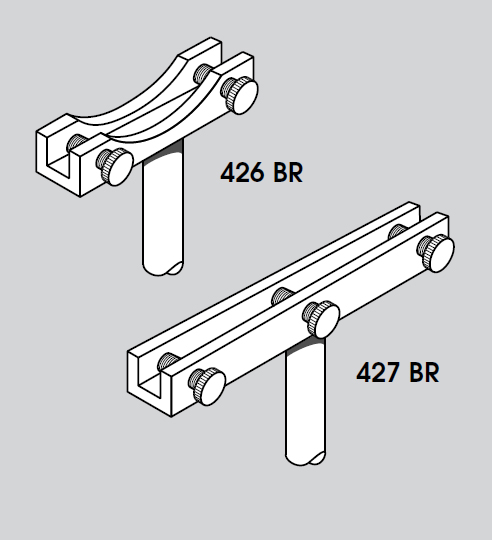

These holders are suitable for screens, filters, Fresnel lenses and any flat straight-sided component up to 6mm thick. Components are held by nylon screws in a black anodised channel section, without marring the surfaces.

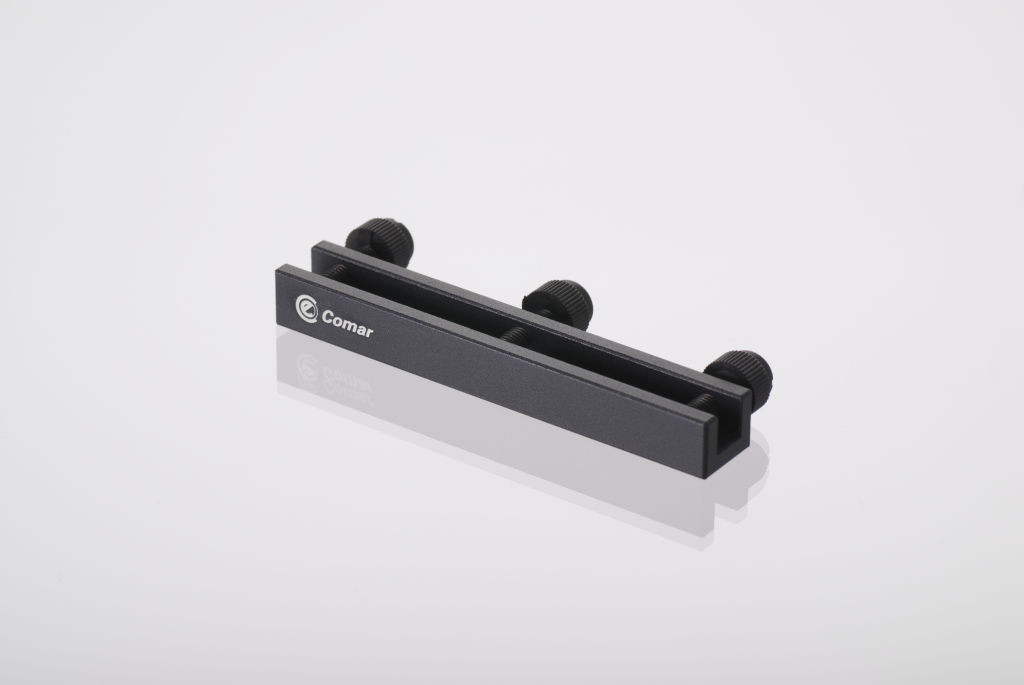

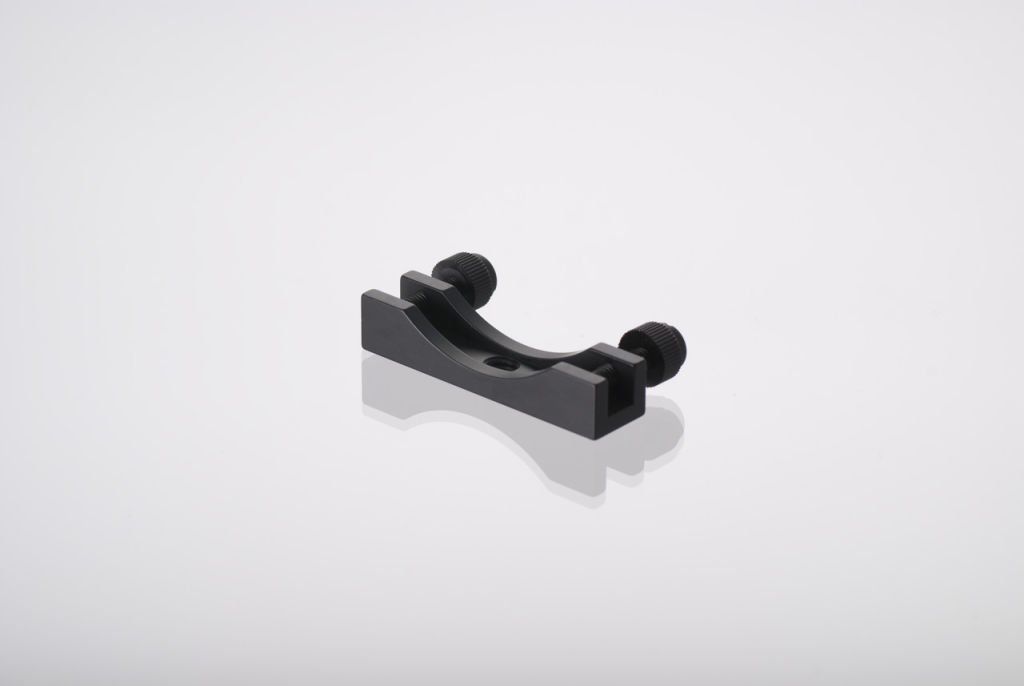

The smaller filter holder is particularly suitable for standard 50 x 50mm filters and has a cut-out to allow a central clear aperature of up to 48mm diameter. The longer screen holder is intended for larger sizes and obscures a 7mm strip along the bottom edge of the component. However both are open-ended and can be used for any size.
Alternative posts
Direct mount holders have M6 thread to accept alternative posts.
For more details of your modification needs please enquire.
| Item code | Post length (mm) | Length (mm) | No. of clamp screws | Post diameter (mm) | Description | Mount type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 427 BR 00 | - | 80 | 3 | - | Screen holder | Direct mount holder (no post) | TBA | Send us a stock query | |||
| 426 BR 00 | - | 50 | 2 | - | Filter holder | Direct mount holder (no post) | £24.68 | ||||
For more information regarding stock availability icons, please see our shipping page.
