Focusing and centring holders
Description

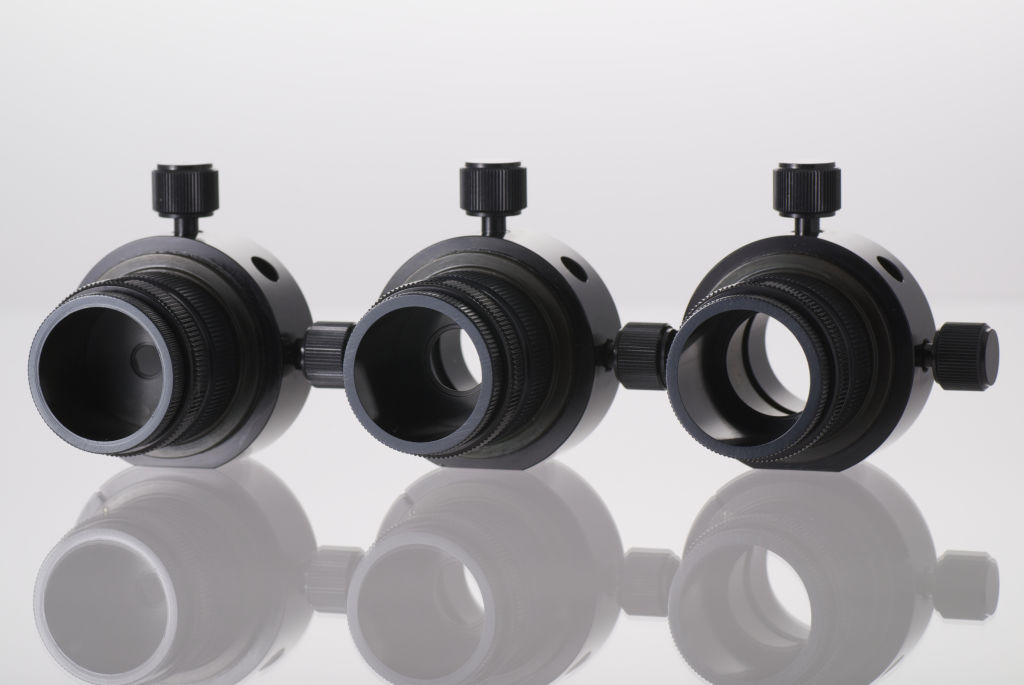

These are similar to standard fixed holders but have vertical and horizontal adjusting screws allowing a component to be translated up to 1.5mm off axis in any direction, and a focusing action with 9mm range.(Note that this rotates the component.)
The body of these types accepts 25mm components directly, but is also offered complete with lens-size adaptors for other sizes. For sizes not listed use the 25mm size and select appropriate adaptors.
Alternative post
Direct mount holder have M6 thread to accept alternative posts.
For more details of your modification needs please enquire.
| Item code | Axis height (mm) | Post length (mm) | Lens diameter (mm) | Clear aperture (mm) | Post diameter (mm) | Mount type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 04 HX 00 | 20 | - | 4 | 3.3 | - | Direct mount holder (no post) | TBA | Send us a stock query | |||
| 06 HX 00 | 20 | - | 6.3 | 5.3 | - | Direct mount holder (no post) | TBA | Send us a stock query | |||
| 10 HX 00 | 20 | - | 10 | 8.8 | - | Direct mount holder (no post) | TBA | Send us a stock query | |||
| 12 HX 00 | 20 | - | 12.5/12.7 | 11 | - | Direct mount holder (no post) | TBA | Send us a stock query | |||
| 16 HX 00 | 20 | - | 16 | 14.4 | - | Direct mount holder (no post) | TBA | Send us a stock query | |||
| 20 HX 00 | 20 | - | 20 | 18.3 | - | Direct mount holder (no post) | TBA | Send us a stock query | |||

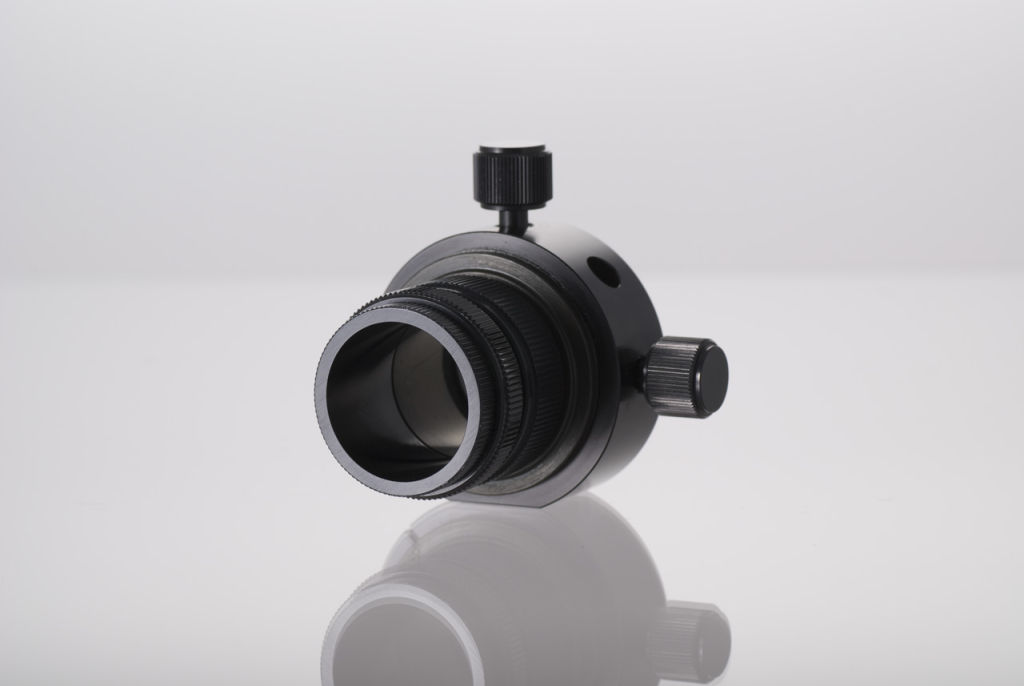

| 25 HX 00 | 20 | - | 25 | 23.2 | - | Direct mount holder (no post) | £120.88 | ||||
For more information regarding stock availability icons, please see our shipping page.
