Sliding-arm lens holders
Description
These simple and inexpensive holders grip and automatically center any circular component in precisely-machined V-grooves and are a necessary item for any optical laboratory.
In the basic range, the lens is clamped by the sliding top bar.
Our spring-loaded holders have a sprung plastic plunger in the top bar which allows rapid removal and insertion of optics, even slightly different sizes, without moving the top bar. The larger models have additional tapped mounting holes in the base useful for rigid direct mounting with direct mounting screws, 16 XW 16.
Alternative posts
Direct mount holders have M6 thread to accept alternative posts.
For more details of your modification needs please enquire.

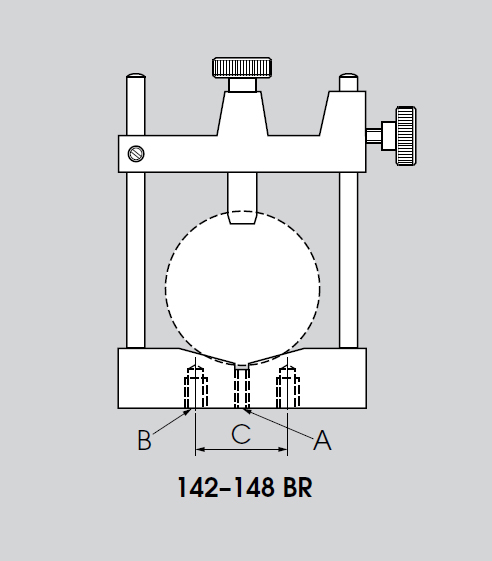

| Item code | Post length (mm) | Max lens dia. (mm) | Central hole thread A | Side hole thread B | Hole spacing C (mm) | Post diameter (mm) | Type | Mount type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

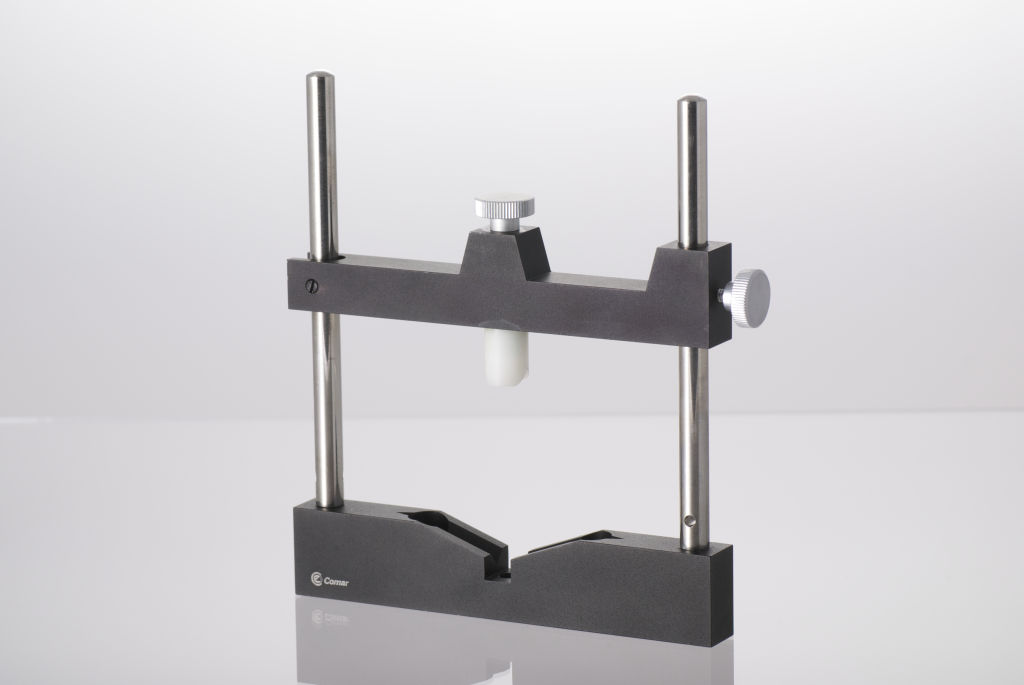

| 148 BR 00 | - | 100 | M6 | M6 | 50 | - | Spring-loaded range | Direct mount holder (no post) | £85.79 | ||||

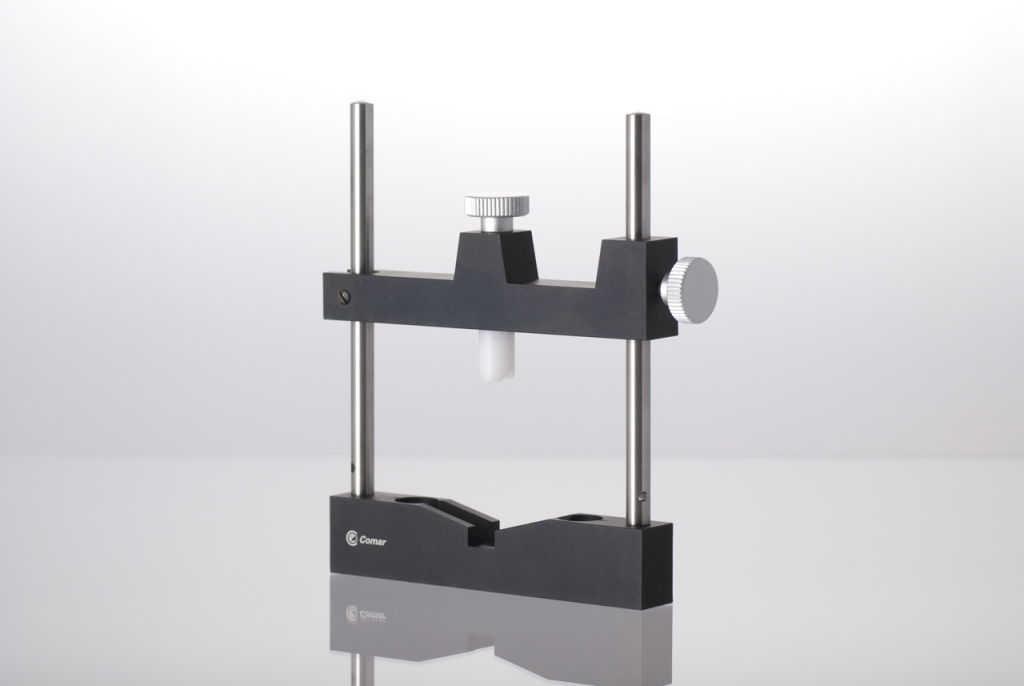

| 146 BR 00 | - | 75 | M6 | M6 | 50 | - | Spring-loaded range | Direct mount holder (no post) | £70.54 | ||||

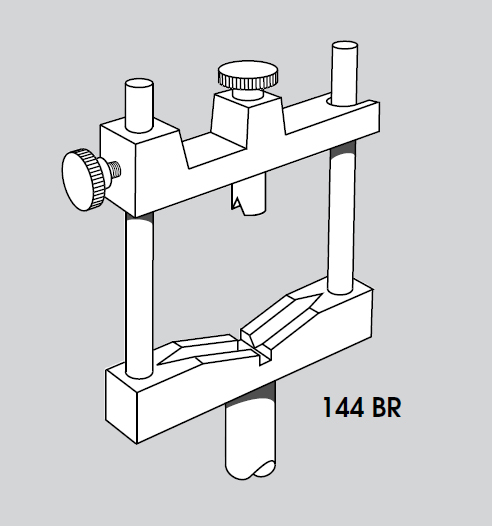

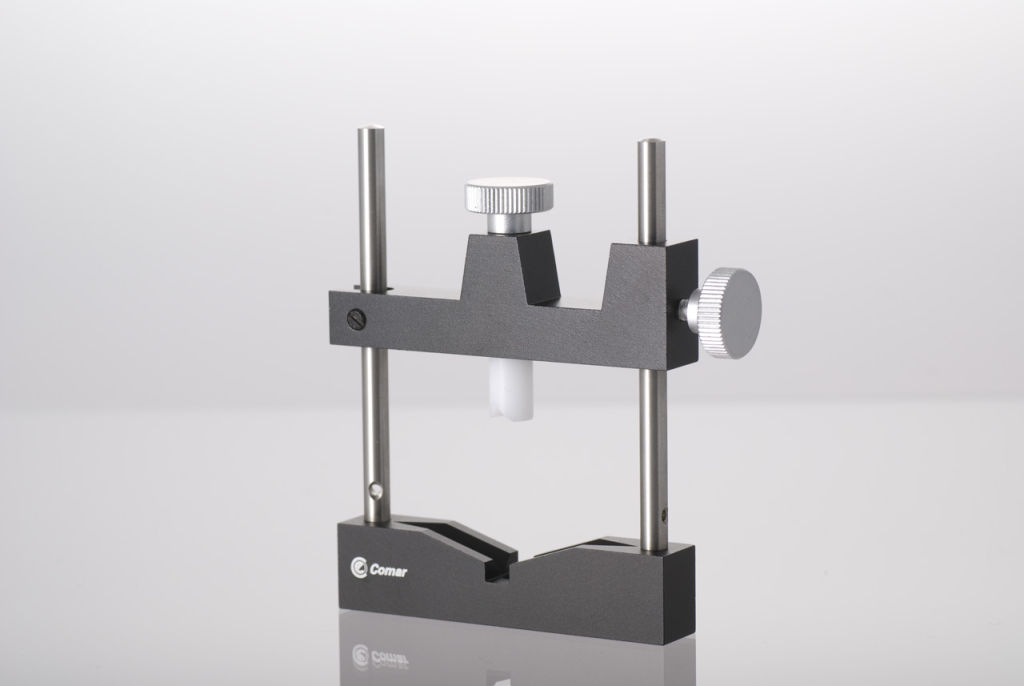

| 144 BR 00 | - | 50 | M4 | M6 | 25 | - | Spring-loaded range | Direct mount holder (no post) | £63.16 | ||||

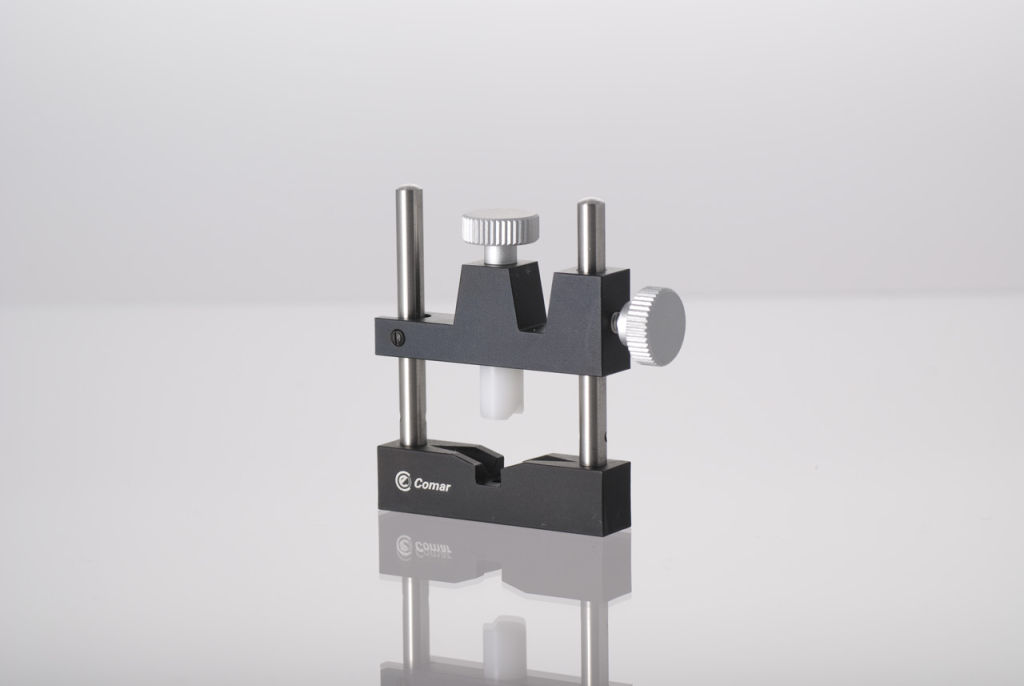

| 142 BR 00 | - | 30 | M4 | - | - | - | Spring-loaded range | Direct mount holder (no post) | £56.63 | ||||

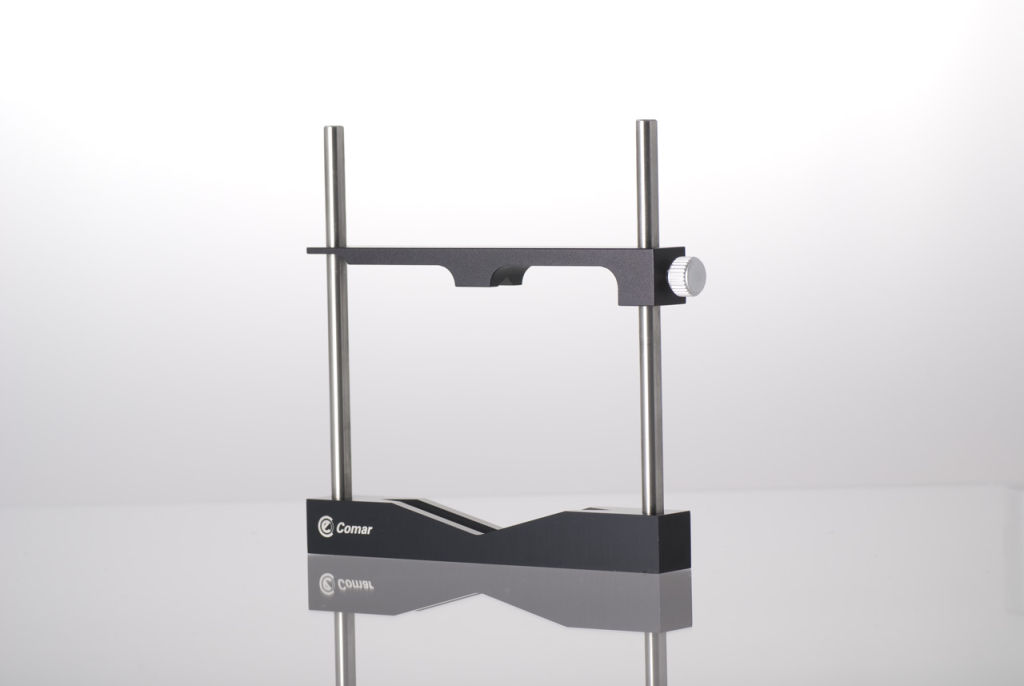

| 124 BR 00 | - | 100 | M6 | - | - | - | Basic range | Direct mount holder (without post) | £40.05 | ||||

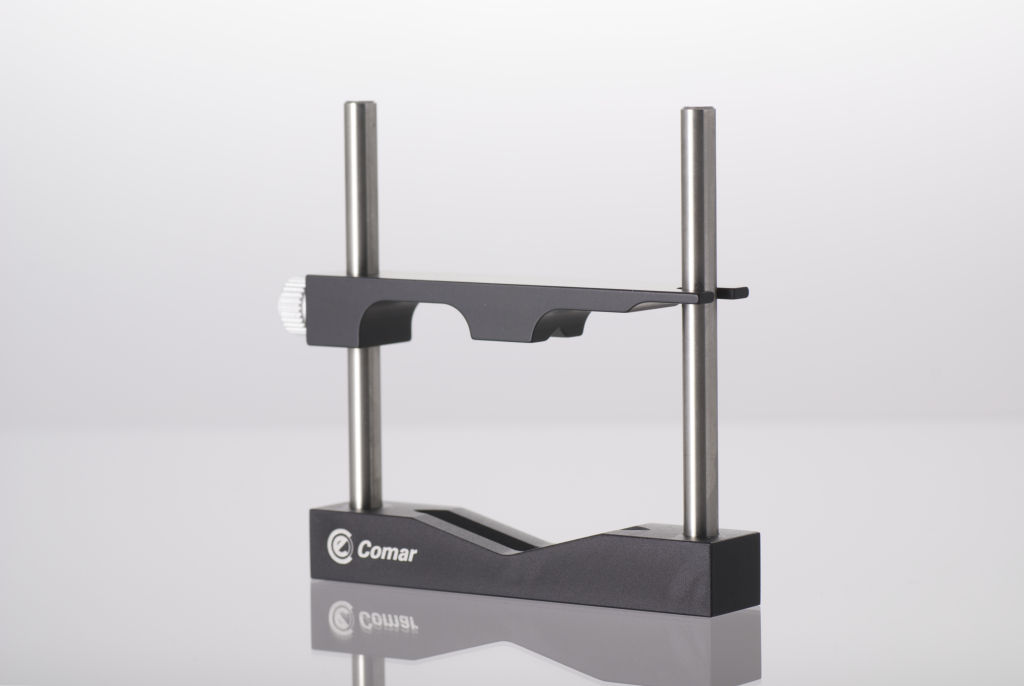

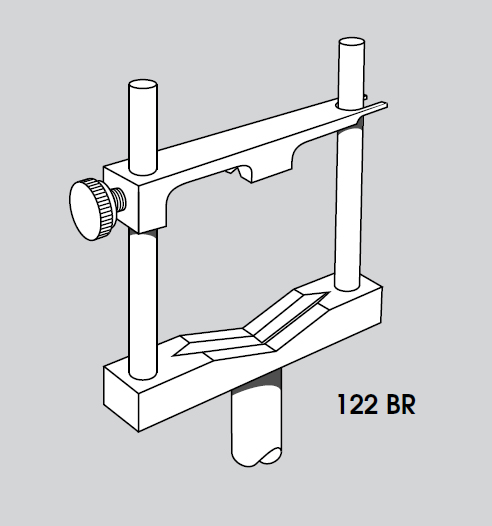

| 122 BR 00 | - | 64 | M6 | - | - | - | Basic range | Direct mount holder (without post) | £37.03 | ||||
For more information regarding stock availability icons, please see our shipping page.
