Micrometer heads
Description

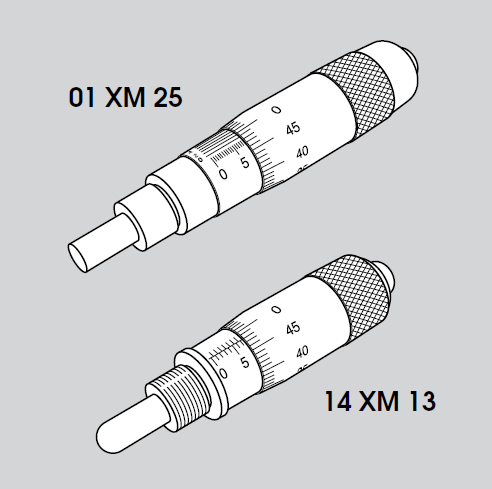

Micrometer heads are useful for special optomechanical assemblies, or any device requiring precise adjustments. Standard heads read to 0.01mm and vernier models to 0.001mm.
Mounting is either by clamping of a plain diameter or by a 10mm diameter thread, and spindles are available with flat or hemispherical ends.
All have the standard 0.5mm pitch thread; for even more delicate adjustments, see Precision Screws.

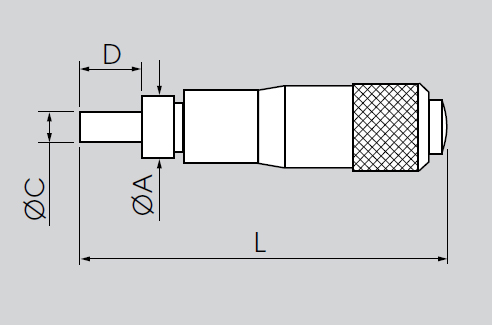

| Item code | Range (mm) | Overall Length L(mm) | Mounting Diameter A(mm) | Spindle Diameter C(mm) | Spindle Projection D(mm) | Spindle End Form | Type/Resolution | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

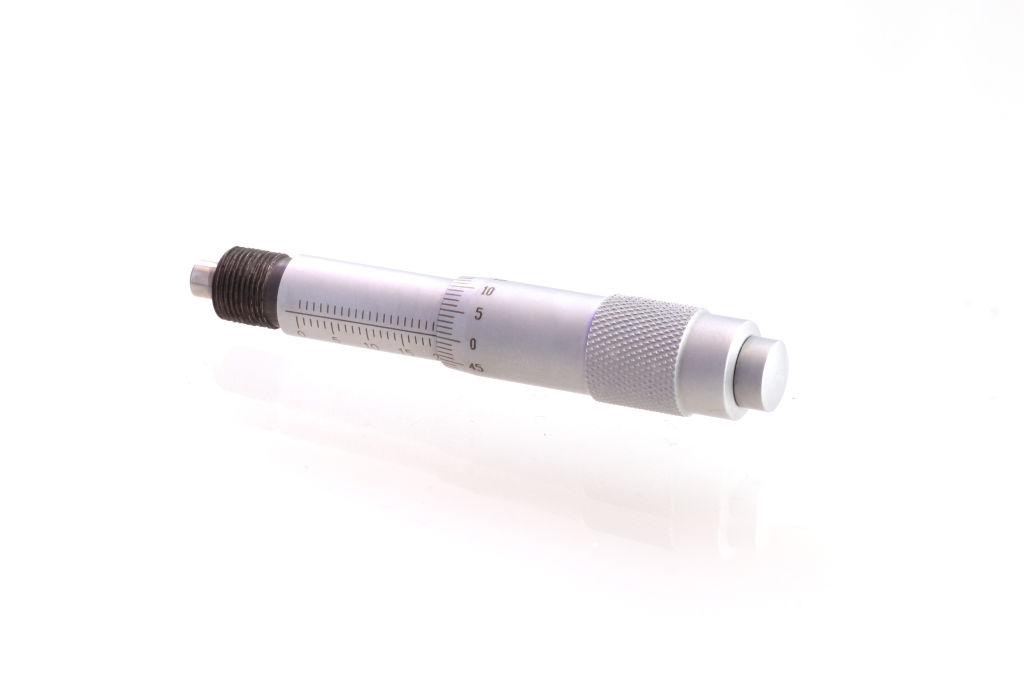

| 14 XM 25 | 25 | 82 | M10 x 0.75 | 5 | 0-25 | Sph. | Plane/ 0.01mm | £31.58 | ||||

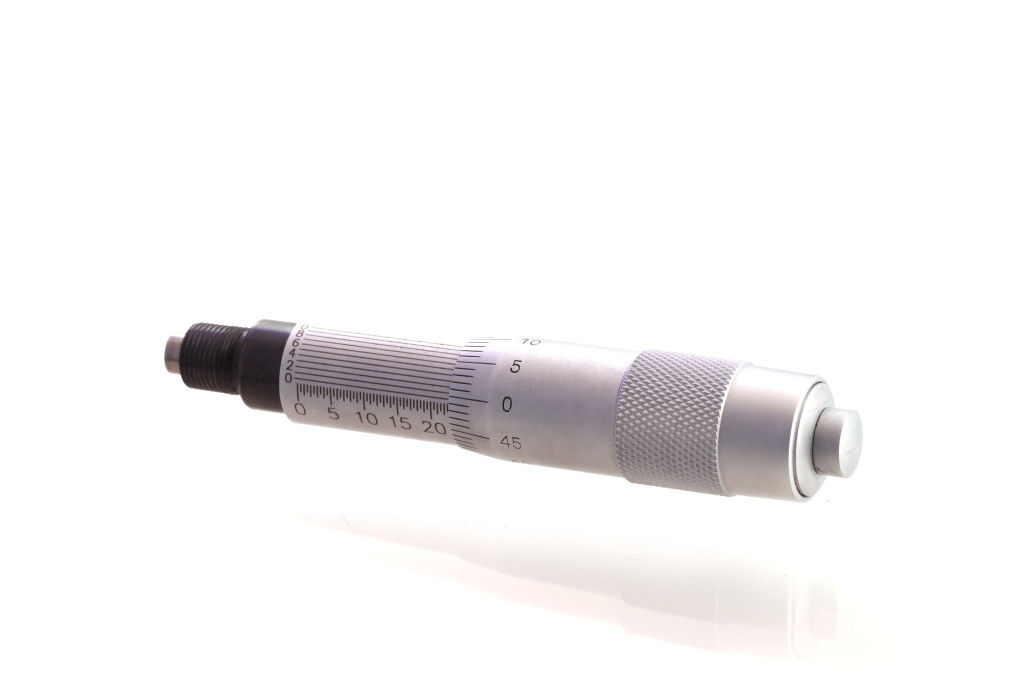

| 04 XM 25 | 25 | 101.5 | M10 x 0.75 | 6 | 0-25 | Plane | Vernier/ 0.001mm | £37.51 | ||||

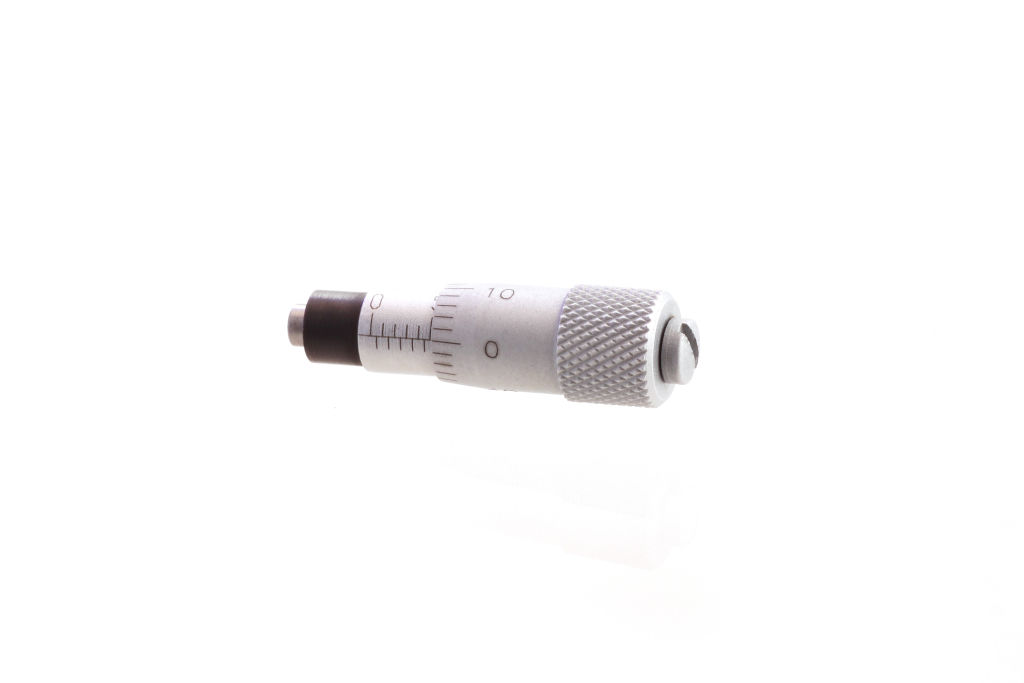

| 11 XM 06 | 6.5 | 34 | 6 | 3.5 | 0-6.5 | Plane | Plane/ 0.01mm | £31.58 | ||||

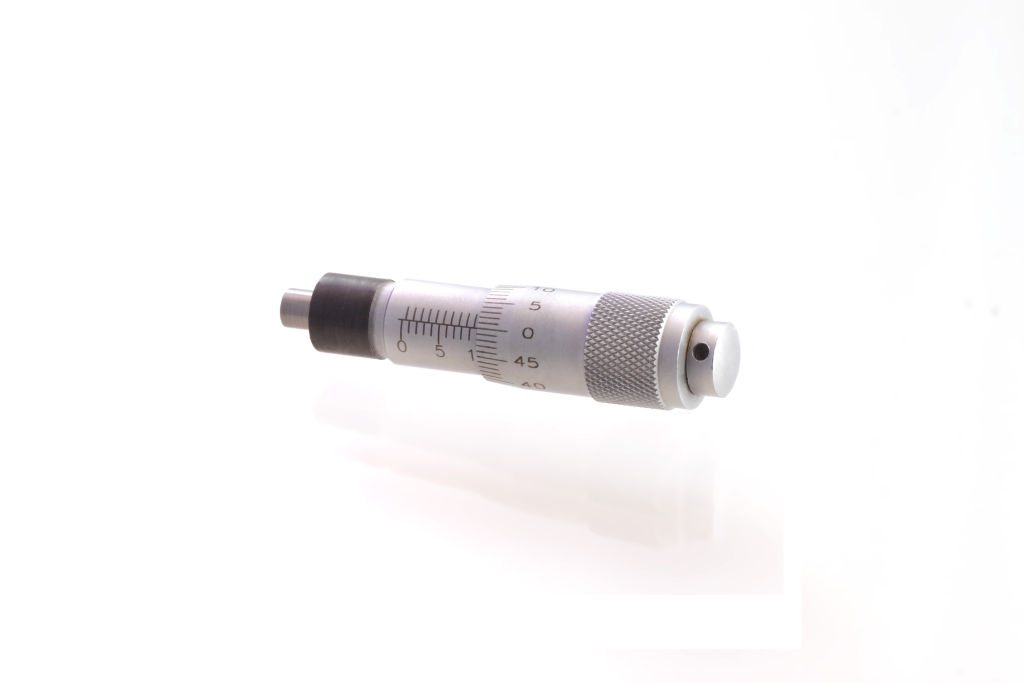

| 11 XM 13 | 13 | 57 | 10 | 5 | 0-13 | Plane | Plane/ 0.01mm | £30.98 | ||||

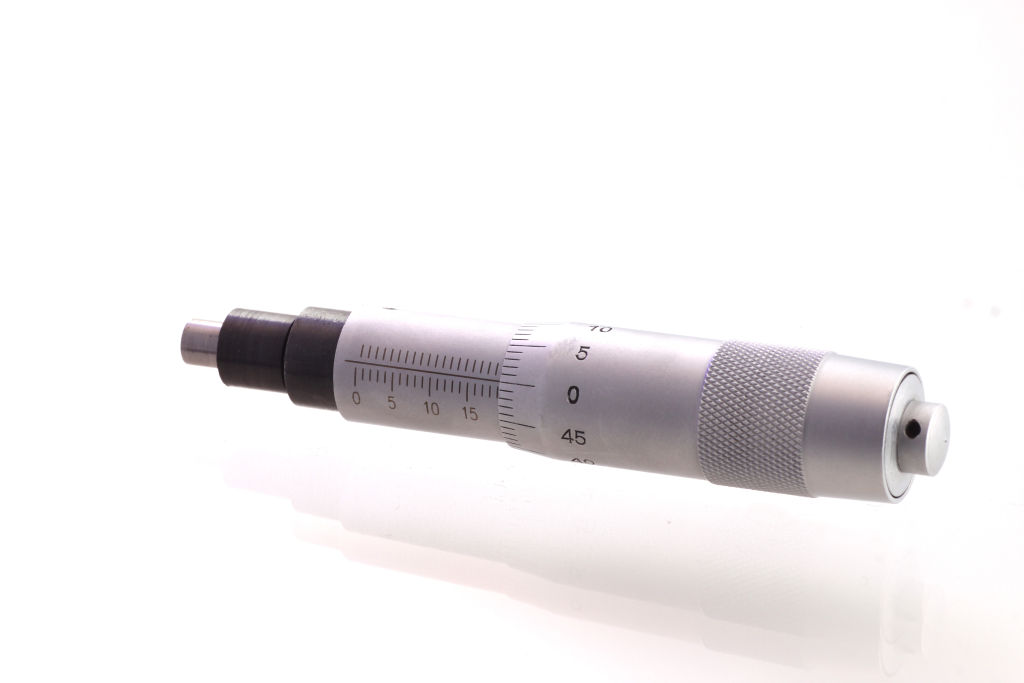

| 11 XM 25 | 25 | 101.5 | 10 | 6 | 0-25 | Plane | Plane/ 0.01mm | £31.58 | ||||

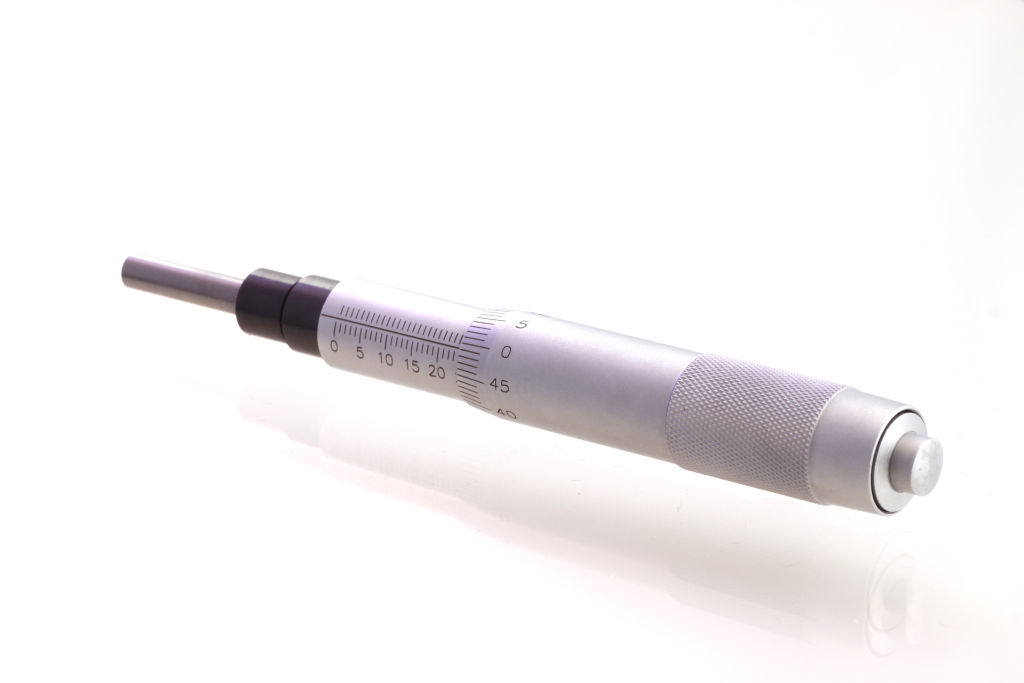

| 11 XM 50 | 50 | 150 | 11 | 6 | 0-50 | Plane | Plane/ 0.01mm | £66.31 | ||||

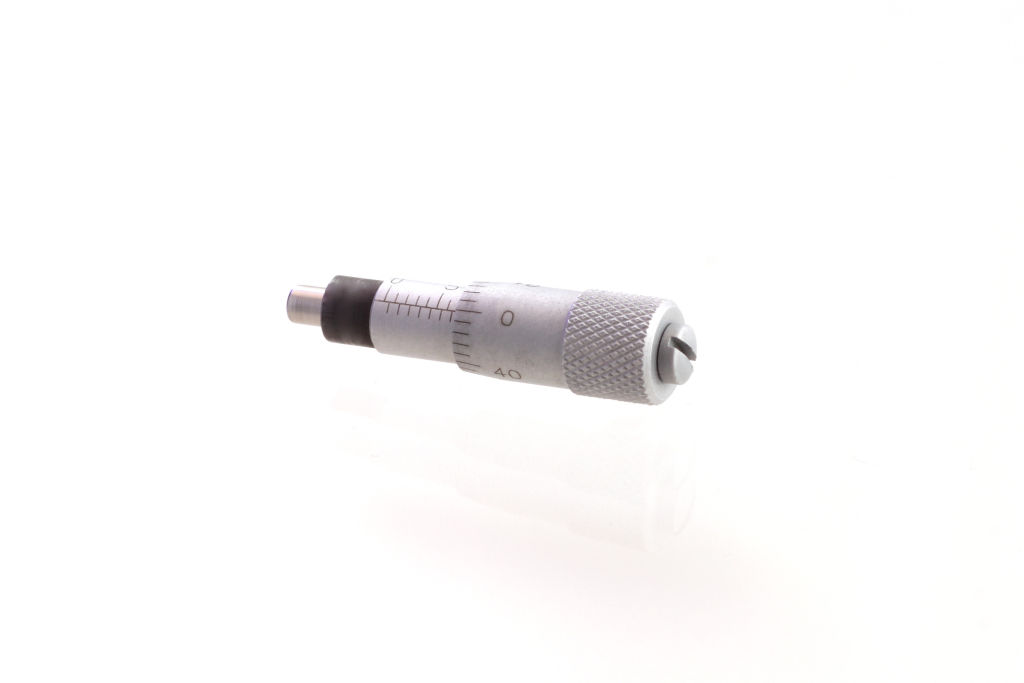

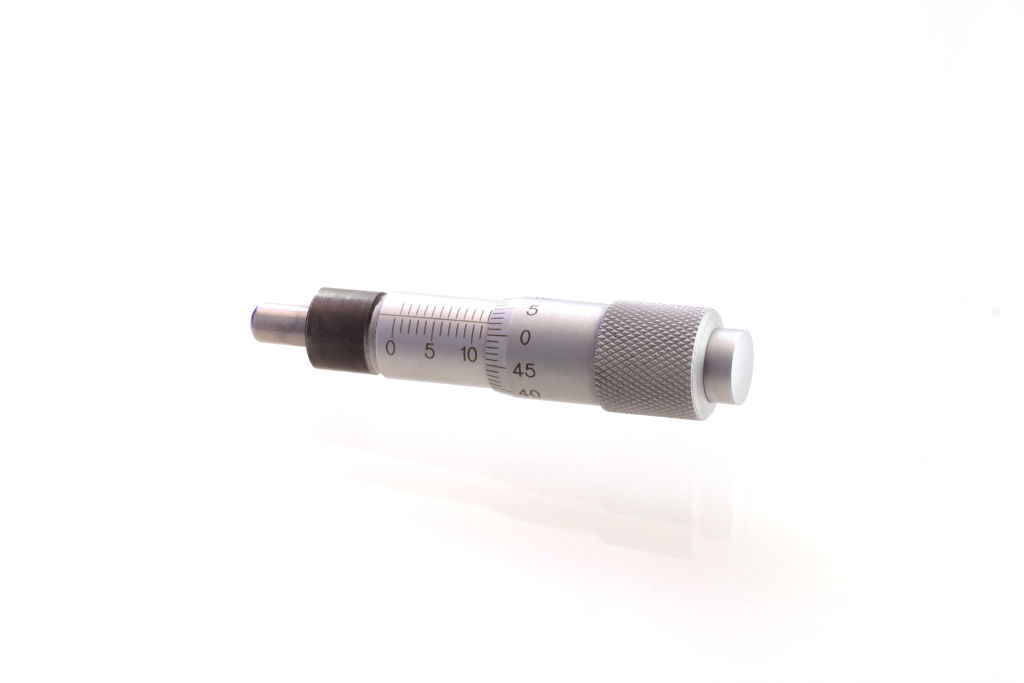

| 12 XM 06 | 6.5 | 38.6 | 6 | 3.5 | 5-11.5 | Sph. | Plane/ 0.01mm | £31.58 | ||||
| 12 XM 13 | 13 | 60 | 10 | 5 | Mar-16 | Sph. | Plane/ 0.01mm | £30.98 | ||||

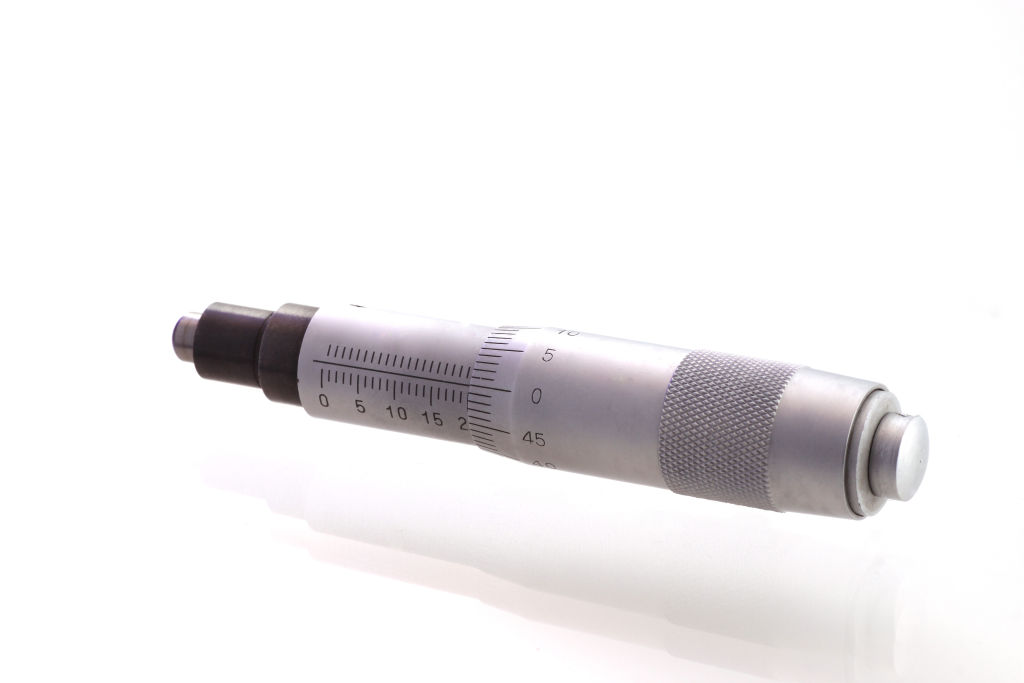

| 12 XM 25 | 25 | 101.5 | 10 | 6.5 | 0-25 | Sph. | Plane/ 0.01mm | £31.58 | ||||

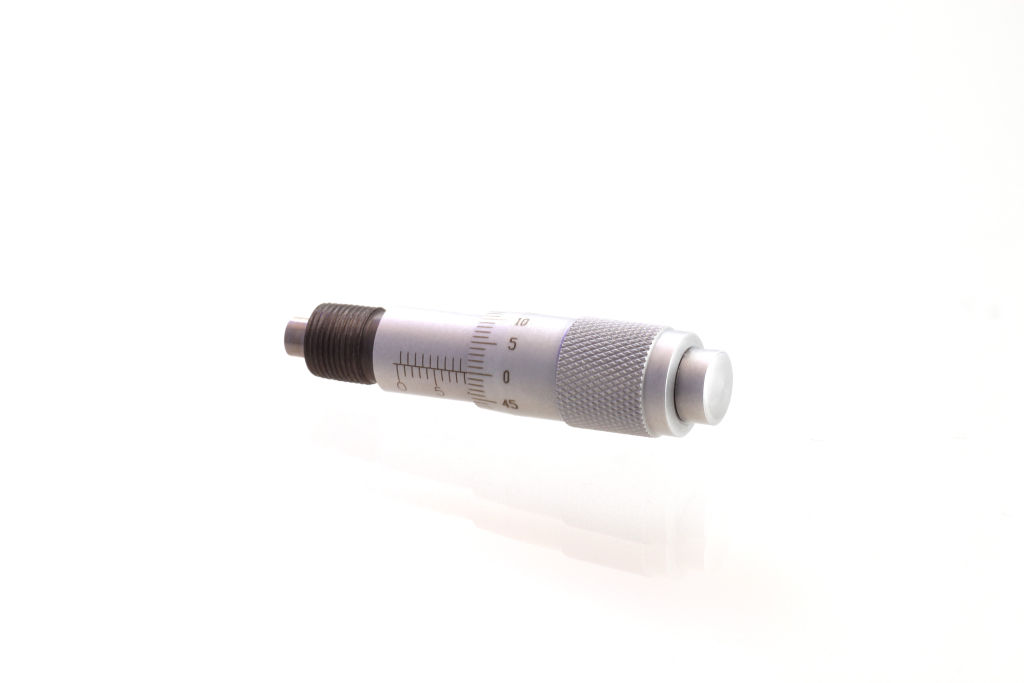

| 13 XM 13 | 13 | 57 | M10 x 0.75 | 5 | 0-13 | Plane | Plane/ 0.01mm | £30.98 | ||||

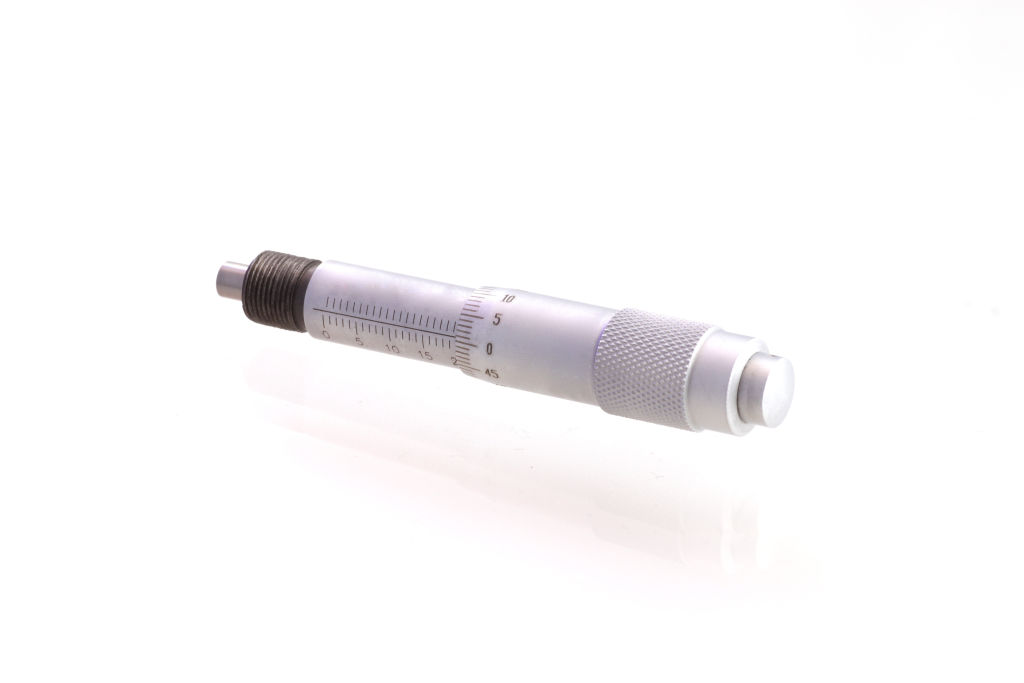

| 13 XM 25 | 25 | 82 | M10 x 0.75 | 5 | 0-25 | Plane | Plane/ 0.01mm | £31.58 | ||||

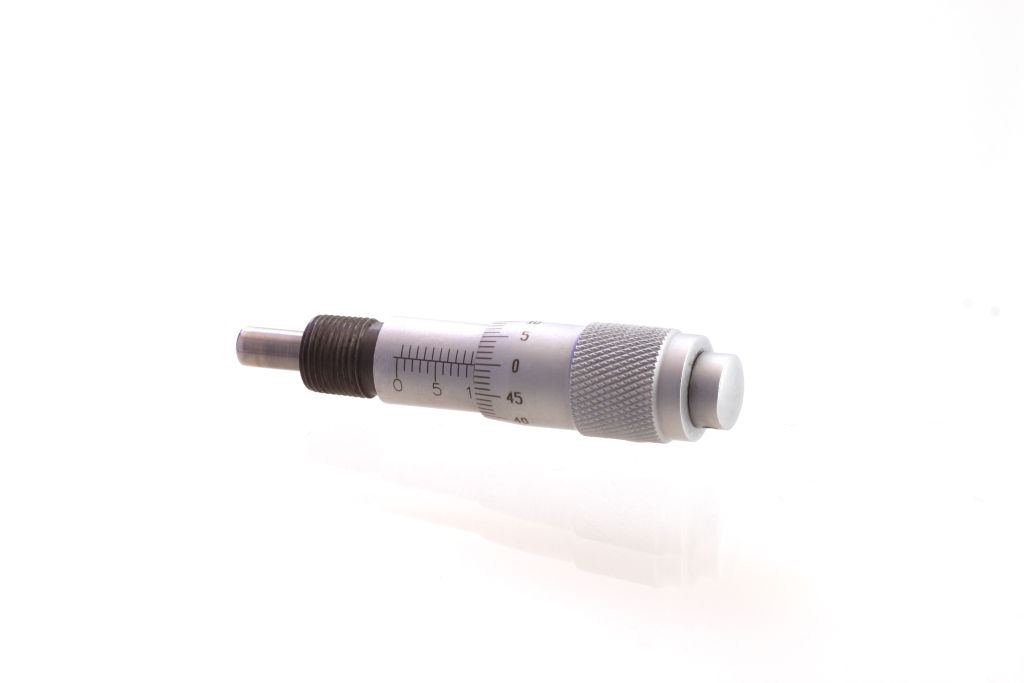

| 14 XM 13 | 13 | 64.5 | M10 x 0.75 | 5 | Jul-20 | Sph. | Plane/ 0.01mm | £30.98 | ||||

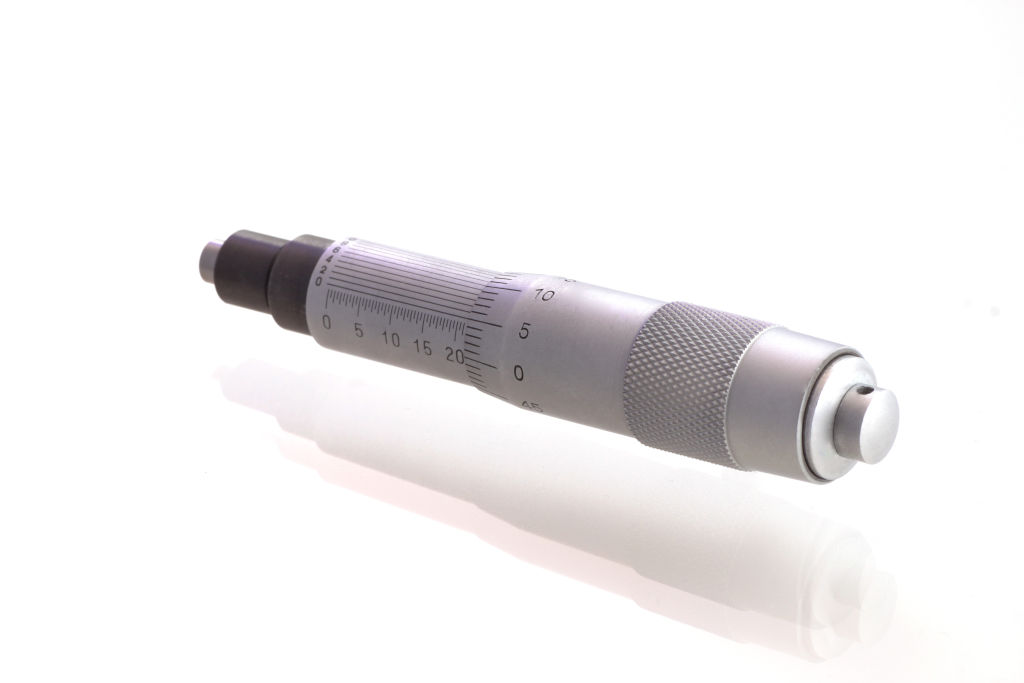

| 01 XM 25 | 25 | 101.5 | 10 | 6 | 0-25 | Plane | Vernier/ 0.001mm | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
