Posts
Description

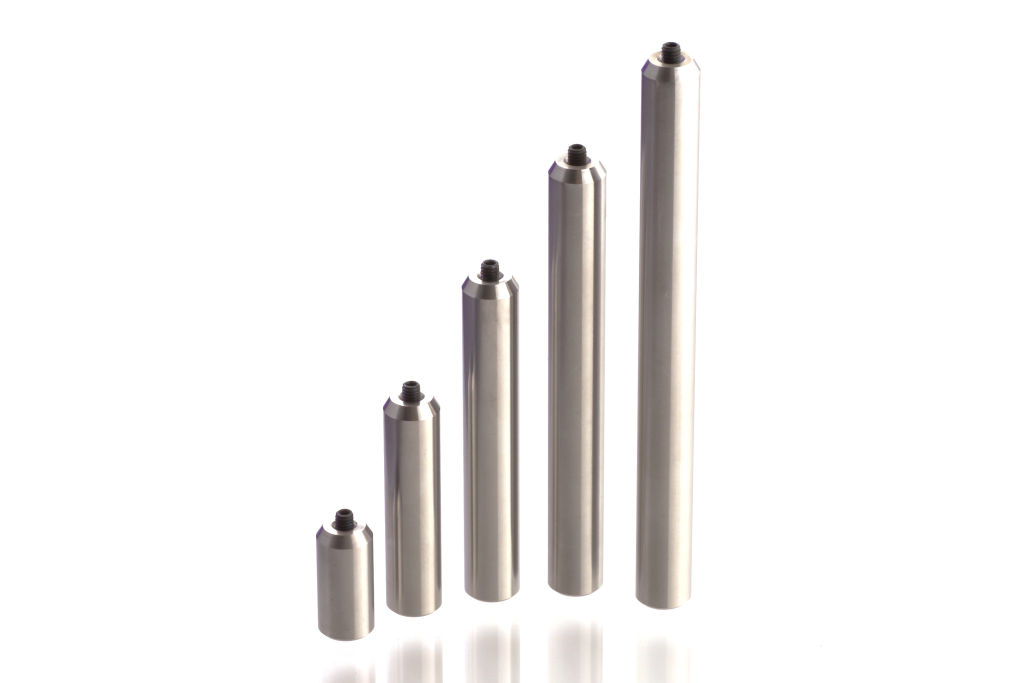

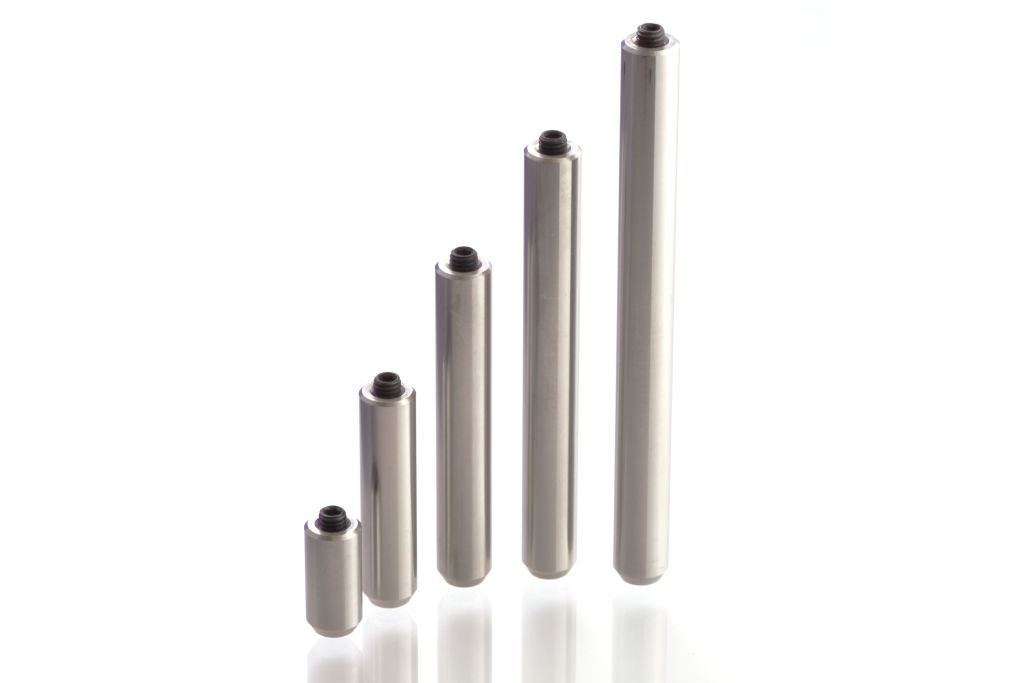

Stainless steel posts are listed in six lengths with M4 or M6 male threads to fit our component holders, and also with Unified threads for holders of other makes. All are available in four diameters to suit different postholders. Collars can be added to any postmounted item to allow it to be rotated, or removed and replaced, at the same height. Cross clamps allow posts to be connected at right angles. The rotation adaptor can be inserted below any component holder with M6 thread, allowing it to be freely rotated through 360°, then clamped and fine-adjusted through 30° range with a tangent screw.
| Item code | Length excluding thread (mm) | Height (mm) | Post diameter (mm) | Description | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|

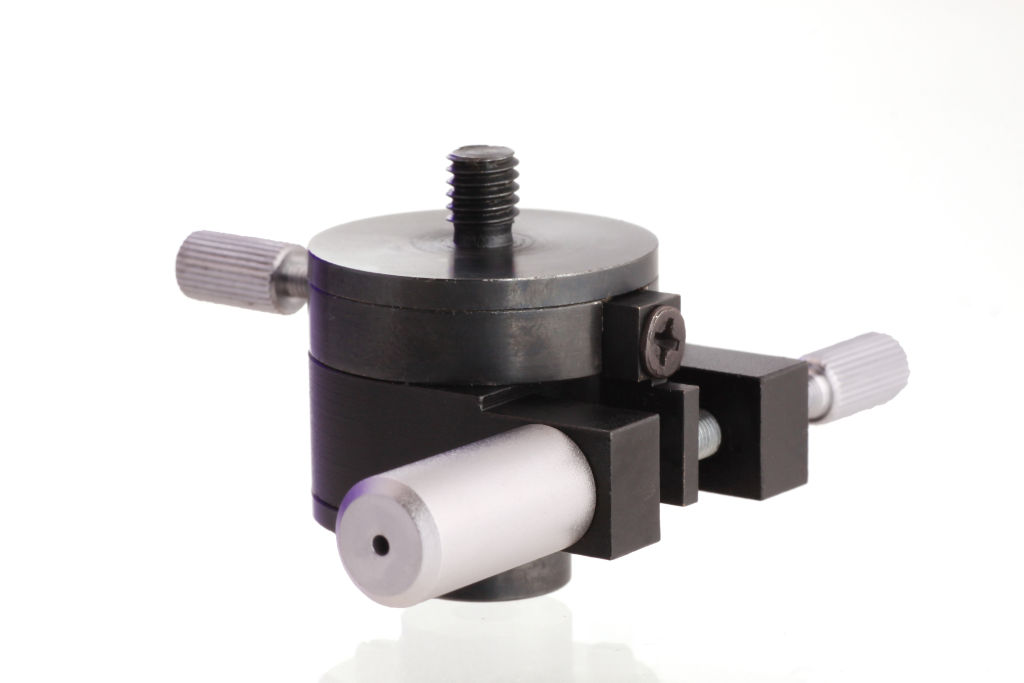

| 110 BR 06 | - | 27.5 | - | Rotation adaptor (M6) | £50.46 | ||||
| 25 BR 13 | 75 | - | 12.7 | Stainless steel post with 8-32 thread | £7.14 | ||||
| 55 BR 13 | 125 | - | 12.7 | Stainless steel post with 8-32 thread | £8.35 | ||||
| 25 BR 14 | 75 | - | 13.7 | Stainless steel post with 8-32 thread | £7.14 | ||||
| 55 BR 14 | 125 | - | 13.7 | Stainless steel post with 8-32 thread | £8.35 | ||||
| 27 BR 10 | 75 | - | 10 | Stainless steel post with ¼"-20 thread | £7.14 | ||||
| 57 BR 10 | 125 | - | 10 | Stainless steel post with ¼"-20 thread | £8.35 | ||||
| 27 BR 12 | 75 | - | 12 | Stainless steel post with ¼"-20 thread | £7.14 | ||||
| 57 BR 12 | 125 | - | 12 | Stainless steel post with ¼"-20 thread | £8.35 | ||||
| 55 BR 12 | 125 | - | 12 | Stainless steel post with 8-32 thread | £8.35 | ||||
| 25 BR 12 | 75 | - | 12 | Stainless steel post with 8-32 thread | £7.14 | ||||
| 16 BR 14 | 50 | - | 13.7 | Stainless steel post with M6 thread | £6.17 | ||||
| 26 BR 14 | 75 | - | 13.7 | Stainless steel post with M6 thread | £7.14 | ||||
| 36 BR 14 | 100 | - | 13.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 46 BR 14 | 115 | - | 13.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 56 BR 14 | 125 | - | 13.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 66 BR 14 | 150 | - | 13.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 25 BR 10 | 75 | - | 10 | Stainless steel post with 8-32 thread | £7.14 | ||||
| 55 BR 10 | 125 | - | 10 | Stainless steel post with 8-32 thread | £8.35 | ||||
| 27 BR 13 | 75 | - | 12.7 | Stainless steel post with ¼"-20 thread | £7.14 | ||||
| 57 BR 13 | 125 | - | 12.7 | Stainless steel post with ¼"-20 thread | £8.35 | ||||
| 04 BR 10 | 25 | - | 10 | Stainless steel post with M4 thread | £6.17 | ||||
| 04 BR 12 | 25 | - | 12 | Stainless steel post with M4 thread | TBA | Send us a stock query | |||
| 04 BR 13 | 25 | - | 12.7 | Stainless steel post with M4 thread | £6.17 | ||||
| 04 BR 14 | 25 | - | 13.7 | Stainless steel post with M4 thread | £6.17 | ||||
| 06 BR 10 | 25 | - | 10 | Stainless steel post with M6 thread | £6.17 | ||||
| 06 BR 12 | 25 | - | 12 | Stainless steel post with M6 thread | £6.17 | ||||
| 06 BR 13 | 25 | - | 12.7 | Stainless steel post with M6 thread | £6.17 | ||||
| 06 BR 14 | 25 | - | 13.7 | Stainless steel post with M6 thread | £6.17 | ||||

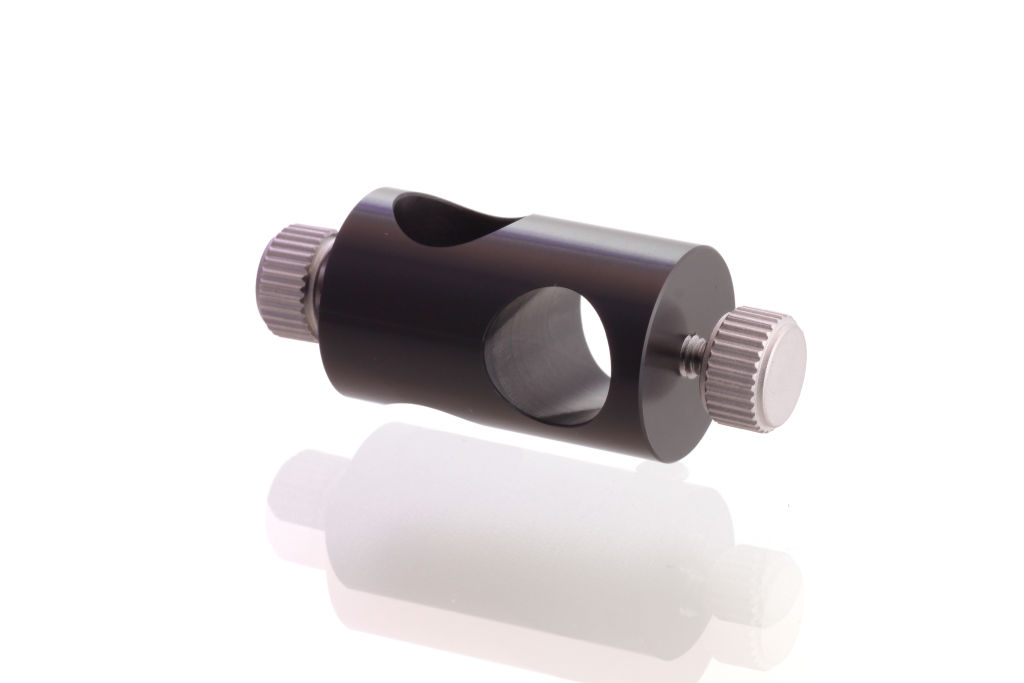

| 105 BR 14 | - | - | 13.7 | Cross clamp for 2 posts | £13.79 | ||||

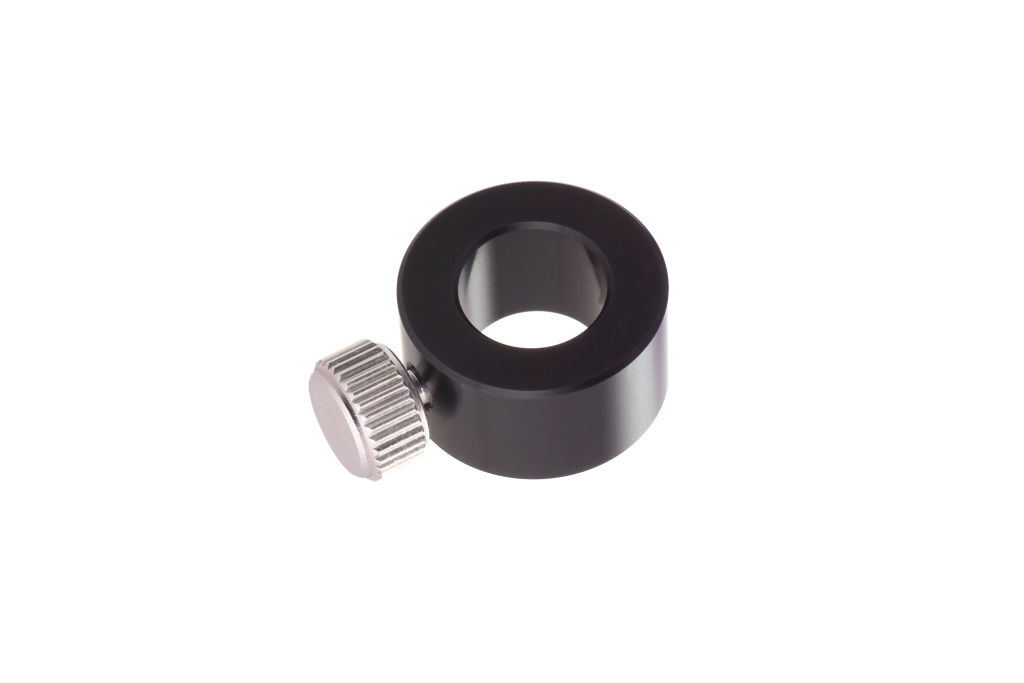

| 100 BR 14 | - | 12 | 13.7 | Collar with clamp screw | £7.14 | ||||
| 27 BR 14 | 75 | - | 13.7 | Stainless steel post with | £7.14 | ||||
| 57 BR 14 | 125 | - | 13.7 | Stainless steel post with | £8.35 | ||||
| 100 BR 10 | - | 12 | 10 | Collar with clamp screw | £7.14 | ||||
| 105 BR 10 | - | - | 10 | Cross clamp for 2 posts | £13.79 | ||||
| 100 BR 12 | - | 12 | 12 | Collar with clamp screw | £7.14 | ||||
| 105 BR 12 | - | - | 12 | Cross clamp for 2 posts | £13.79 | ||||
| 100 BR 13 | - | 12 | 12.7 | Collar with clamp screw | £7.14 | ||||
| 105 BR 13 | - | - | 12.7 | Cross clamp for 2 posts | £13.79 | ||||
| 64 BR 14 | 150 | - | 13.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 54 BR 14 | 125 | - | 13.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 44 BR 14 | 115 | - | 13.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 26 BR 10 | 75 | - | 10 | Stainless steel post with M6 thread | £7.14 | ||||
| 16 BR 10 | 50 | - | 10 | Stainless steel post with M6 thread | TBA | Send us a stock query | |||
| 64 BR 10 | 150 | - | 10 | Stainless steel post with M4 thread | £8.35 | ||||
| 54 BR 10 | 125 | - | 10 | Stainless steel post with M4 thread | £8.35 | ||||
| 44 BR 10 | 115 | - | 10 | Stainless steel post with M4 thread | £8.35 | ||||
| 34 BR 10 | 100 | - | 10 | Stainless steel post with M4 thread | £8.35 | ||||
| 24 BR 10 | 75 | - | 10 | Stainless steel post with M4 thread | £7.14 | ||||
| 14 BR 10 | 50 | - | 10 | Stainless steel post with M4 thread | £6.17 | ||||
| 36 BR 10 | 100 | - | 10 | Stainless steel post with M6 thread | £8.35 | ||||
| 46 BR 10 | 115 | - | 10 | Stainless steel post with M6 thread | £8.35 | ||||
| 54 BR 13 | 125 | - | 12.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 44 BR 13 | 115 | - | 12.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 34 BR 13 | 100 | - | 12.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 24 BR 13 | 75 | - | 12.7 | Stainless steel post with M4 thread | £7.14 | ||||
| 14 BR 13 | 50 | - | 12.7 | Stainless steel post with M4 thread | £6.17 | ||||
| 66 BR 12 | 150 | - | 12 | Stainless steel post with M6 thread | £8.35 | ||||
| 56 BR 12 | 125 | - | 12 | Stainless steel post with M6 thread | £8.35 | ||||
| 46 BR 12 | 115 | - | 12 | Stainless steel post with M6 thread | £8.35 | ||||
| 36 BR 12 | 100 | - | 12 | Stainless steel post with M6 thread | TBA | Send us a stock query | |||
| 26 BR 12 | 75 | - | 12 | Stainless steel post with M6 thread | £7.14 | ||||
| 26 BR 13 | 75 | - | 12.7 | Stainless steel post with M6 thread | £7.14 | ||||
| 36 BR 13 | 100 | - | 12.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 46 BR 13 | 115 | - | 12.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 56 BR 13 | 125 | - | 12.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 66 BR 13 | 150 | - | 12.7 | Stainless steel post with M6 thread | £8.35 | ||||
| 14 BR 14 | 50 | - | 13.7 | Stainless steel post with M4 thread | £6.17 | ||||
| 24 BR 14 | 75 | - | 13.7 | Stainless steel post with M4 thread | £7.14 | ||||
| 34 BR 14 | 100 | - | 13.7 | Stainless steel post with M4 thread | £8.35 | ||||
| 16 BR 13 | 50 | - | 12.7 | Stainless steel post with M6 thread | £6.17 | ||||
| 56 BR 10 | 125 | - | 10 | Stainless steel post with M6 thread | £8.35 | ||||
| 16 BR 12 | 50 | - | 12 | Stainless steel post with M6 thread | TBA | Send us a stock query | |||
| 64 BR 12 | 150 | - | 12 | Stainless steel post with M4 thread | £8.35 | ||||
| 54 BR 12 | 125 | - | 12 | Stainless steel post with M4 thread | £8.35 | ||||
| 44 BR 12 | 115 | - | 12 | Stainless steel post with M4 thread | £8.35 | ||||
| 34 BR 12 | 100 | - | 12 | Stainless steel post with M4 thread | £8.35 | ||||
| 24 BR 12 | 75 | - | 12 | Stainless steel post with M4 thread | £7.14 | ||||
| 14 BR 12 | 50 | - | 12 | Stainless steel post with M4 thread | £6.17 | ||||
| 66 BR 10 | 150 | - | 10 | Stainless steel post with M6 thread | £8.35 | ||||
| 64 BR 13 | 150 | - | 12.7 | Stainless steel post with M4 thread | £8.35 | ||||
For more information regarding stock availability icons, please see our shipping page.
