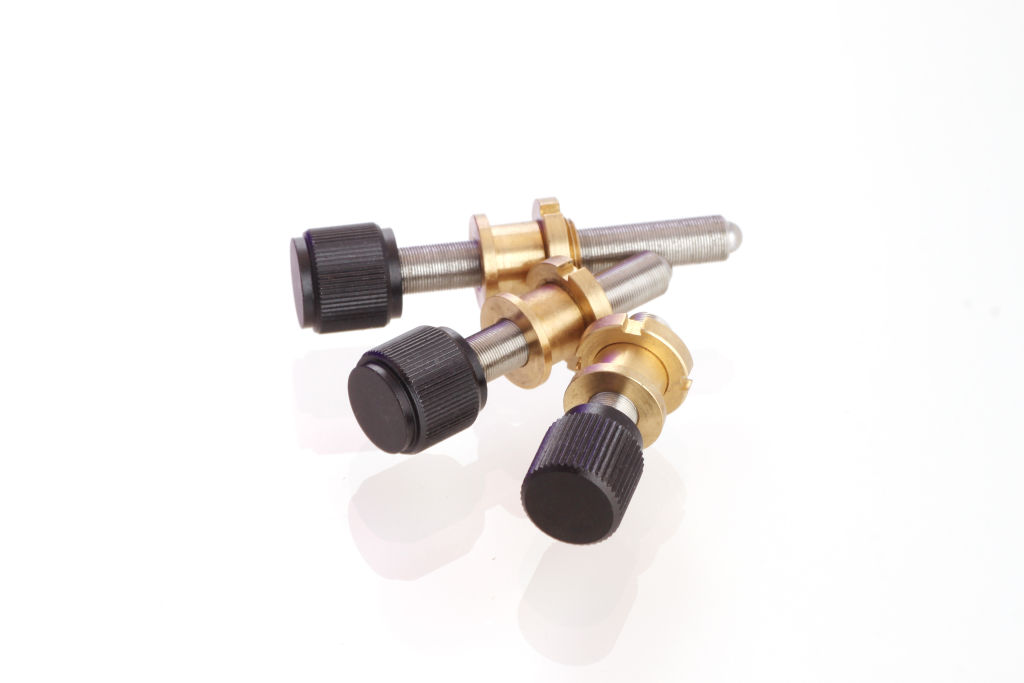

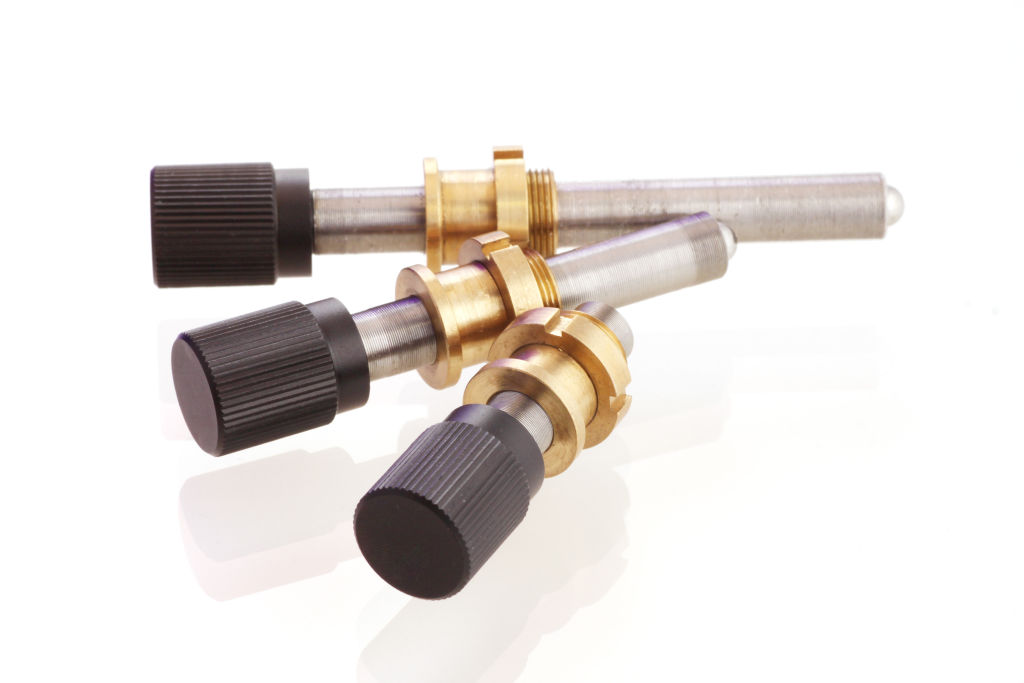

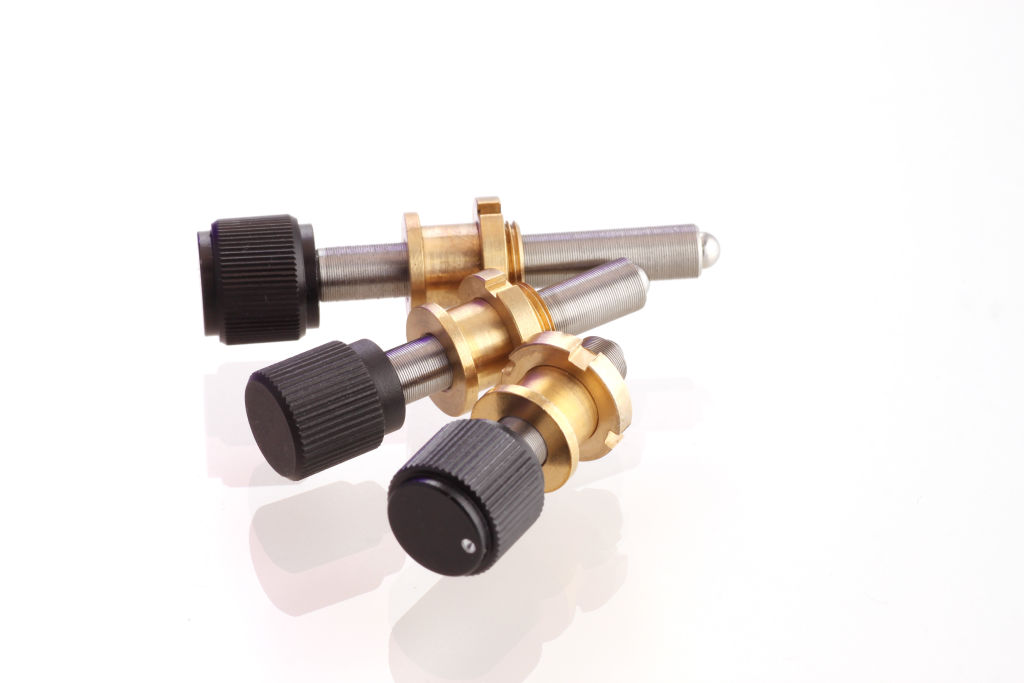

Precision adjusting screws
Description
These very fine pitch screws, supplied ready-assembled in mounting bushes, greatly simplify the construction of precision equipment. The bush has an external thread with clamping nut and is a close fit into a simple reamed hole. They are of all-metal construction with attractive black knurled heads, steel shafts and an inset polished ball at the tip, useful in kinematic designs. The screw threads are a very close fit in their bushes and operate smoothly with no detectable backlash.
| Item code | Thread dia (mm) | Length (mm) | Adjustment range (mm) | Pitch (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|
| 835 XM 50 | 8 | 65 | 50 | 0.35 | £43.68 | ||||
| 635 XM 08 | 6 | 20 | 8 | 0.35 | £20.45 | ||||
| 625 XM 08 | 6 | 20 | 8 | 0.25 | £20.45 | ||||
| 625 XM 18 | 6 | 30 | 18 | 0.25 | £24.20 | ||||
| 625 XM 28 | 6 | 40 | 28 | 0.25 | £24.20 | ||||
| 825 XM 10 | 8 | 25 | 10 | 0.25 | £22.75 | ||||
| 825 XM 30 | 8 | 45 | 30 | 0.25 | £31.58 | ||||
| 825 XM 50 | 8 | 65 | 50 | 0.25 | £43.68 | ||||
| 635 XM 18 | 6 | 30 | 18 | 0.35 | £24.20 | ||||
| 635 XM 28 | 6 | 40 | 28 | 0.35 | TBA | Send us a stock query | |||
| 835 XM 10 | 8 | 25 | 10 | 0.35 | £22.75 | ||||
| 835 XM 30 | 8 | 45 | 30 | 0.35 | £31.58 | ||||
