Precision rotation stages
Description
These stages are very compact, having circular bases of the same diameter as their tables. They have vernier scales reading directly in arc minutes.
The table rotates freely through 360° and can be locked to a fine tangent-screw drive for accurate setting.
The two larger models bolt directly to standard breadboards or tables (M6 holes on 25mm centers); the 76 XT 80 requires adaptor 08 XT 70.
| Item code | Description | Dimensions (mm) | Resolution (minutes) | Screw Size (Clearance) | Centres (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|
| 08 XT 70 | Adaptor plate | 70 x 70 x 8 | - | - | - | £17.55 | ||||

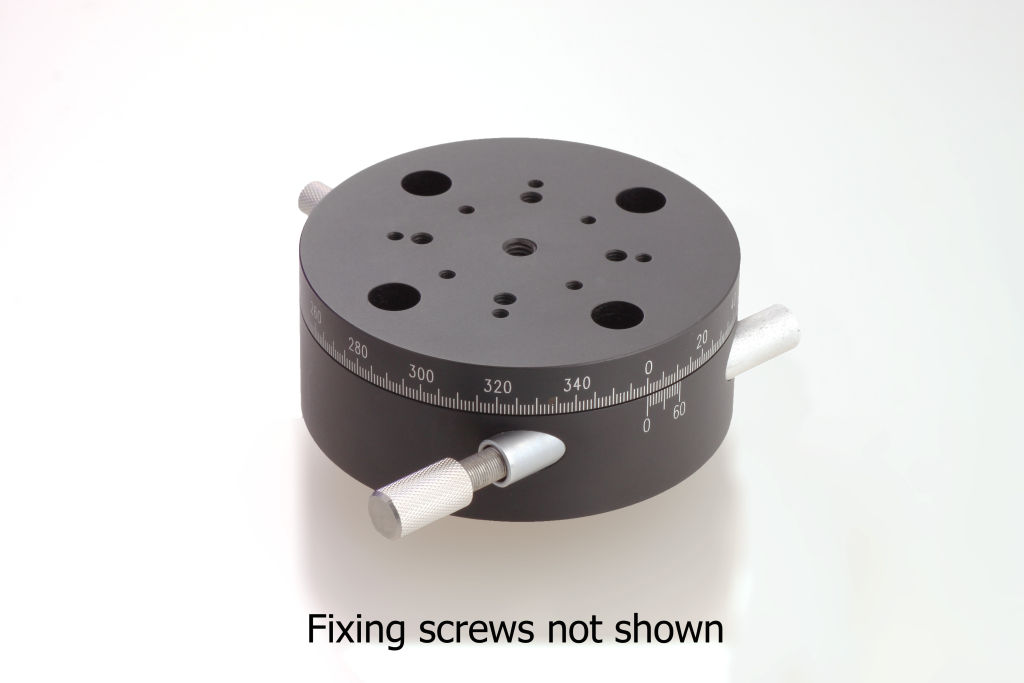

| 76 XT 80 | Stage | 80 dia. | 5 | M4 | 40 x 40 | £301.65 | ||||

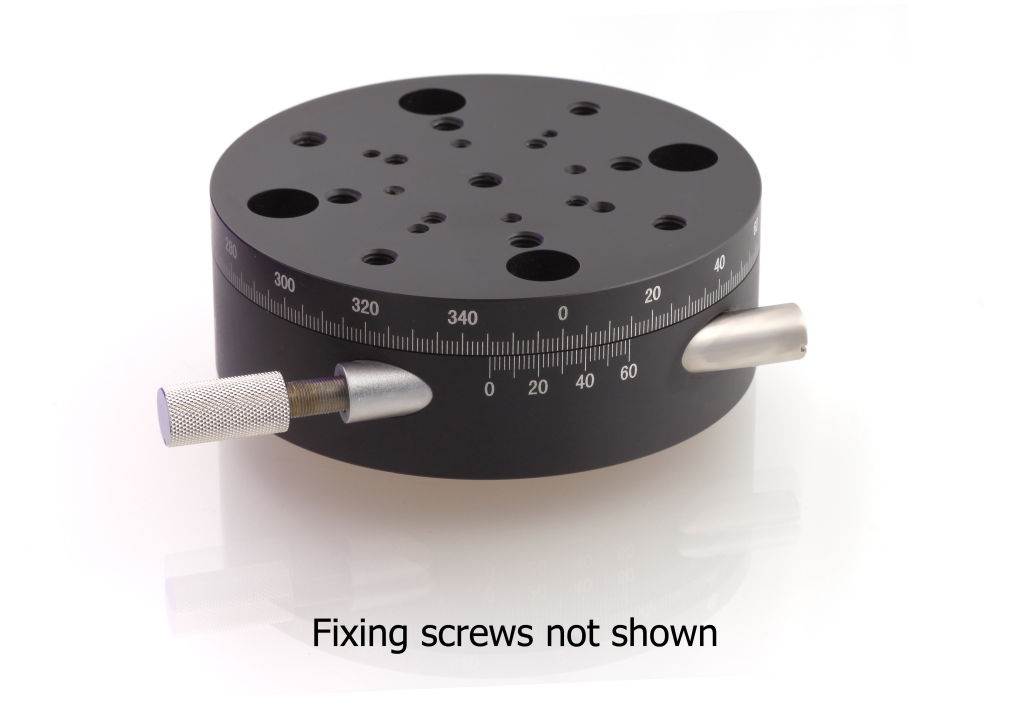

| 76 XT 94 | Stage | 94 dia. | 2 | M6 | 50 x 50 | £319.32 | ||||

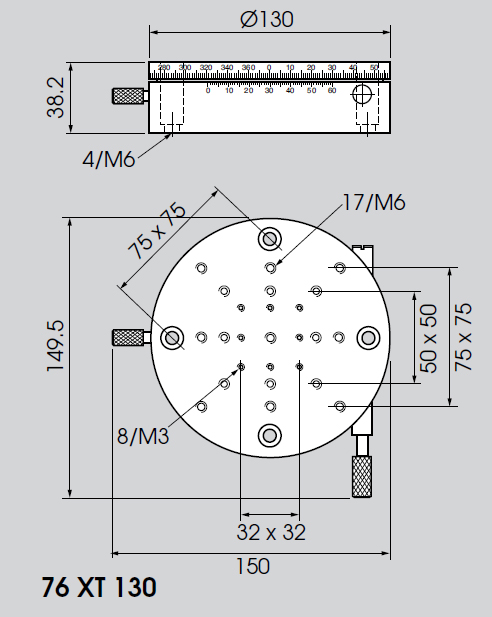

| 76 XT 130 | Stage | 130 dia. | 1 | M6 | 75 x 75 | TBA | Send us a stock query | |||
