Brackets for vertical mounting of stages
Description

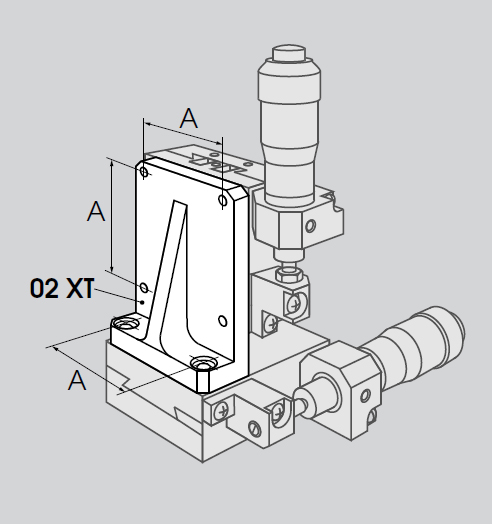

These brackets allow stages to be connected at right angles to other stages with the same hole pattern. The 02 XT 65 will also screw directly to a breadboard or table. They are generally used for translation stages to make up combinations including vertical motions, but other types of stage can also be used. Screws to bolt down the foot of the bracket are supplied.
| Item code | Overall size LxWxH (mm) | Hole size | Hole spacing A (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|

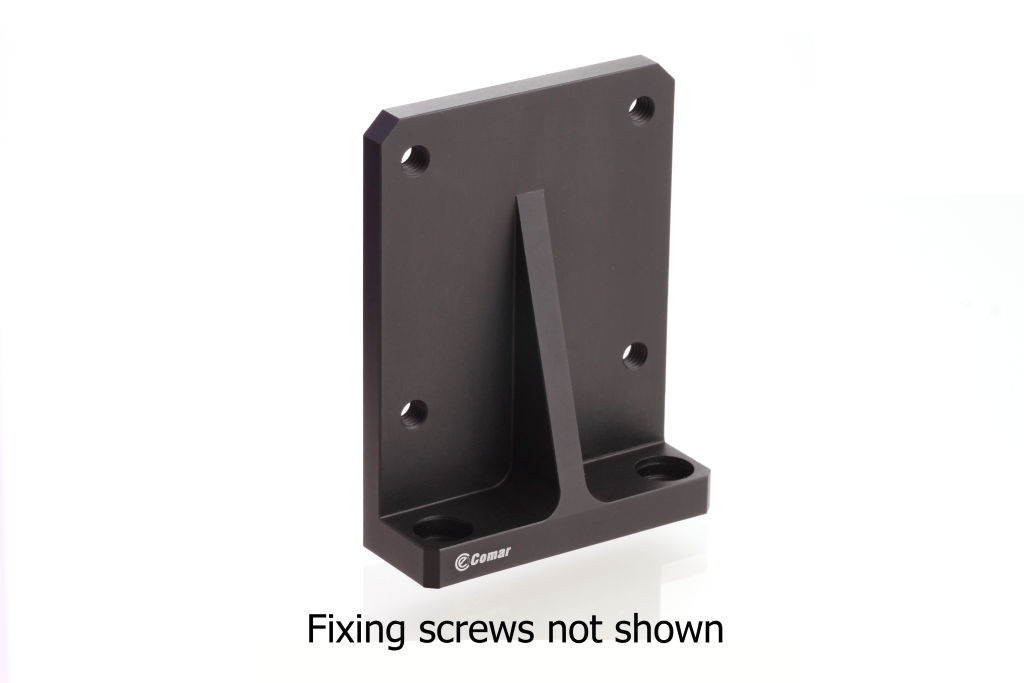

| 02 XT 65 | 65 x 23 x 86 | M6 | 50 | TBA | Send us a stock query | |||

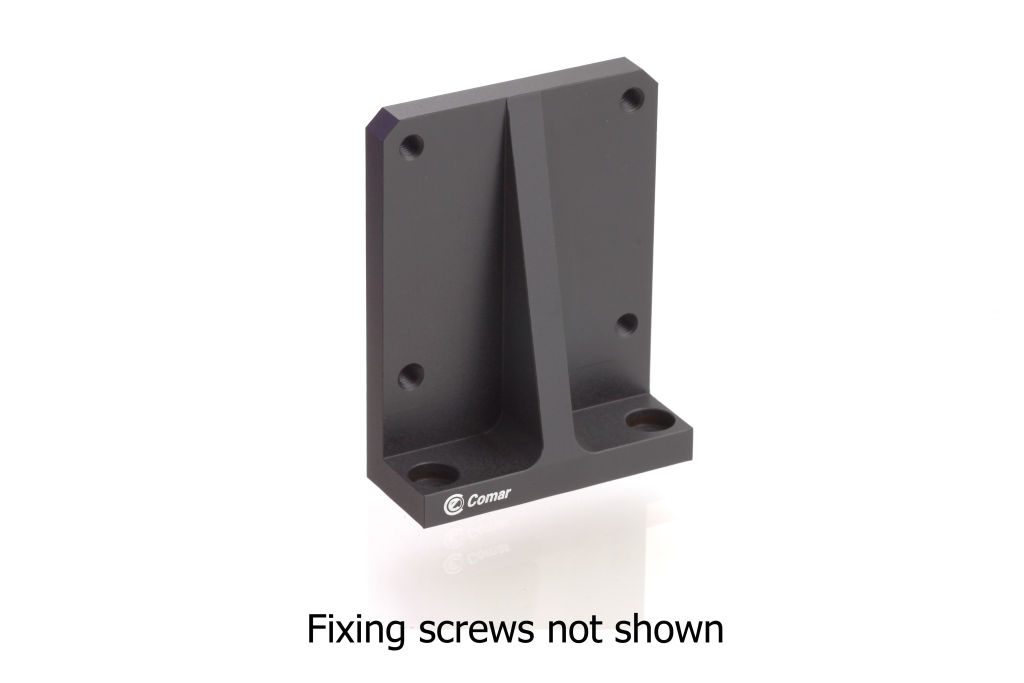

| 02 XT 50 | 50 x 20 x 65 | M4 | 40 | TBA | Send us a stock query | |||

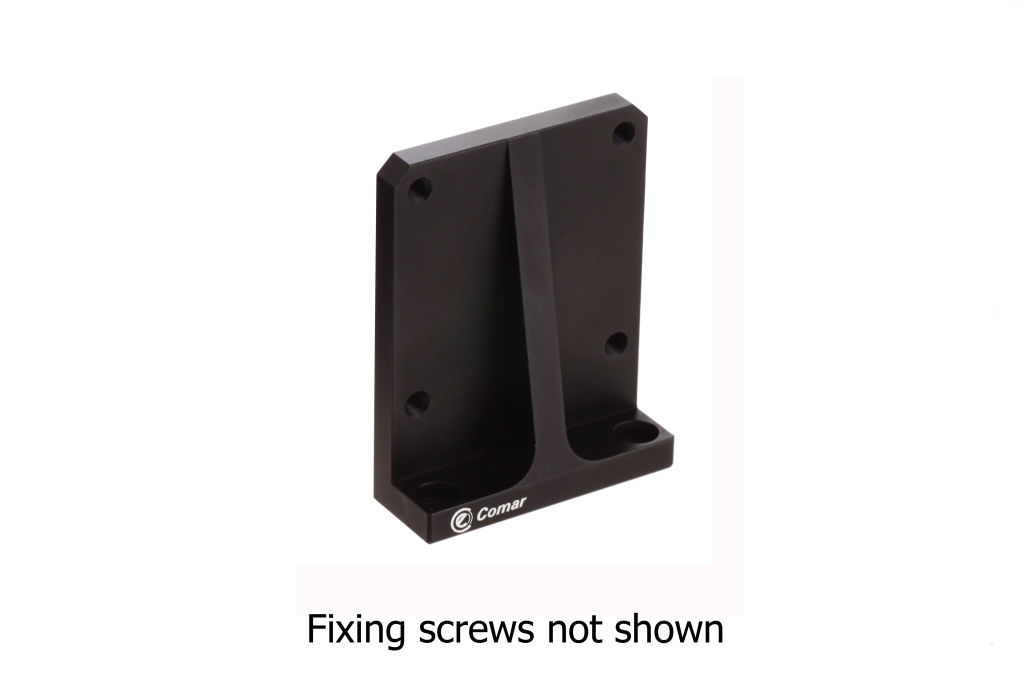

| 02 XT 40 | 40 x 14.5 x 52 | M3 | 32 | TBA | Send us a stock query | |||

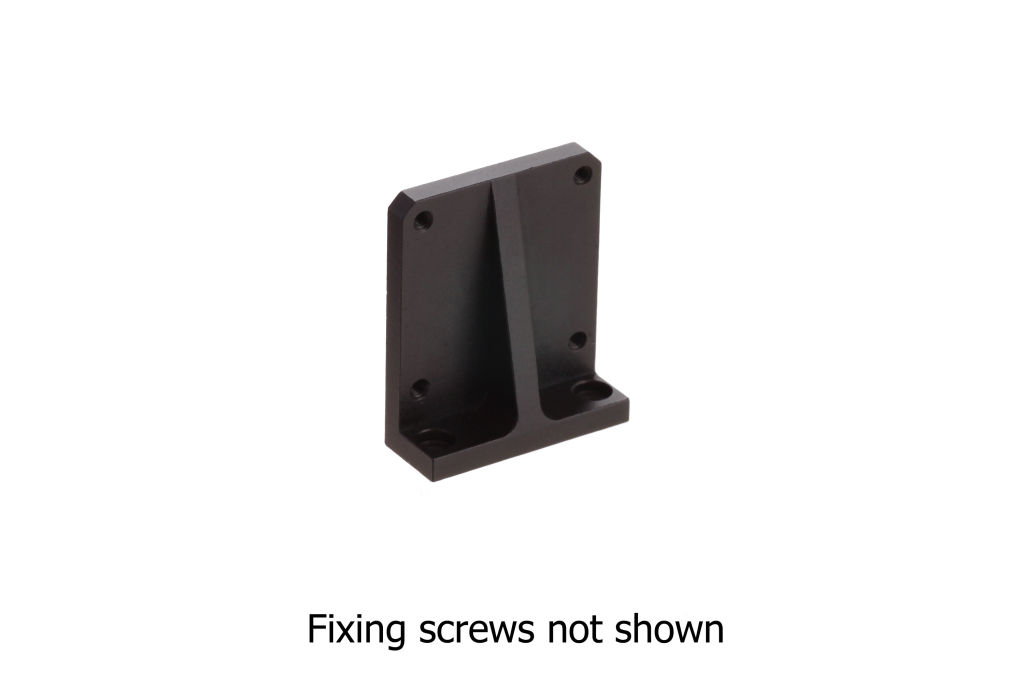

| 02 XT 25 | 25 x 9.2 x 32.5 | M2 | 20 | £18.27 | ||||
