Description

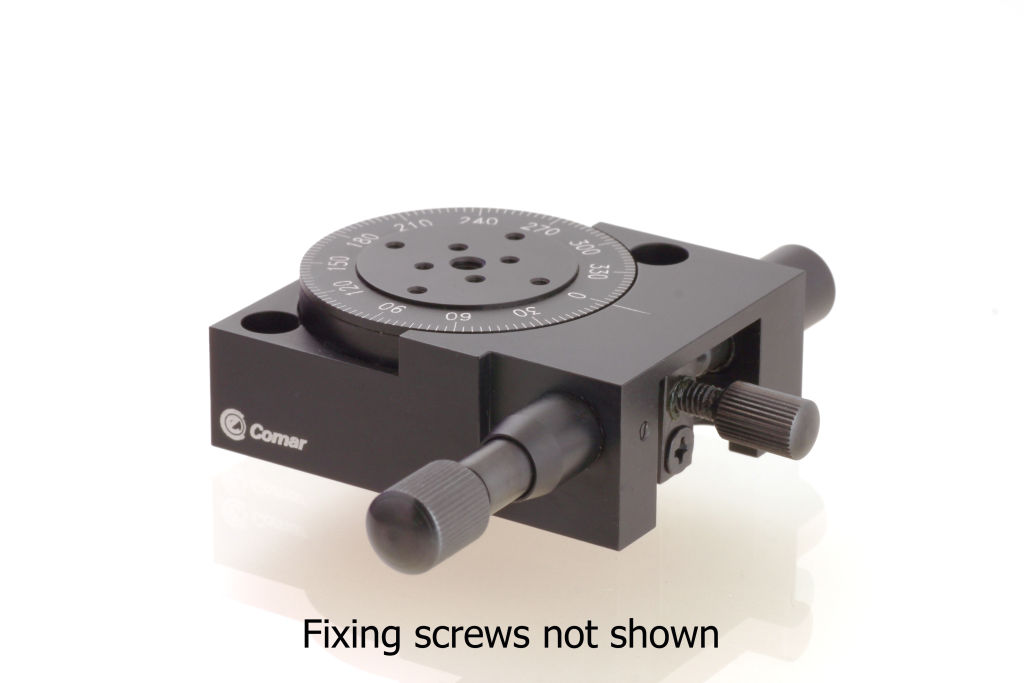

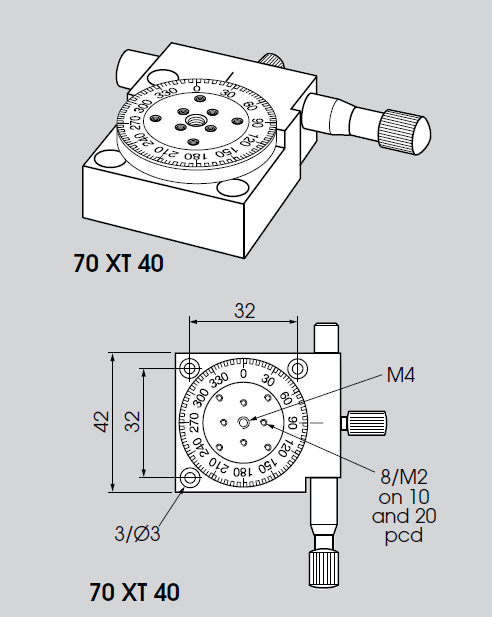

These rotation stages with rectangular bases rotate freely by hand over 360° and can be locked at any angle. This engages a fine tangent screw drive which can then be used for accurate setting.

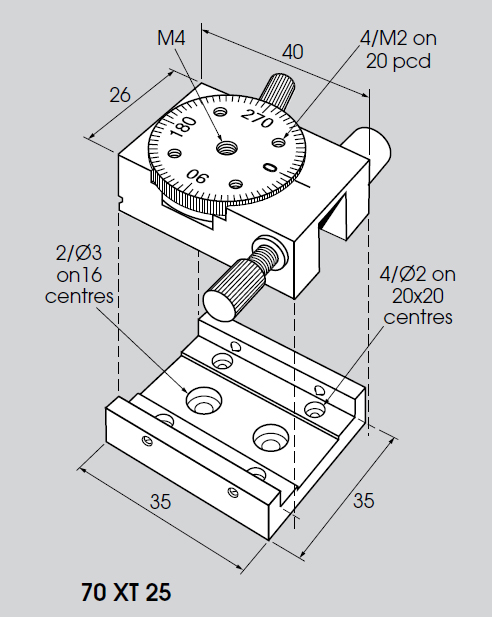

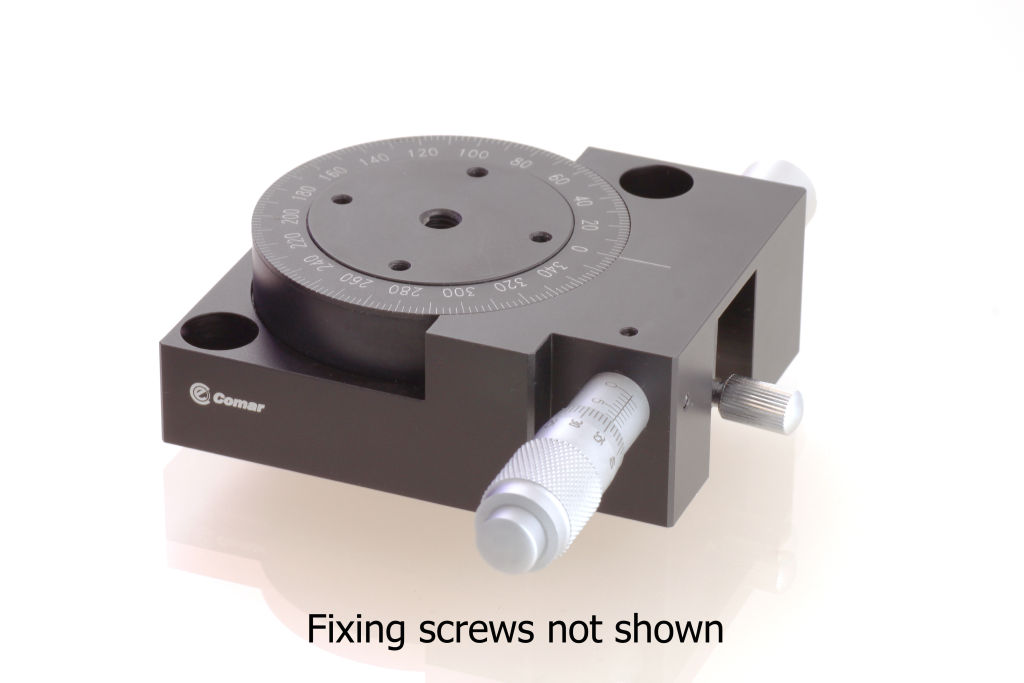

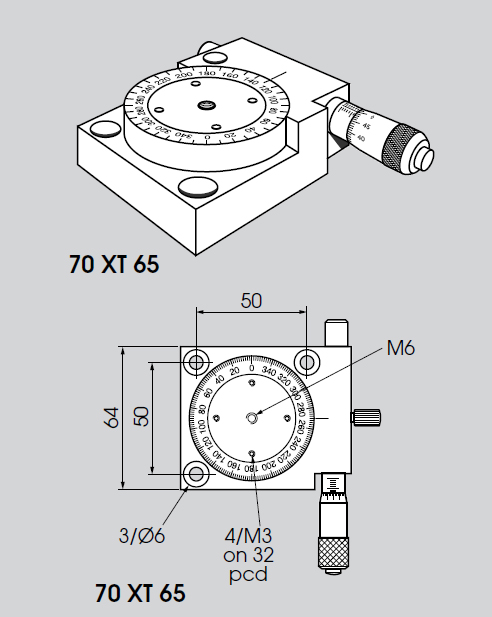

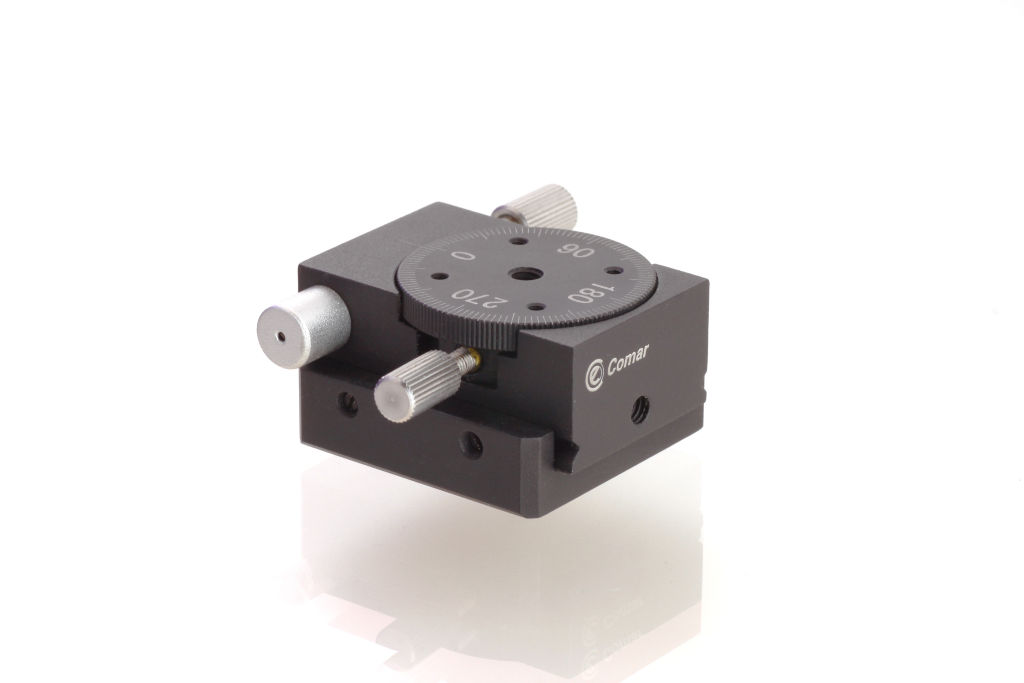

The smallest size, 70 XT 25, is a very compact design in two parts, the body being removable from the support cradle to expose the base fixing screws. The 70 XT 65 has a micrometer drive which, although not calibrated in angular measure, allows accurate repeatable setting over the whole fine adjustment range of 14° with each division on the thimble representing about 1.1’.

For more accurate angular readout see the precision stages and for a larger size see 74 XT 94.
