Translation stages (ball-slide)
Description

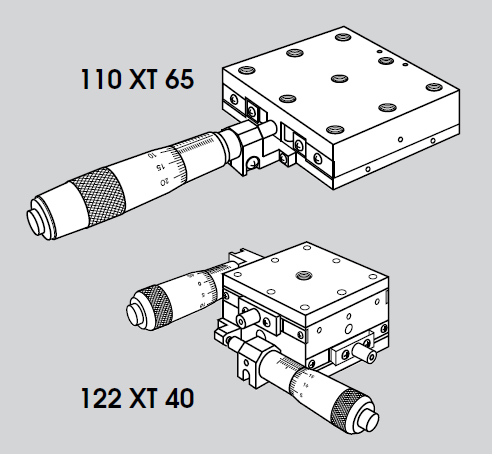

Preloaded precision ball slides have much less sideplay (typically less than 5μm) than the standard dovetail range. We offer single-axis and 2-axis stages in center-drive and side-drive forms.
These stages are limited in their load capacity by the single-point contacts in the slides. For precise movement of very heavy loads the crossed-roller stages are recommended.
.jpg){kind=spacer}

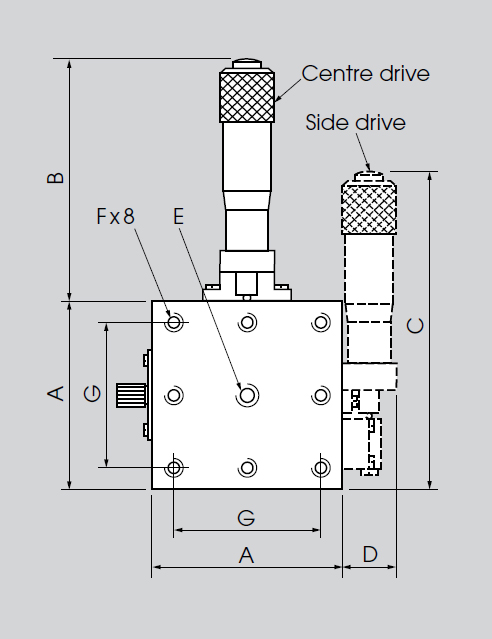

Dimensions (mm)
| Series | A | B | C | D | E | F | G |
| 114 XT 25 | 25 | 35 | - | - | M4 | M2 | 20 |
| 115 XT 25 | 25 | 27 | - | - | M4 | M2 | 20 |
| - XT 40 | 40 | 58 | 73 | 14 | M6 | M3 | 32 |
| - XT 65 | 65 | 98 | 119 | 16 | M6 | M6 | 50 |
Note: Bottom plates have 4 counterbored clearance holes size F on centres G x G. Fixing screws are provided.
| Item code | Dimensions (excl. drives) (mm) | No. of axes | Travel (mm) | Drive type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|

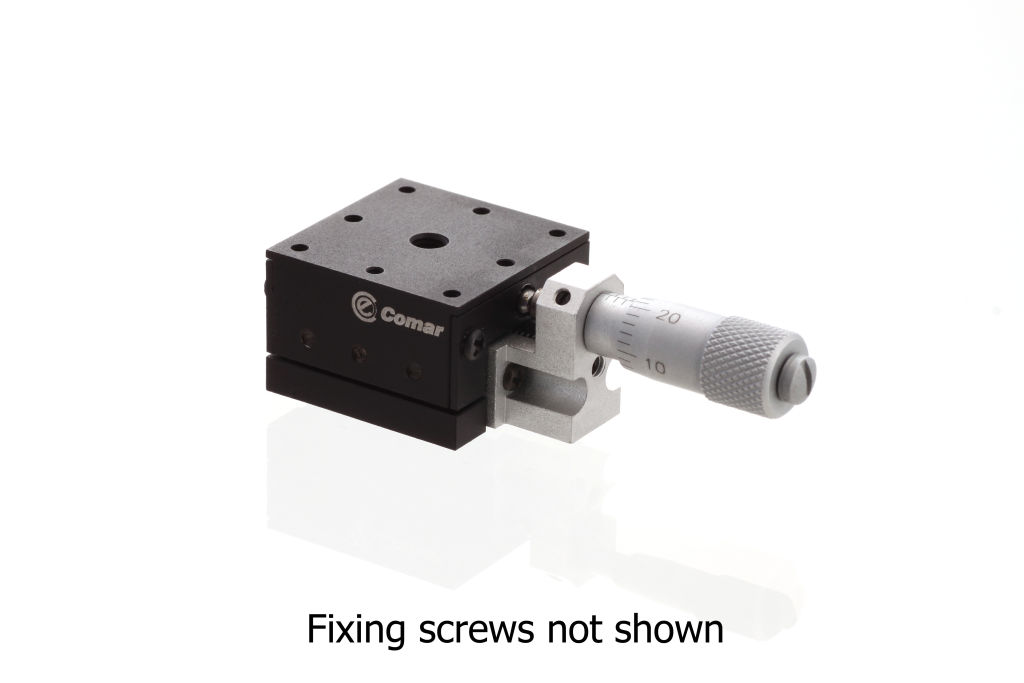

| 114 XT 25 | 25 x 25 x 16.5 | 1 | 7 | Micrometer | £166.13 | ||||

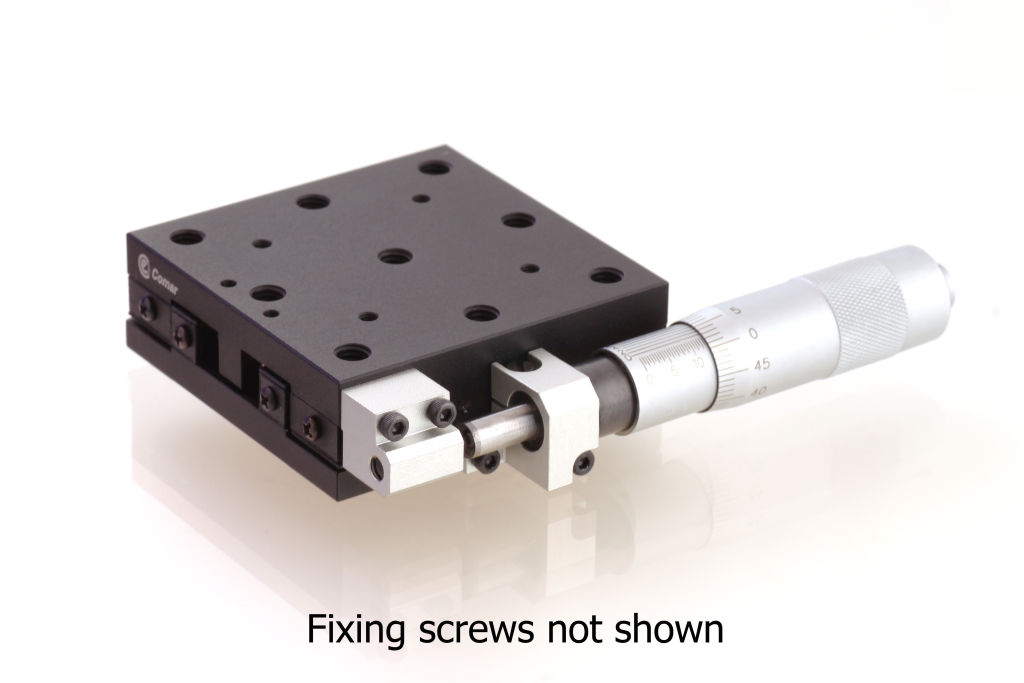

| 112 XT 65 | 65 x 65 x 22 | 1 | 25 | Micrometer | TBA | Send us a stock query | |||

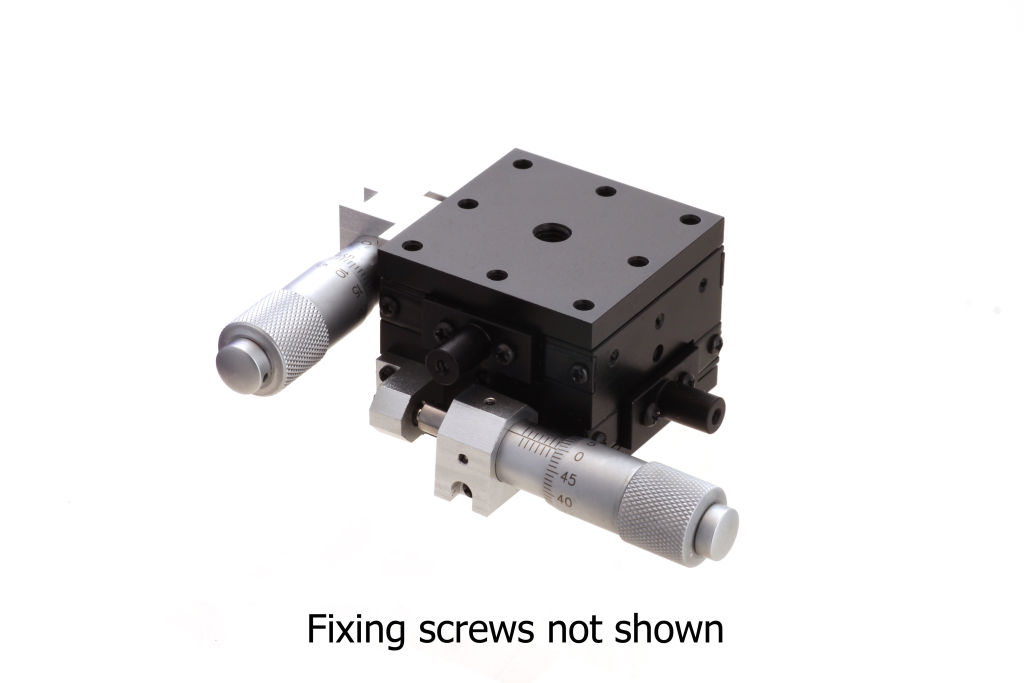

| 122 XT 40 | 40 x 40 x 32.5 | 2 | 13 | Micrometer | £363.36 | ||||

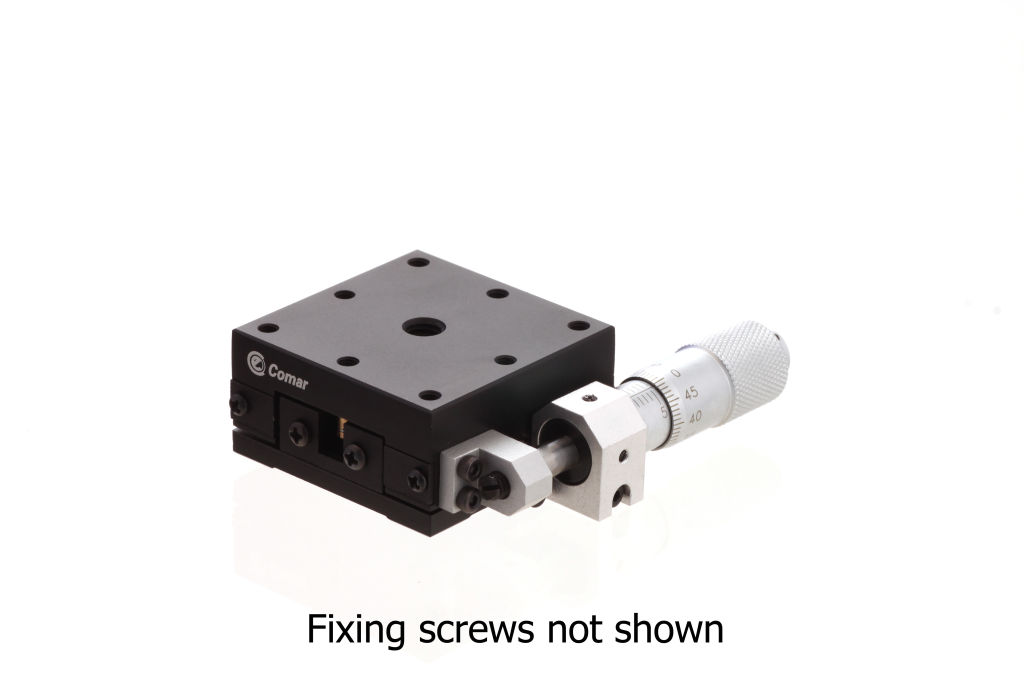

| 112 XT 40 | 40 x 40 x 23.5 | 1 | 13 | Micrometer | £182.35 | ||||

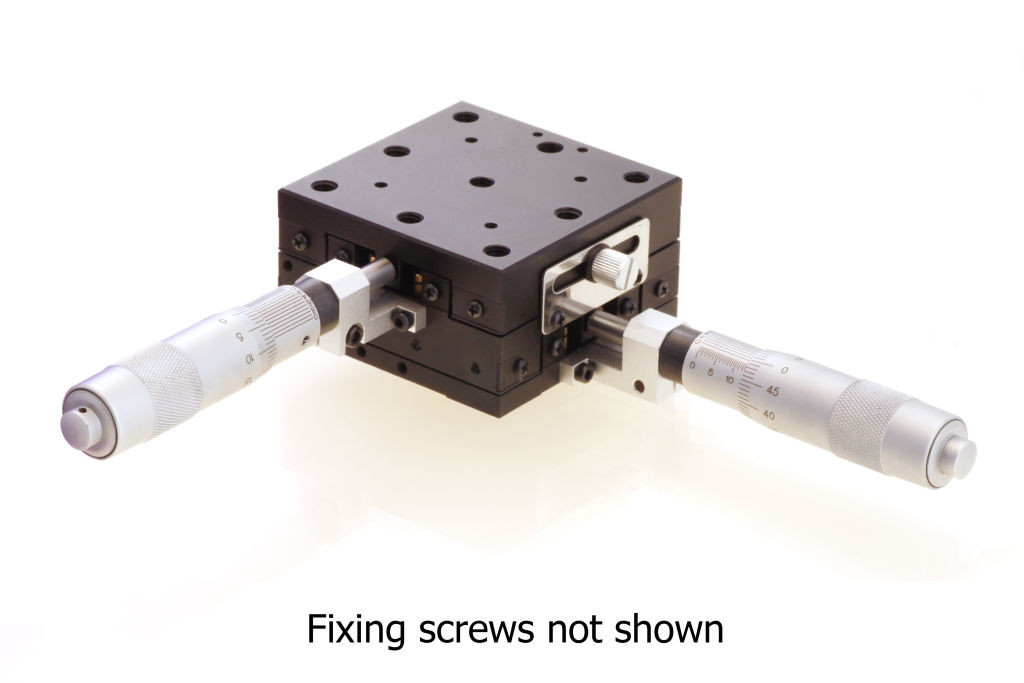

| 120 XT 65 | 65 x 65 x 36 | 2 | 25 | Micrometer | TBA | Send us a stock query | |||

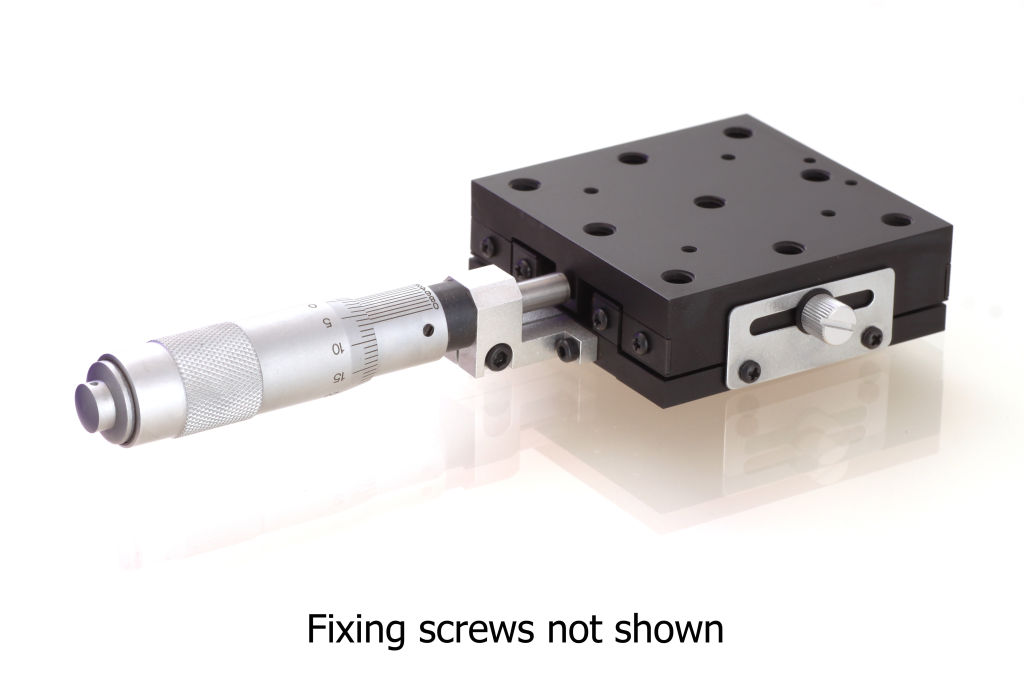

| 110 XT 65 | 65 x 65 x 22 | 1 | 25 | Micrometer | £222.88 | ||||

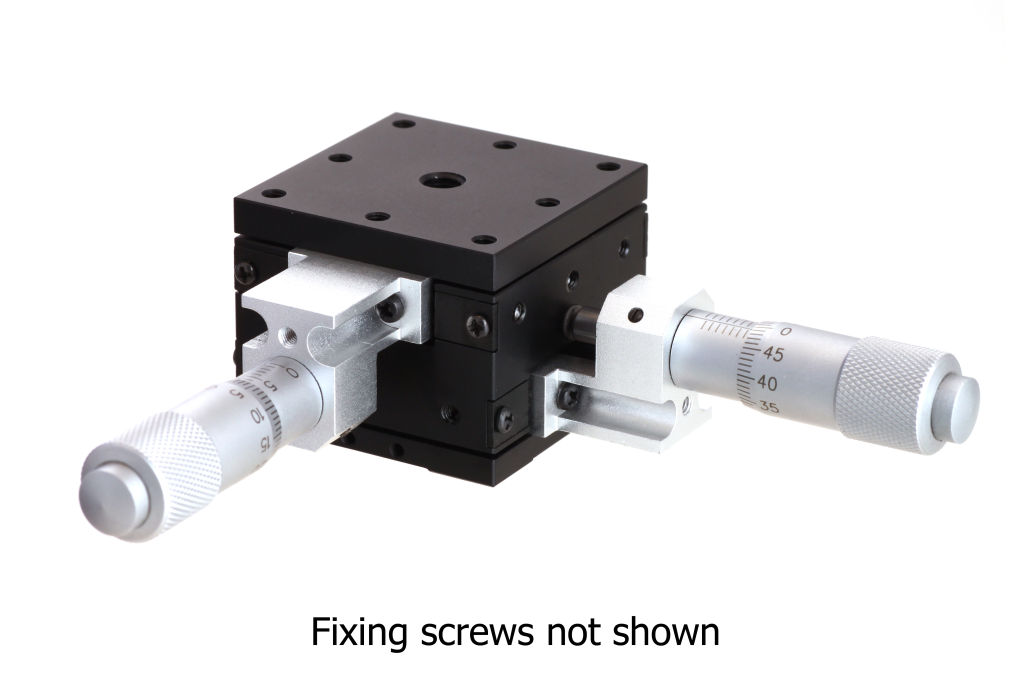

| 120 XT 40 | 40 x 40 x 32.5 | 2 | 13 | Micrometer | TBA | Send us a stock query | |||

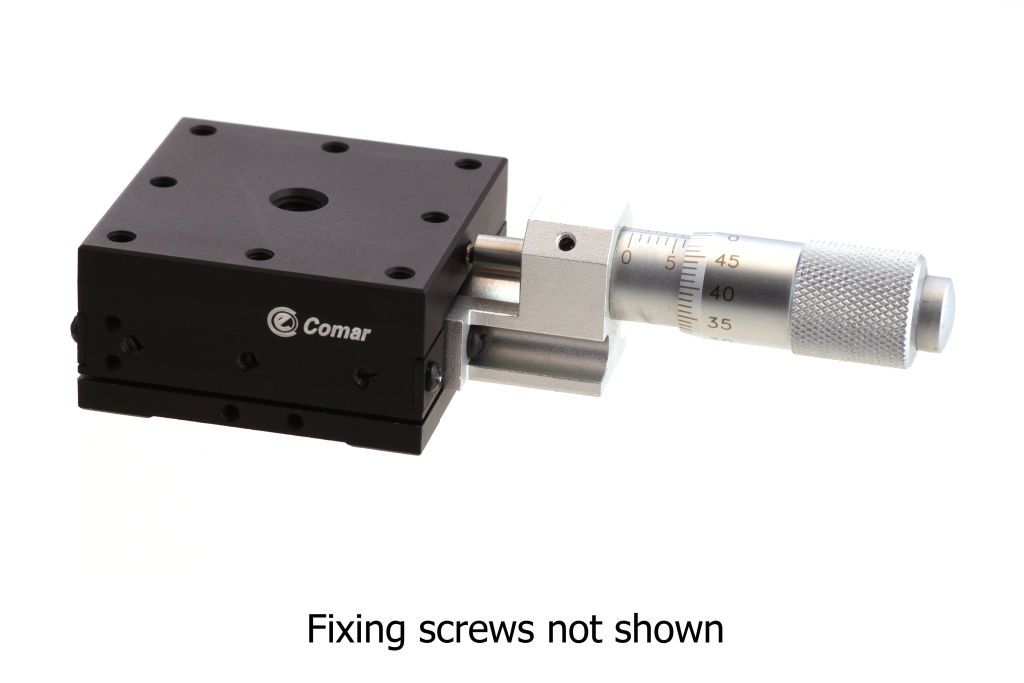

| 110 XT 40 | 40 x 40 x 23.5 | 1 | 13 | Micrometer | £182.35 | ||||

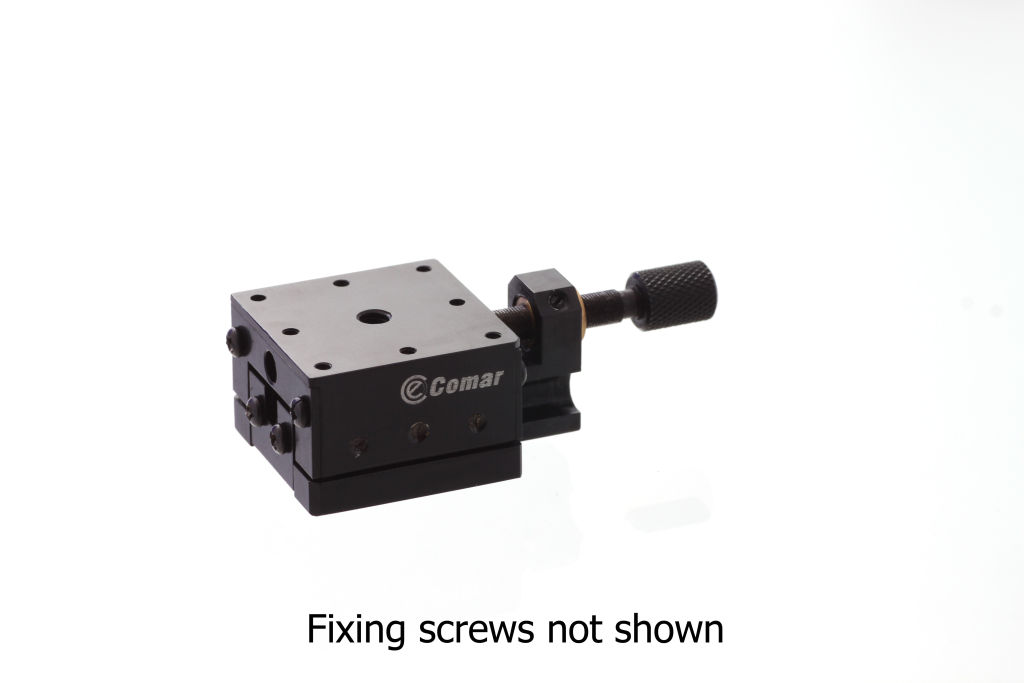

| 115 XT 25 | 25 x 25 x 16.5 | 1 | 7 | Thumbscrew | TBA | Send us a stock query | |||

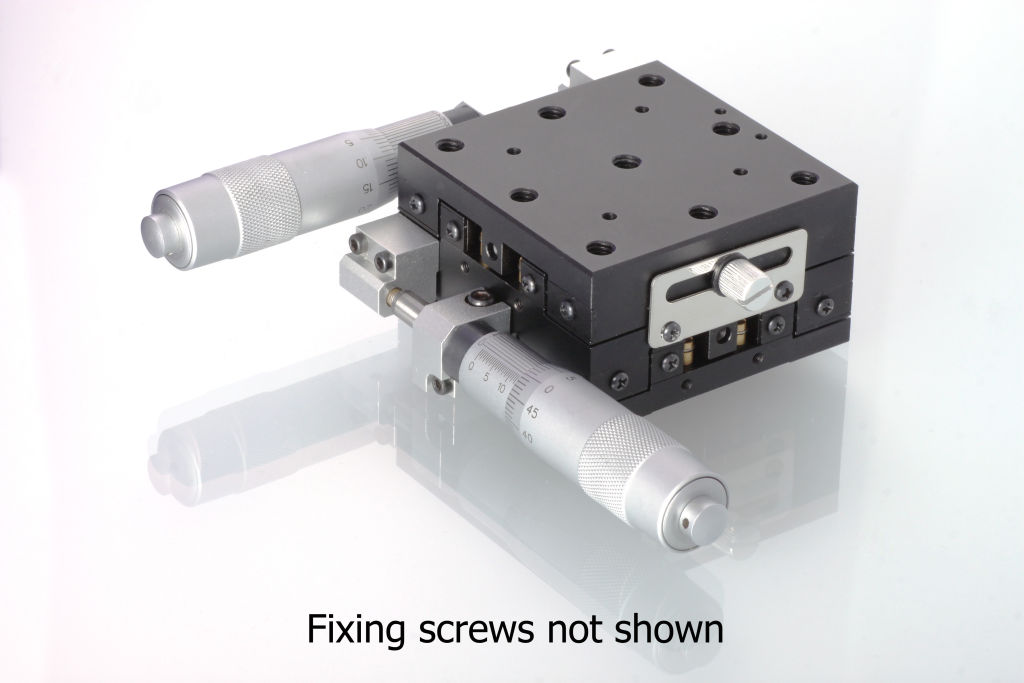

| 122 XT 65 | 65 x 65 x 36 | 2 | 25 | Micrometer | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
