Translation stages (crossed-roller)
Description
Crossed-roller slides combine the precision of a ball slide with the high load capacity of the dovetail design, and are thus suitable for the most demanding applications. The micrometers are of the vernier type, reading 0.001mm.

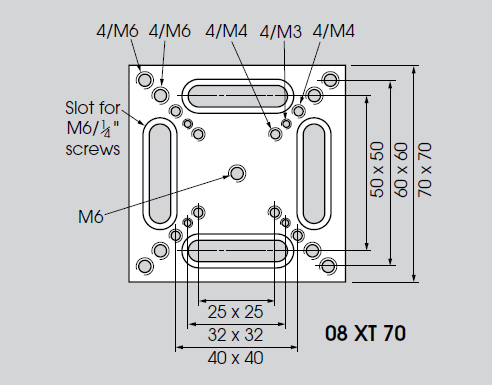

The adaptor plate 08 XT 70 enables these stages to be bolted down to a standard breadboard or table, or to be post-mounted.
| Item code | Description | Dimensions (excl. drives) (mm) | No. of axes | Travel (mm) | Drive type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|
| 08 XT 70 | Adaptor plate | 70 x 70 x 8 | - | - | - | £17.55 | ||||

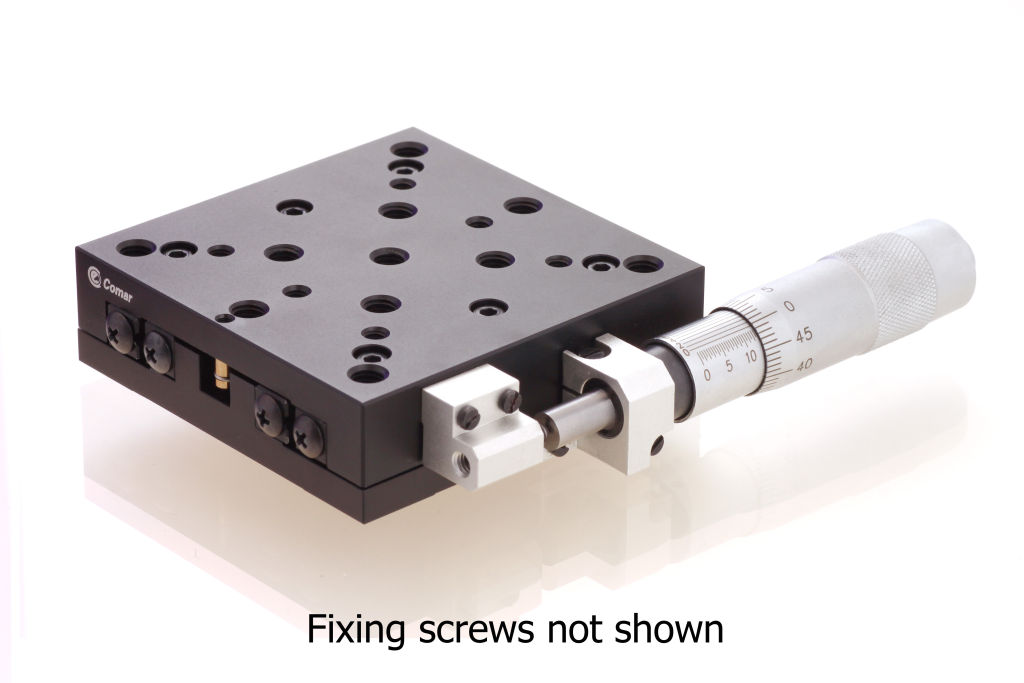

| 212 XT 75 | Stage | 75 x 75 x 22 | 1 | 25 | Micrometer | £335.41 | ||||

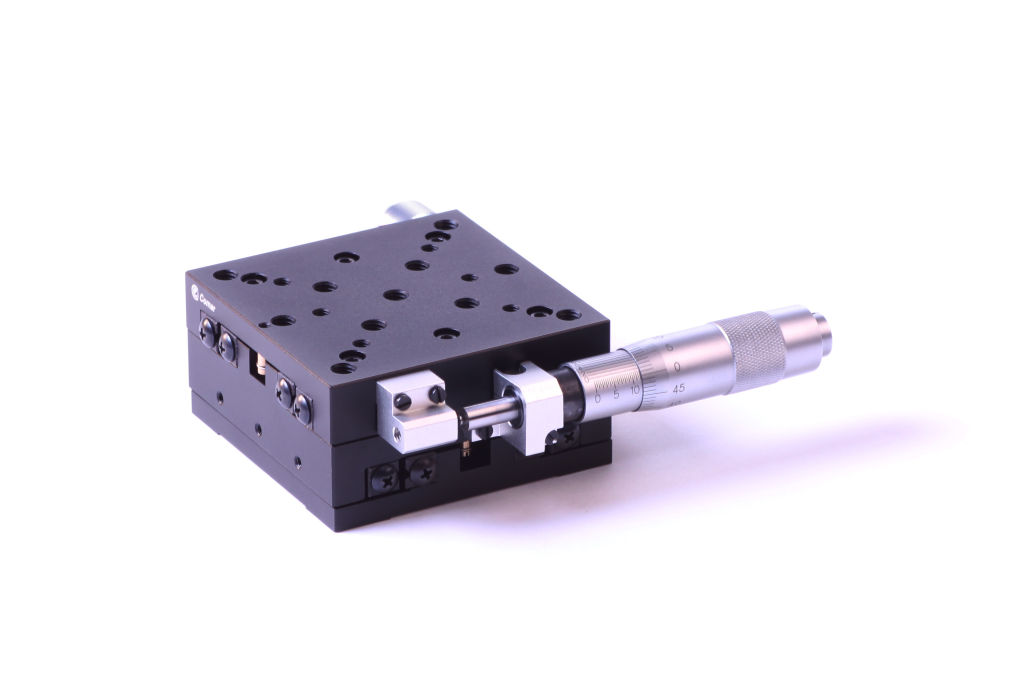

| 222 XT 75 | Stage | 75 x 75 x 38 | 2 | 25 | Micrometer | TBA | Send us a stock query | |||

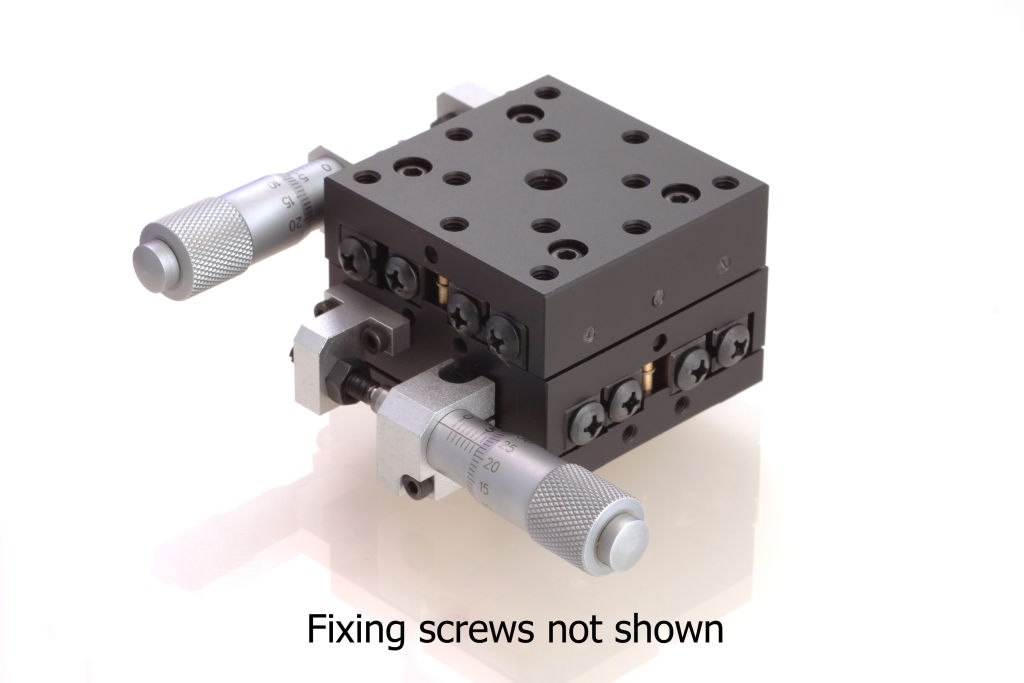

| 222 XT 50 | Stage | 50 x 50 x 38 | 2 | 13 | Micrometer | £602.94 | ||||

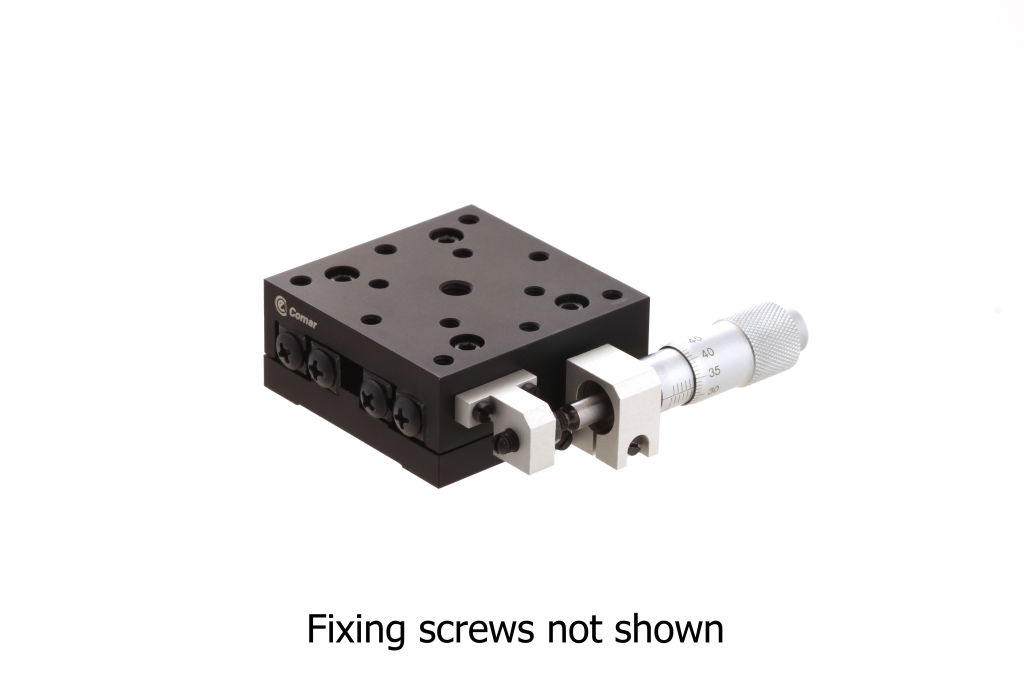

| 212 XT 50 | Stage | 50 x 50 x 22 | 1 | 13 | Micrometer | £301.65 | ||||
| 220 XT 75 | Stage | 75 x 75 x 38 | 2 | 25 | Micrometer | £654.61 | ||||

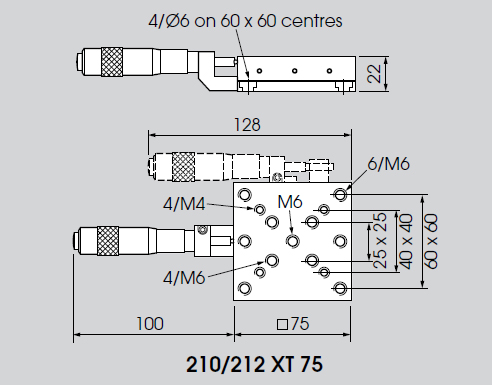

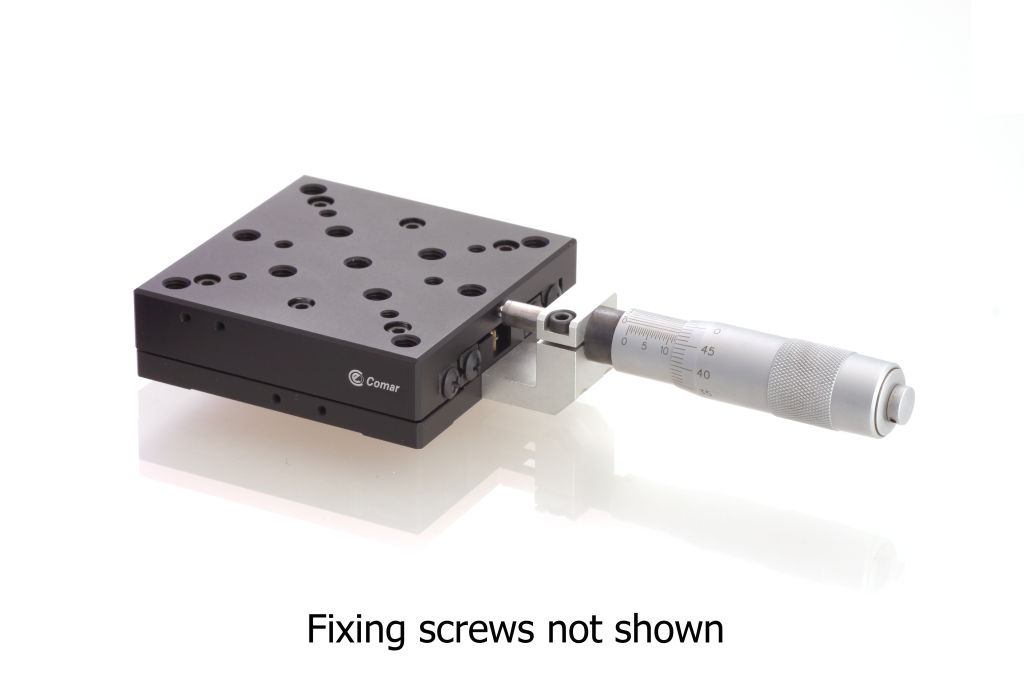

| 210 XT 75 | Stage | 75 x 75 x 22 | 1 | 25 | Micrometer | £335.41 | ||||

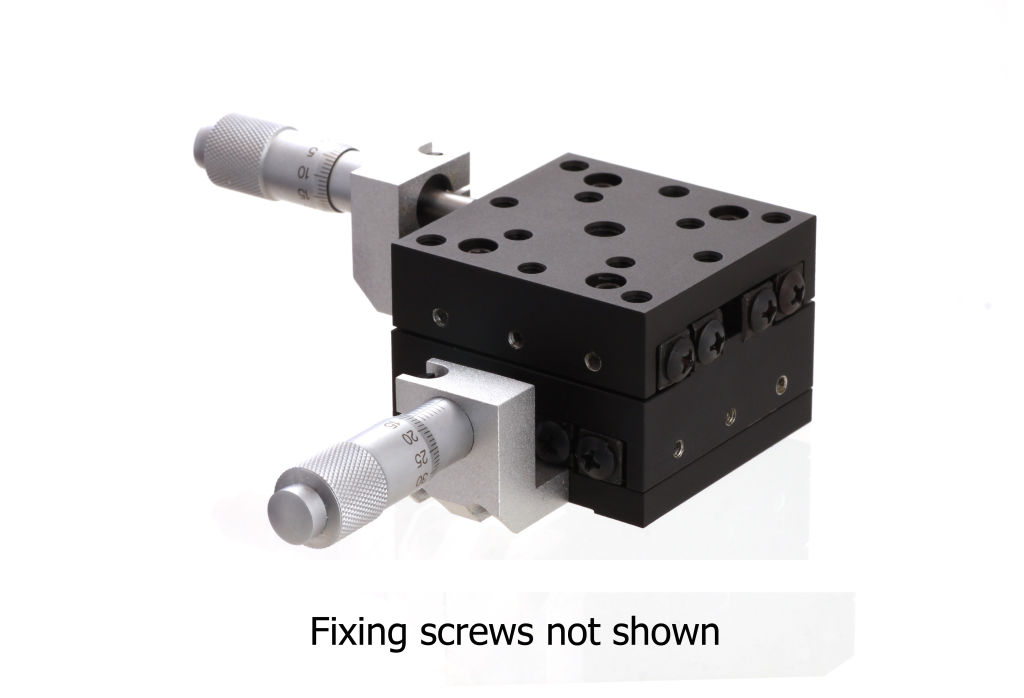

| 220 XT 50 | Stage | 50 x 50 x 38 | 2 | 13 | Micrometer | £602.94 | ||||

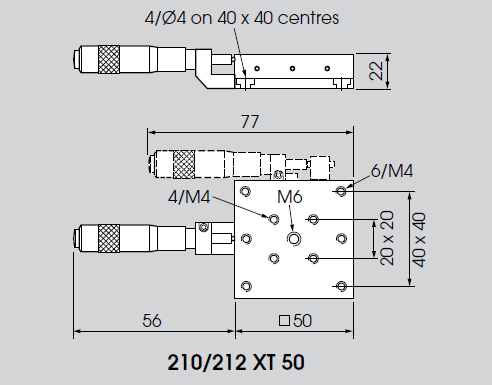

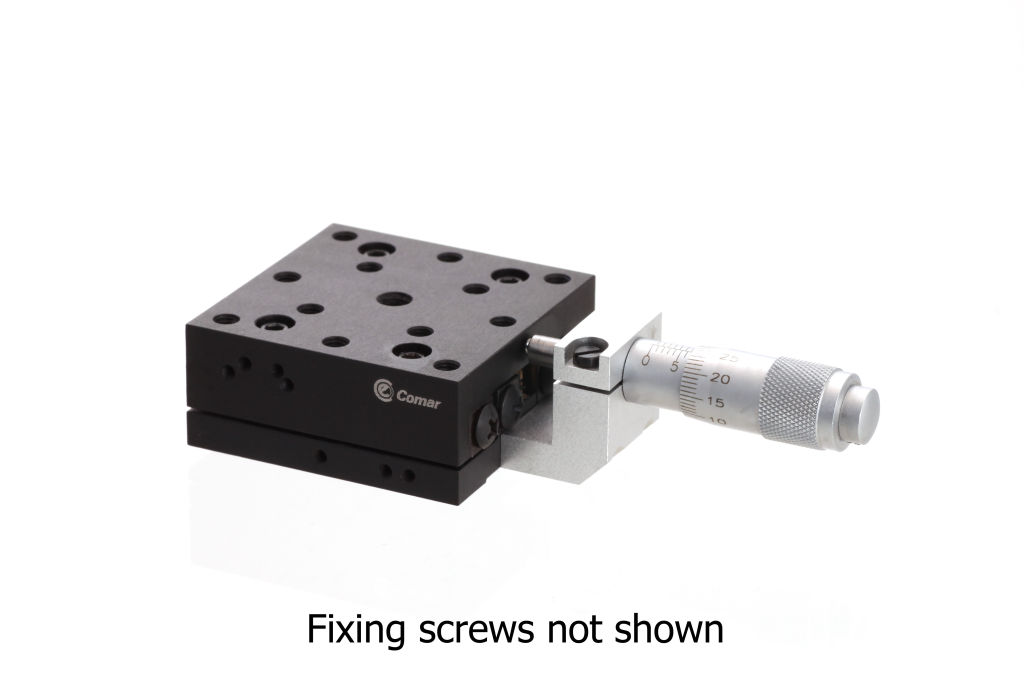

| 210 XT 50 | Stage | 50 x 50 x 22 | 1 | 13 | Micrometer | £301.65 | ||||
For more information regarding stock availability icons, please see our shipping page.
