Focusing lens cells
Description

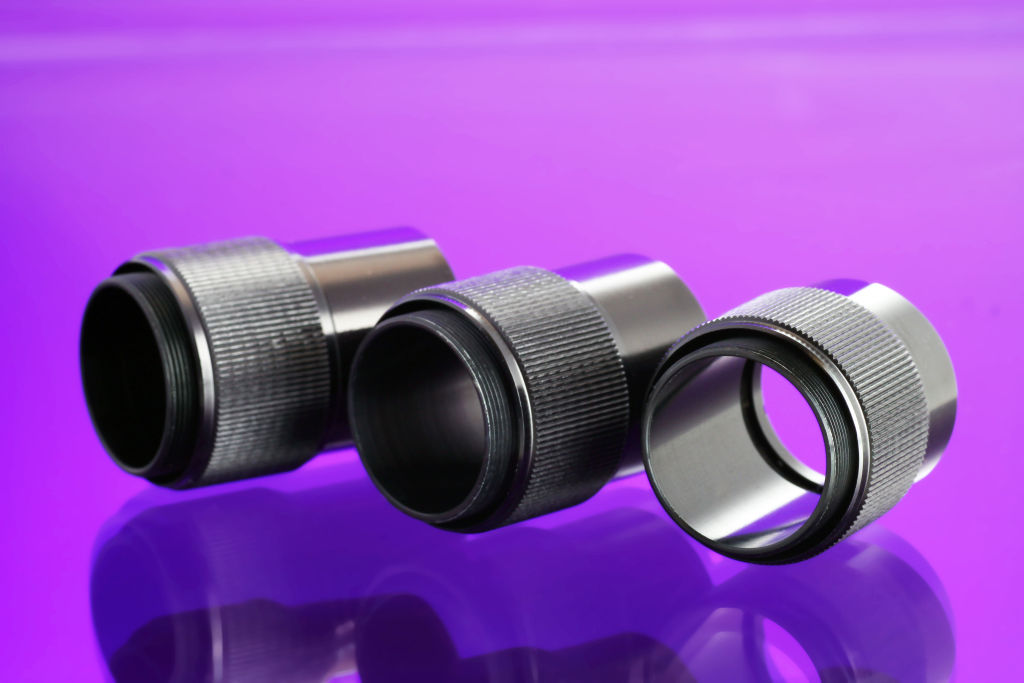

TubeMount focusing cells have a long threaded spigot which can be screwed to a variable depth into the end of any tube (not included, see Tubes), thus focusing the lens in the cell over a range of 16mm. A knurled grip is provided and the thread is concealed by a cover.

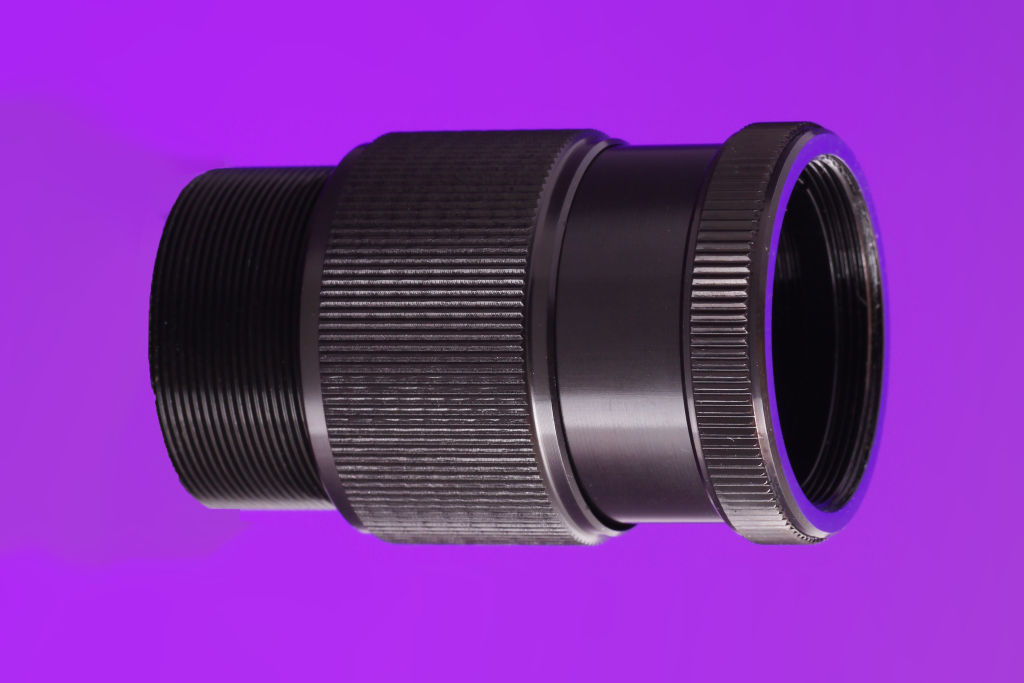

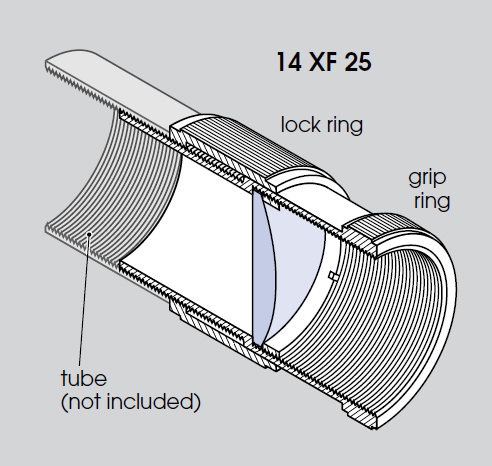

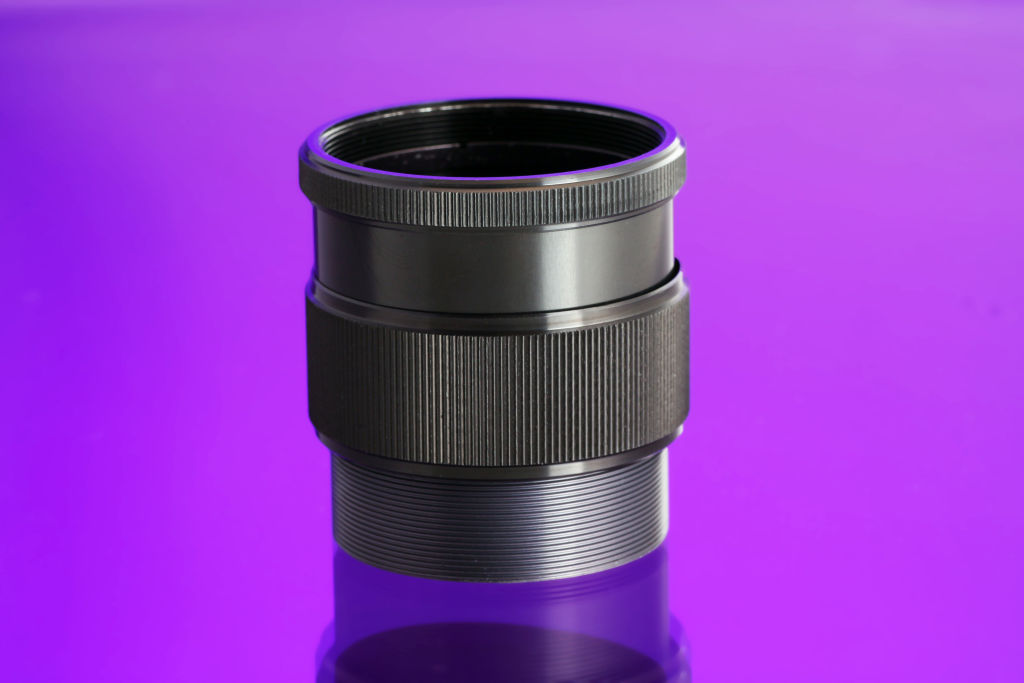

The locking type has an extra knurled ring which acts as a locknut, allowing the focus to be fixed.
| Item code | Focusing movement (mm) | Min. proj'n fr. tube end (mm) | Max. lens thickness (mm) | Lens diameter (mm) | Type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|
| 02 XF 25 | 16 | 13 | 5 | 25 | Non-locking | £36.91 | ||||
| 02 XF 40 | 16 | 13 | 5 | 40 | Non-locking | TBA | Send us a stock query | |||
| 03 XF 25 | 16 | 19 | 11 | 25 | Non-locking | £36.91 | ||||
| 03 XF 40 | 16 | 19 | 11 | 40 | Non-locking | TBA | Send us a stock query | |||
| 14 XF 25 | 16 | 28.5 | 20 | 25 | Locking | £36.91 | ||||
| 14 XF 40 | 16 | 28.5 | 20 | 40 | Locking | TBA | Send us a stock query | |||
| 04 XF 25 | 16 | 28 | 20 | 25 | Non-locking | £36.91 | ||||
| 04 XF 40 | 16 | 28 | 20 | 40 | Non-locking | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
