Panel-mounting cells
Description
These cells are mounted by putting the male-threaded end through a clearance hole in a panel, which is gripped by the knurled ring provided. The hole diameter should be 1mm greater than the lens diameter, and the panel may be up to 5mm thick. Longer spigots to clamp thicker panels are available if required.
Alternatively the cell can be screwed into another TubeMount element, using the knurled ring as a locknut. This allows polarisers or wedges, for instance, to be joined to a system whilst maintaining a specific angular alignment. It also allows an axial adjustment range of about 2.5mm. Freely rotating cells and cells with longer focusing motions are both available.

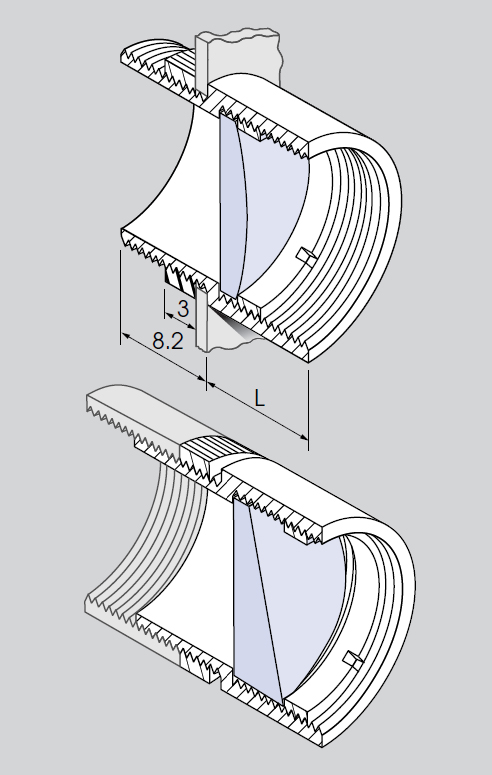

Dimensional details are given hereunder.
| Item code | Body length L (mm) | Max. lens thickness (mm) | Lens diameter (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |

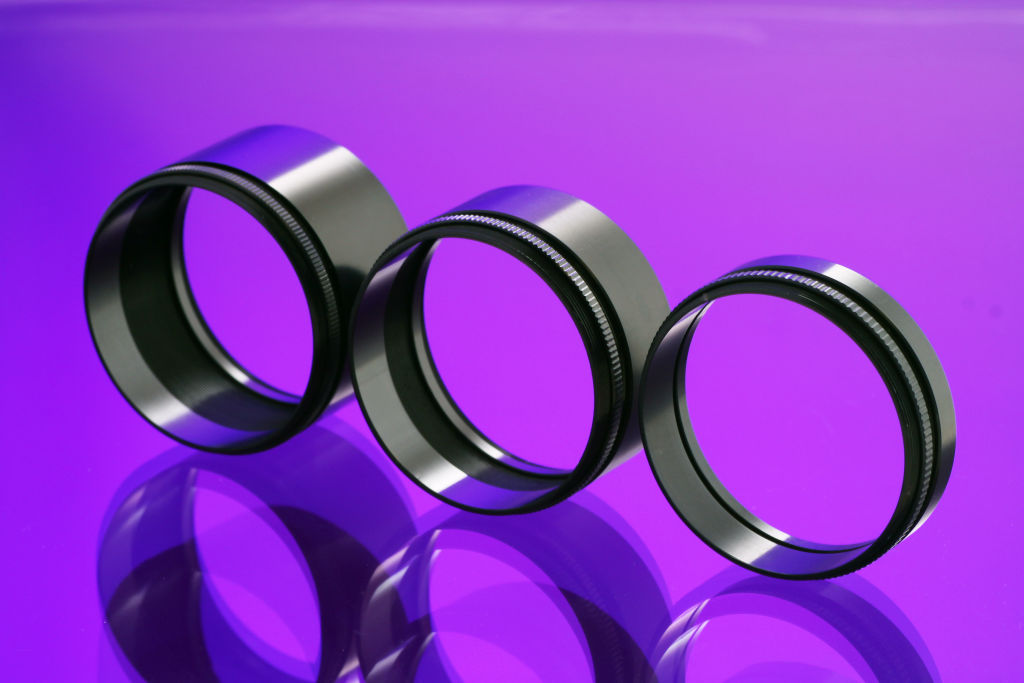

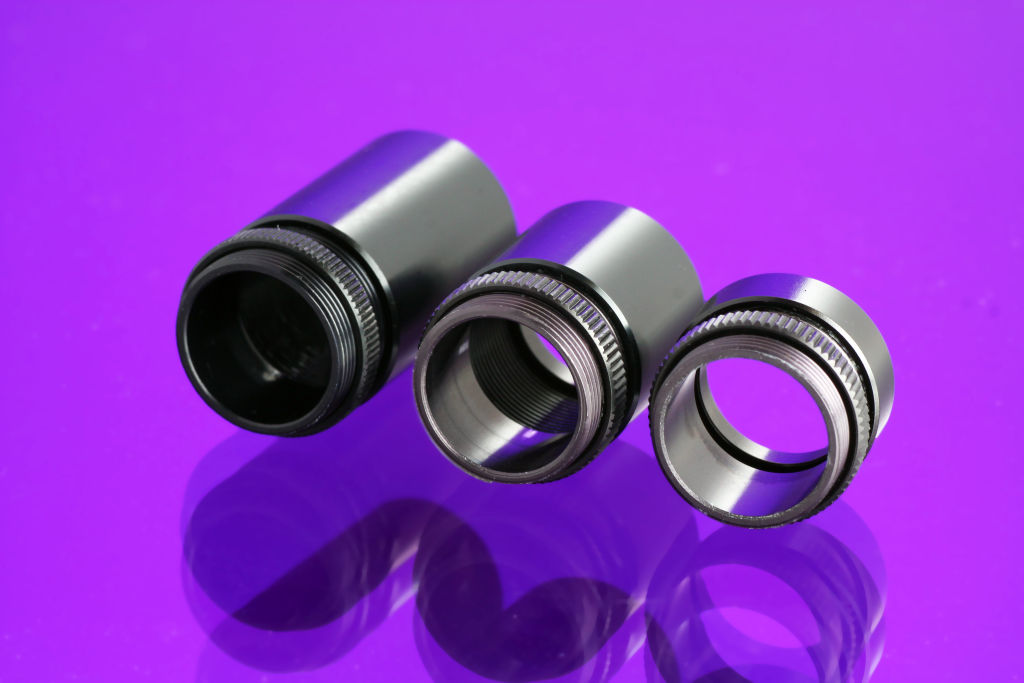

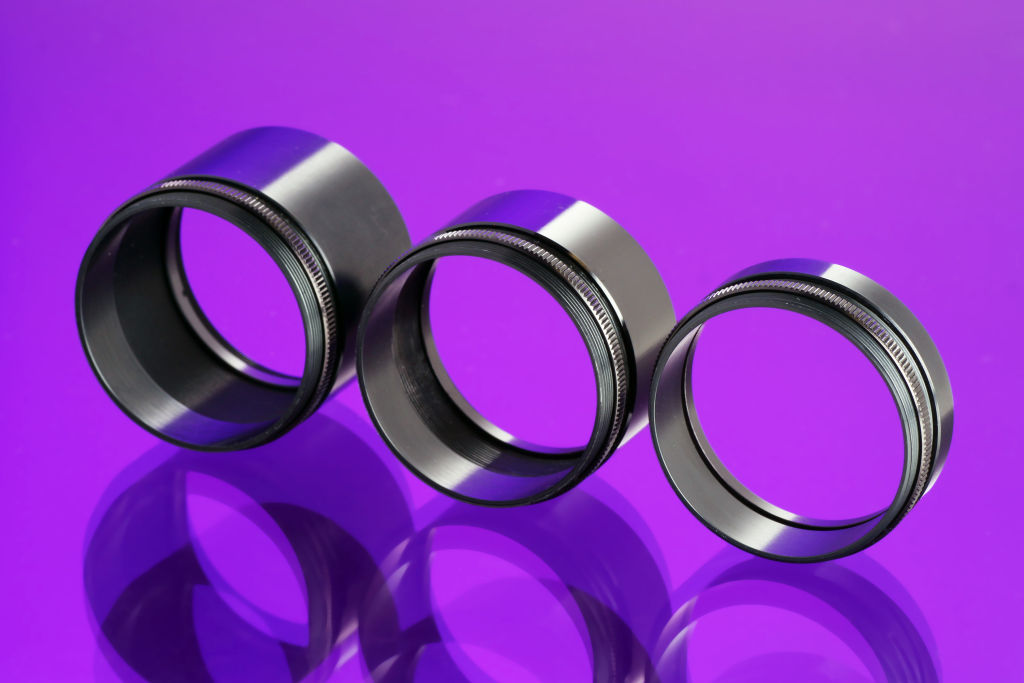

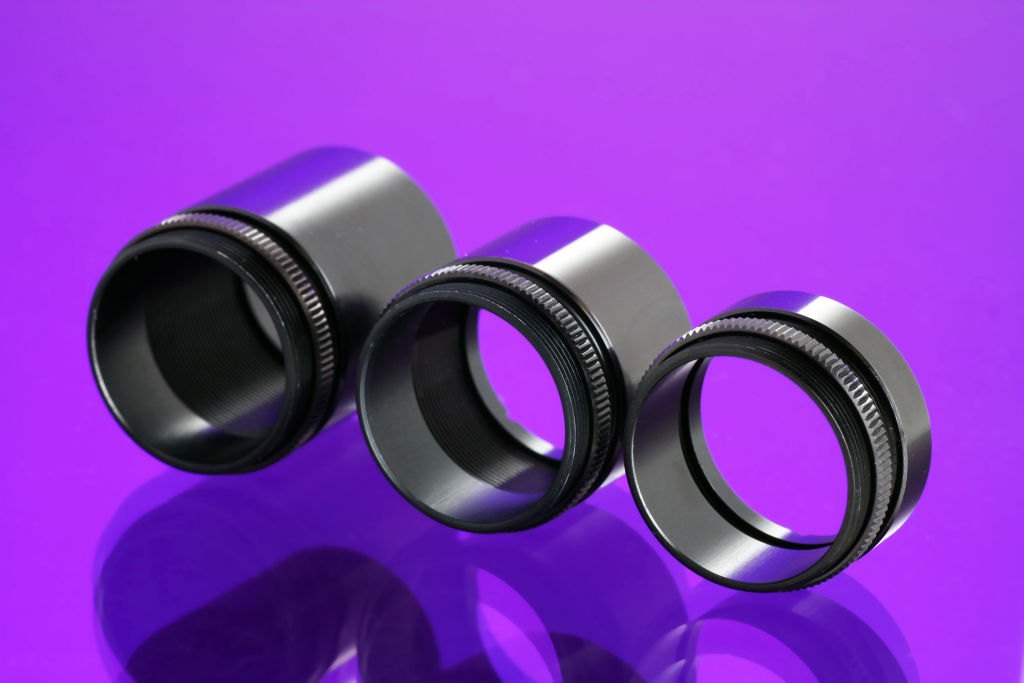

|---|---|---|---|---|---|---|---|---|
| 40 XE 50 | 40 | 35 | 50mm | £41.14 | ||||
| 16 XE 16 | 16 | 11 | 16mm | £28.07 | ||||
| 10 XE 50 | 10 | 5 | 50mm | £36.91 | ||||
| 10 XE 40 | 10 | 5 | 40mm | £33.88 | ||||
| 10 XE 25 | 10 | 5 | 25mm | £28.07 | ||||
| 10 XE 16 | 10 | 5 | 16mm | £28.07 | ||||
| 06 XE 50 | 6.3 | 1.3 | 50mm | £36.91 | ||||
| 06 XE 40 | 6.3 | 1.3 | 40mm | £33.88 | ||||
| 06 XE 25 | 6.3 | 1.3 | 25mm | £28.07 | ||||
| 06 XE 16 | 6.3 | 1.3 | 16mm | £28.07 | ||||

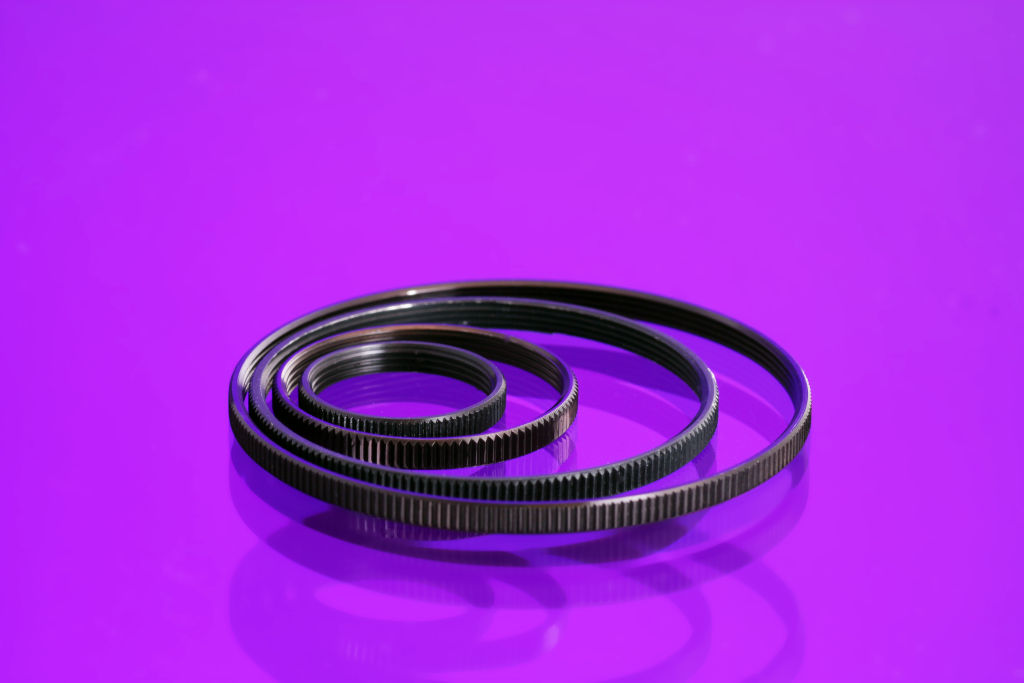

| 03 MW 16 | 3 | - | 16mm dia. spare knutled ring | £6.41 | ||||
| 03 MW 25 | 3 | - | 25mm dia. spare knutled ring | £6.41 | ||||
| 03 MW 40 | 3 | - | 40mm dia. spare knutled ring | £8.11 | ||||
| 16 XE 25 | 16 | 11 | 25mm | £28.07 | ||||
| 16 XE 40 | 16 | 11 | 40mm | £33.88 | ||||
| 40 XE 40 | 40 | 35 | 40mm | £37.51 | ||||
| 40 XE 25 | 40 | 35 | 25mm | £32.43 | ||||
| 40 XE 16 | 40 | 35 | 16mm | £32.43 | ||||
| 25 XE 50 | 25 | 20 | 50mm | £38.24 | ||||
| 25 XE 40 | 25 | 20 | 40mm | £34.61 | ||||
| 25 XE 25 | 25 | 20 | 25mm | £28.68 | ||||
| 25 XE 16 | 25 | 20 | 16mm | TBA | Send us a stock query | |||
| 20 XE 50 | 20 | 15 | 50mm | TBA | Send us a stock query | |||
| 20 XE 40 | 20 | 15 | 40mm | £33.88 | ||||
| 20 XE 25 | 20 | 15 | 25mm | £28.07 | ||||
| 20 XE 16 | 20 | 15 | 16mm | £28.07 | ||||
| 16 XE 50 | 16 | 11 | 50mm | £36.91 | ||||
| 03 MW 50 | 3 | - | 50mm dia. spare knutled ring | £9.68 | ||||
