Rotating cells and connectors
Description
These elements attach to the end of a tube (etc.) and allow free rotation without axial motion. The cells hold optics (e.g. polarisers) directly; the connectors accept other male-threaded TubeMount elements such as ML cells or adaptors (see Fibre optic adaptors & Thread-size adaptors)
Locking types allow the rotation to be locked at any desired position.
| Item code | Body length (mm) | Max. lens thickness (mm) | Lens diameter (mm) | Type | Form | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|

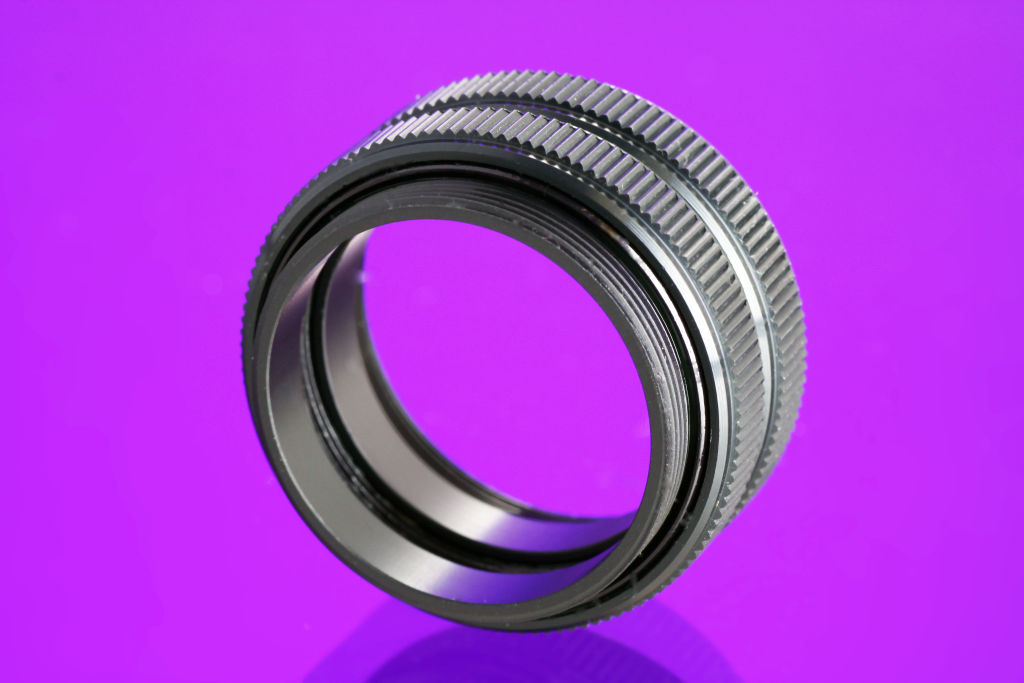

| 00 XR 25 | 13 | - | 25 | Non-locking | Connector | £39.81 | ||||
| 14 XR 40 | 35 | 16 | 40 | Locking | Cell | £67.64 | ||||
| 14 XR 25 | 35 | 16 | 25 | Locking | Cell | £57.60 | ||||
| 13 XR 40 | 26 | 11 | 40 | Locking | Cell | £67.64 | ||||
| 13 XR 25 | 26 | 11 | 25 | Locking | Cell | £57.60 | ||||
| 12 XR 40 | 20 | 5 | 40 | Locking | Cell | £67.64 | ||||
| 12 XR 25 | 20 | 5 | 25 | Locking | Cell | £57.60 | ||||
| 10 XR 40 | 20 | - | 40 | Locking | Connector | TBA | Send us a stock query | |||

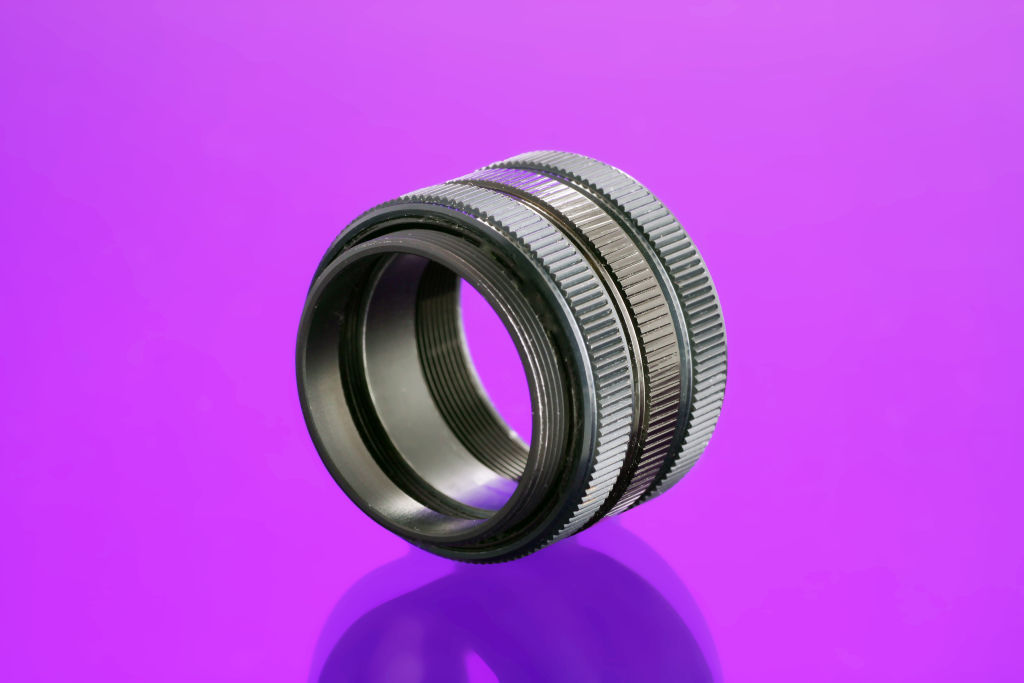

| 10 XR 25 | 20 | - | 25 | Locking | Connector | £50.09 | ||||
| 04 XR 25 | 32 | 16 | 25 | Non-locking | Cell | £45.62 | ||||
| 03 XR 40 | 23 | 11 | 40 | Non-locking | Cell | £55.90 | ||||
| 03 XR 25 | 23 | 11 | 25 | Non-locking | Cell | £45.62 | ||||
| 02 XR 40 | 17 | 5 | 40 | Non-locking | Cell | £55.90 | ||||

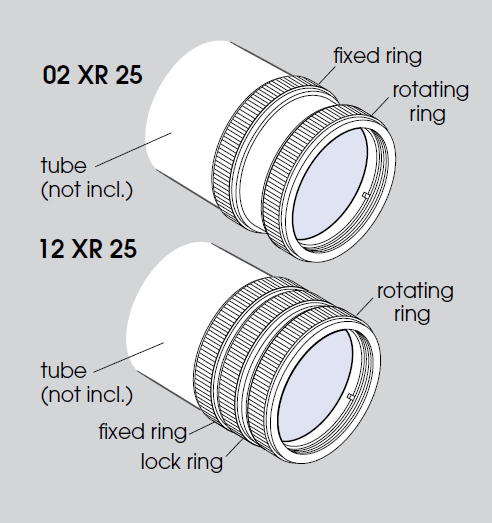

| 02 XR 25 | 17 | 5 | 25 | Non-locking | Cell | £45.62 | ||||

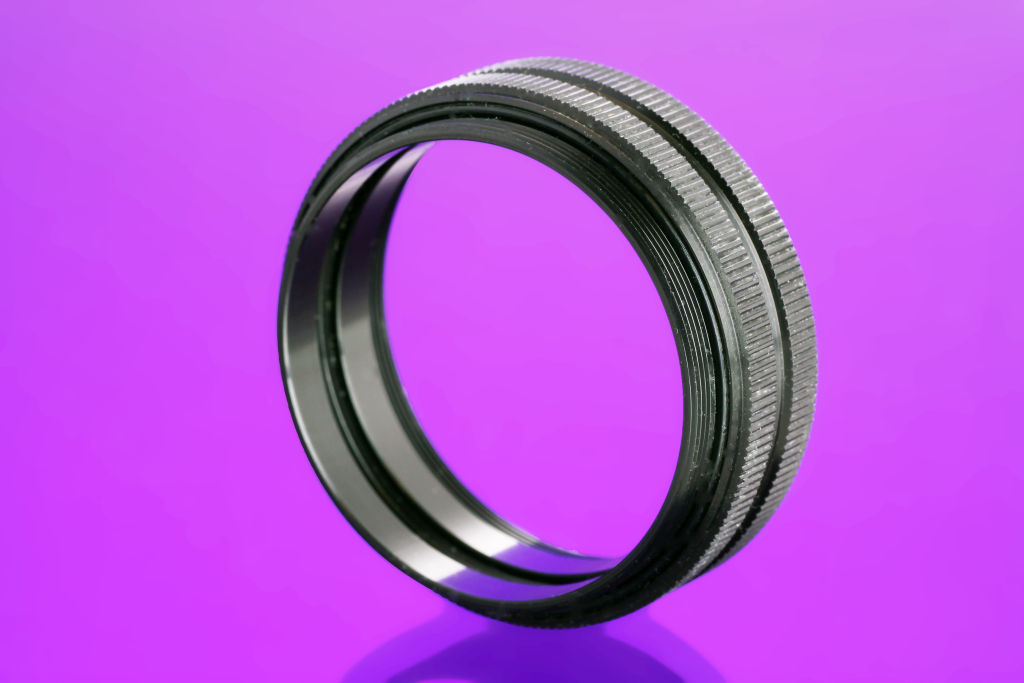

| 00 XR 40 | 13 | - | 40 | Non-locking | Connector | £47.19 | ||||
| 04 XR 40 | 32 | 16 | 40 | Non-locking | Cell | £55.90 | ||||
For more information regarding stock availability icons, please see our shipping page.
