Precision slits
Description

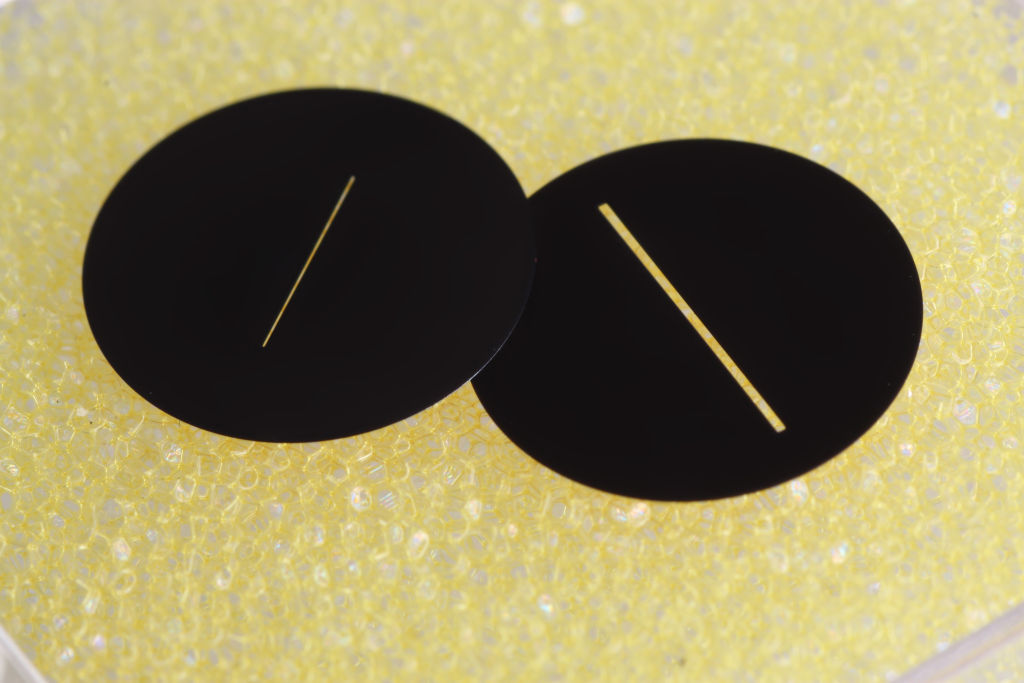

Our precision apertures are prepared in copper foil by an electroforming process, which allows very precise control of size and shape, and thins the substrate around the aperture leaving a sharp well-defined edge.
The foil is blacked one side to reduce reflections. Slits are unmounted foils 10mm dia.
|
Straightness:* |
|
|
25μm |
0.5μm |
|
25-63μm |
1μm |
|
100μm |
1.5μm |
|
>100μm |
2μm |
|
Centration:* |
|
|
To foil edge |
20μm |
|
To mount |
100μm |
*Manufacturer's data
| Item code | Width (µm) | Length (mm) | Foil thickness (µm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|
| 05 HS 10 | 5 ± 0.5 | 3 | 16 | £168.19 | ||||
| 200 HS 10 | 200 ± 2.5 | 7.5 | 22 | TBA | Send us a stock query | |||
| 25 HS 10 | 25 ± 1 | 5 | 17 | £155.61 | ||||
For more information regarding stock availability icons, please see our shipping page.
