Diffusers and screens
Description

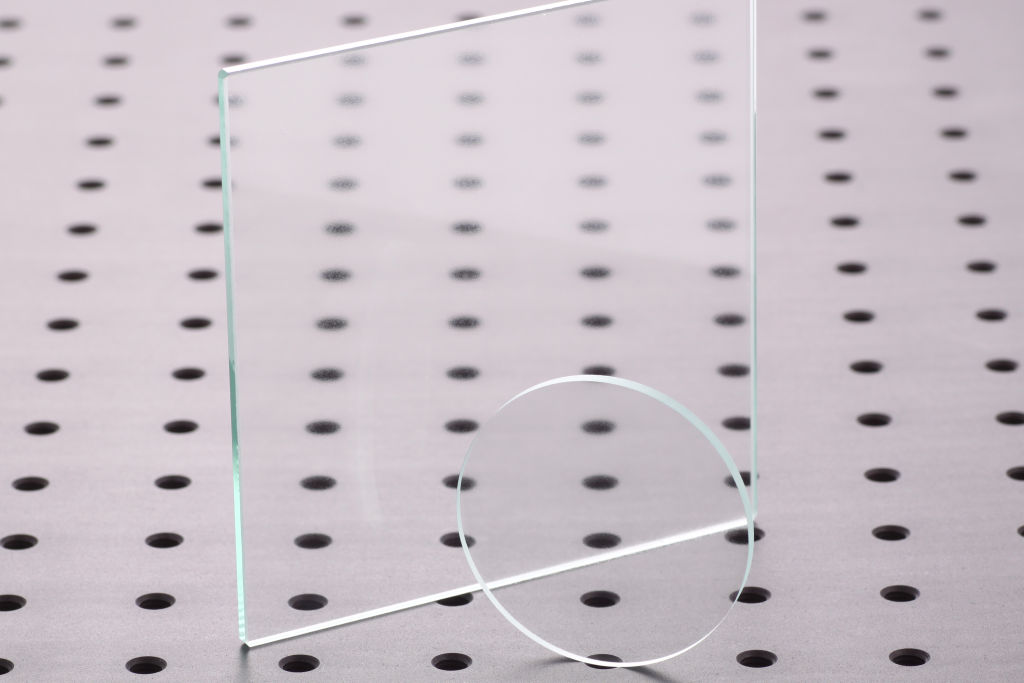

Anti-Newton glass gives the weakest diffusion effect. This lightly-etched glass is used to support film in enlargers etc. without interference fringes (Newton's rings) appearing.
Ground glass gives a diffusion angle of about ±10o and is useful for focusing screens and for weak diffusion in illuminating systems. We list both LEBG and UV silica (See optical materials).
Acrylic and PVC: our plastic screen materials have a controlled diffusion, allowing an image to be back-projected on a large screen without 'hot spot', and have a grey tint to minimise reflection of ambient and scattered light. The 0.3mm PVC material, with a gain of 2.3, is normally stretched over a rigid frame, whereas the 3mm acrylic (with gain of 4.7) is self supporting.
Flashed opal glass has nearly Lambertian characteristics (luminance independent of viewing angle) and is used in light boxes and illumination systems where strong diffusion in needed.
|
Diameter |
+0, -0.25mm (≤63mm) |
|
Length, width |
±0.25mm (glass) |
| Thickness | Nominal |
| Item code | Type/glass | Dimensions (mm) | Thickness (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|
| 63 DO 00 | Flashed opal glass | 63 dia. | 3 | £28.40 | ||||
| 16 DH 00 | Ground LEBG | 16 dia. | 3 | £10.41 | ||||
| 100 DH 100 | Ground LEBG | 100 x 100 | 3 | TBA | Send us a stock query | |||
| 50 DA 50 | Anti-Newton glass | 50 x 50 | 3 | TBA | Send us a stock query | |||
| 50 DA 00 | Anti-Newton glass | 50 dia. | 3 | TBA | Send us a stock query | |||
| 25 DA 00 | Anti-Newton glass | 25 dia. | 3 | TBA | Send us a stock query | |||
| 100 DA 100 | Anti-Newton glass | 100 x 100 | 3 | TBA | Send us a stock query | |||
| 600 DF 600 | Flexible pvc screen | 600 x 600 | 0.3 | TBA | Send us a stock query | |||
| 400 DF 400 | Flexible pvc screen | 400 x 400 | 0.3 | TBA | Send us a stock query | |||
| 250 DF 250 | Flexible pvc screen | 250 x 250 | 0.3 | TBA | Send us a stock query | |||
| 160 DF 160 | Flexible pvc screen | 160 x 160 | 0.3 | TBA | Send us a stock query | |||
| 100 DF 100 | Flexible pvc screen | 100 x 100 | 0.3 | TBA | Send us a stock query | |||
| 600 DR 600 | Rigid acrylic screen | 600 x 600 | 3 | TBA | Send us a stock query | |||
| 400 DR 400 | Rigid acrylic screen | 400 x 400 | 3 | TBA | Send us a stock query | |||
| 250 DR 250 | Rigid acrylic screen | 250 x 250 | 3 | TBA | Send us a stock query | |||
| 160 DR 160 | Rigid acrylic screen | 160 x 160 | 3 | TBA | Send us a stock query | |||
| 25 DH 00 | Ground LEBG | 25 dia. | 3 | £11.74 | ||||
| 40 DH 00 | Ground LEBG | 40 dia. | 3 | £14.76 | ||||
| 50 DO 50 | Flashed opal glass | 50 x 50 | 3 | TBA | Send us a stock query | |||
| 50 DS 50 | Ground UV silica | 50 x 50 | 2 | TBA | Send us a stock query | |||
| 50 DO 00 | Flashed opal glass | 50 dia. | 3 | TBA | Send us a stock query | |||
| 40 DO 00 | Flashed opal glass | 40 dia. | 3 | TBA | Send us a stock query | |||
| 25 DO 00 | Flashed opal glass | 25 dia. | 3 | TBA | Send us a stock query | |||
| 160 DO 00 | Flashed opal glass | 160 dia. | 3 | TBA | Send us a stock query | |||
| 100 DO 100 | Flashed opal glass | 100 x 100 | 3 | TBA | Send us a stock query | |||
| 100 DO 00 | Flashed opal glass | 100 dia. | 3 | TBA | Send us a stock query | |||
| 50 DS 00 | Ground UV silica | 50 dia. | 4 | £81.68 | ||||
| 40 DS 00 | Ground UV silica | 40 dia. | 3 | £61.59 | ||||
| 25 DS 00 | Ground UV silica | 25 dia. | 3 | £41.62 | ||||
| 16 DS 00 | Ground UV silica | 16 dia. | 3 | £26.14 | ||||
| 63 DH 00 | Ground LEBG | 63 dia. | 6 | TBA | Send us a stock query | |||
| 50 DH 50 | Ground LEBG | 50 x 50 | 3 | TBA | Send us a stock query | |||
| 50 DH 00 | Ground LEBG | 50 dia. | 3 | TBA | Send us a stock query | |||
| 100 DR 100 | Rigid acrylic screen | 100 x 100 | 3 | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
