Fresnel prisms and beam dividers
Description

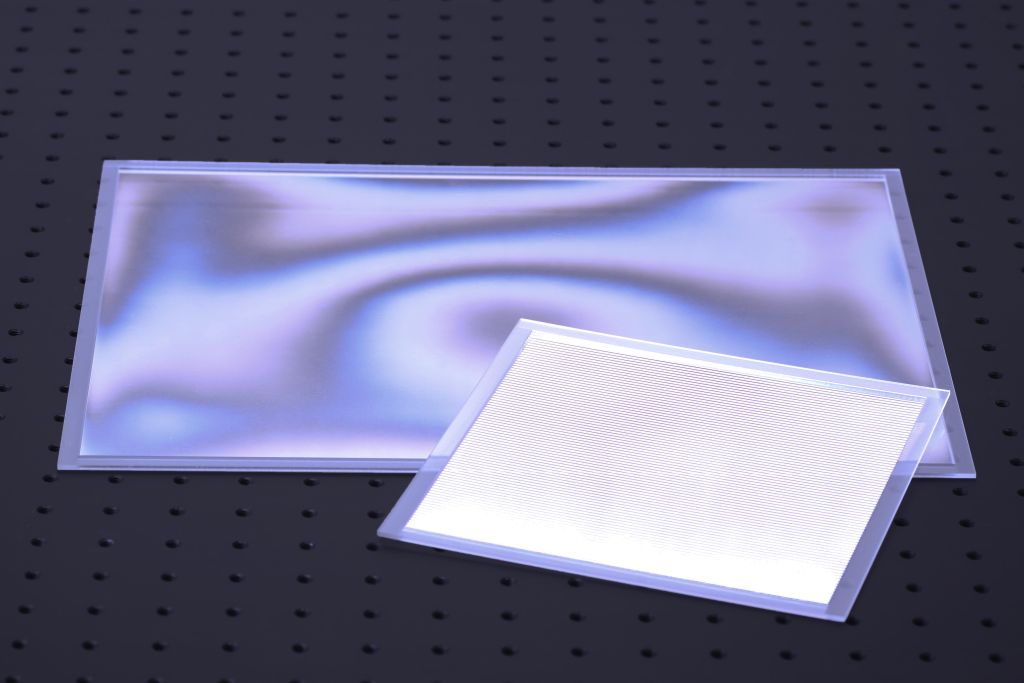

A Fresnel prism replaces the sloping surface of a wedge by a series of facets moulded in acrylic, with a great saving of weight and cost. Fresnel prisms are so called as analogous to fresnel lenses and are not to be confused with fresnel rhombs or Fresnel biprisms.

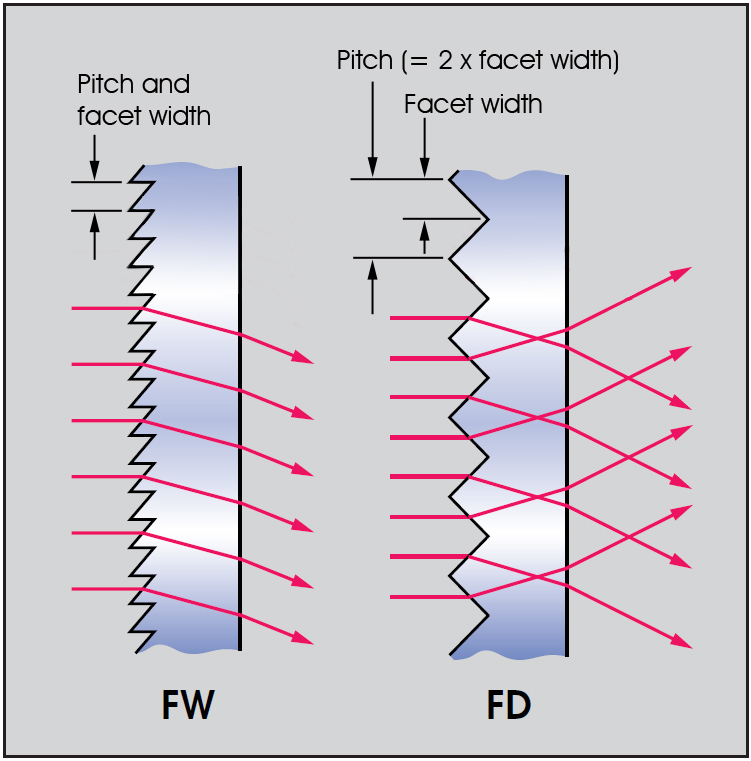

In the Fresnel beam divider alternate facets are reversed, so dividing the light into two beams deviated in opposite directions.
| Item code | Type | Deviation angle | Prism angle | Aper. len. along grooves (mm) | Aperture width (mm) | Overall L x W (mm) | Facet width (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 FD 330 | Beam divider | ±25.5° | 45° | 330 | 250 | 355 x 285 | 0.15 | £144.35 | ||||
| 16 FD 165 | Beam divider | ±16° | 30° | 165 | 165 | 180 x 180 | 1.01 | £76.35 | ||||
| 23 FW 133 | Prism | 23° | 41° | 133 | 133 | 170 x 170 | 0.13 | TBA | Send us a stock query | |||
| 16 FW 450 | Prism | 16° | 30° | 450 | 360 | 470 x 390 | 0.33 | £443.59 | ||||
| 16 FW 240 | Prism | 16° | 30° | 240 | 240 | 250 x 250 | 0.15 | £101.52 | ||||
For more information regarding stock availability icons, please see our shipping page.
