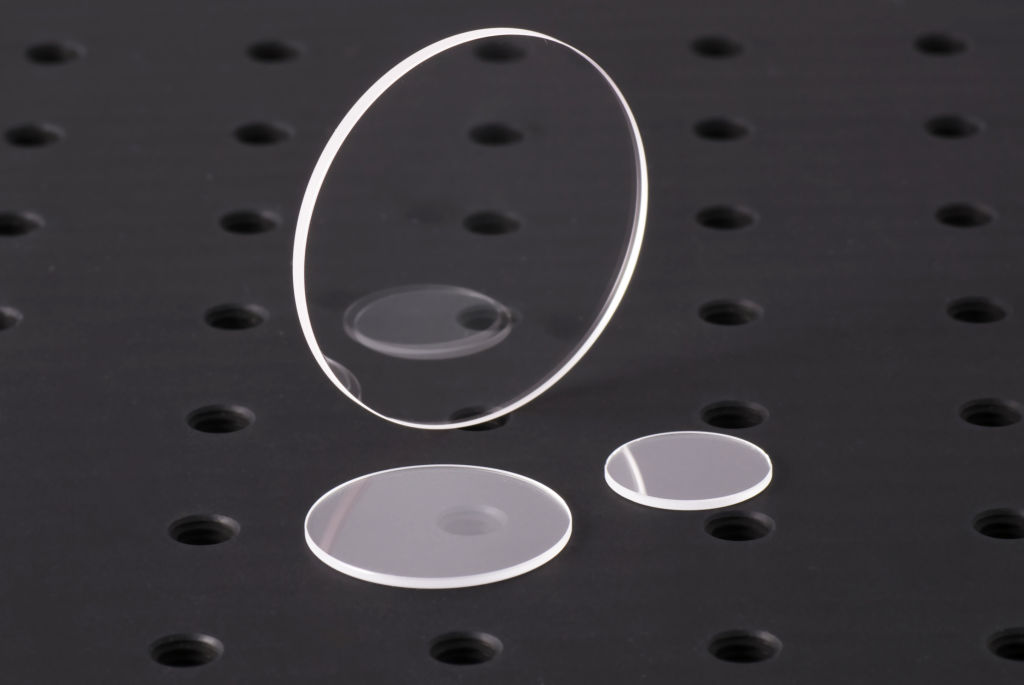

Sapphire windows
Description
Sapphire is an outstanding material for windows with extraordinary mechanical properties and transparency range (from around 200nm to over 5 microns) together with temperature usability to 2000°C. Sapphire is often chosen for its exceptional abrasion resistance. It is also commonly used for pressure windows, its very high tensile strength enabling a large aperture-to-thickness ratio.
|
Diameter |
+0, -0.2mm |
|
Thickness |
±0.1mm |
|
Flatness |
2-5λ |
|
Material data |
- Mounting (items up to 50mm dia.)
- AR coating
- Mounting in camera filter rings (See camera lens and camera filter holders)
For more details of your modification needs please enquire.
| Item code | Diameter (mm) | Thickness (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|
| 25 GA 00 | 25 | 1 | TBA | Send us a stock query | |||
| 40 GA 00 | 40 | 2 | £122.09 | ||||
| 16 GA 00 | 16 | 1 | £30.98 | ||||
| 10 GA 00 | 10 | 1 | £15.13 | ||||
For more information regarding stock availability icons, please see our shipping page.
