Crystal polarisers
Description
The basic Glan-Taylor polarising prism gives both excellent extinction and high transmittance over a wide wavelength range. The form with side faces polished is useful as a polarising beamsplitter or for high powers.
The high-transmittance type, also with side windows, has all four surfaces at Brewster's angle for the transmitted beam, so reflection losses are negligible.
The Wollaston polarising beamsplitter, a cemented type, deviates the two polarisation components of a beam at angles ±10° from the input direction, with a small chromatic dispersion.
|
Material |
Calcite (CaCO3) |
|
Wavelength range |
350-2800nm |
|
Face flatness* |
λ/8 |
*Manufacturer's data
- Rochon,Glan-Thompson and other designs
- Quartz,MgF2 and other materials
- Special sizes,mounts etc.
- AR coating (by special quotation)
For more details of your modification needs please enquire.
Most types are also listed mounted in flanged clevis mounts; these fit directly, for instance, into our rotating holders and TubeMount cells and similar mounts, whilst still allowing access to the reflected beam.
| Item code | Nominal aperture (mm) | Acceptance angle | Peak trans.* (%) | Extinction ratio* | Max.power* (continuous) (W/cm²) | Max.power* (pulsed) (MW/cm²) | Type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 JL 10 | 10 x 10 | ±4° | 88 | 10⁵ | 100 | 200 | Glan-Taylor with side windows | TBA | Send us a stock query | |||
| 11 JL 10 | 10 x 10 | ±4° | 88 | 10⁵ | 10 | 20 | Glan-Taylor | TBA | Send us a stock query | |||
| 03 JL 10 | 10 x 10 | ±4° | 88 | 10⁵ | 100 | 200 | Glan-Taylor with side windows | TBA | Send us a stock query | |||
| 01 JL 10 | 10 x 10 | ±4° | 88 | 10⁵ | 10 | 20 | Glan-Taylor | TBA | Send us a stock query | |||
| 01 JL 07 | 7 x 7 | ±4° | 88 | 10⁵ | 10 | 20 | Glan-Taylor | TBA | Send us a stock query | |||

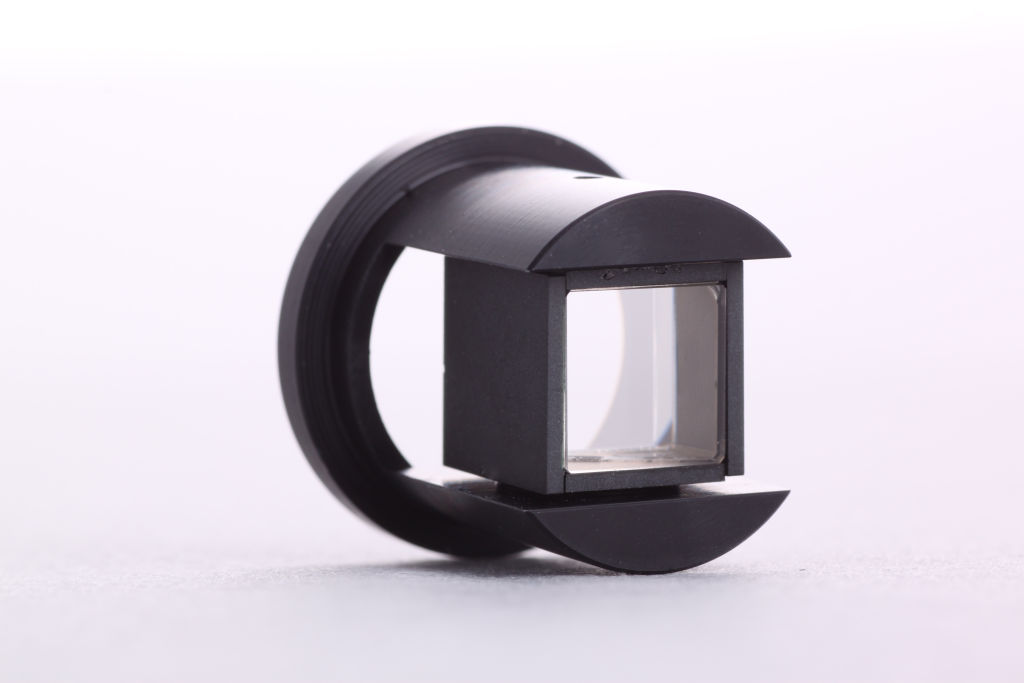

| 15 JL 10 | 10 x 10 | ±20° | 90 | 10⁴ | 1 | - | Wollaston, beamsplitting | £468.88 | ||||
| 05 JL 10 | 10 x 10 | ±20° | 90 | 10⁴ | 1 | - | Wollaston, beamsplitting | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
