Camera microscopes
Description

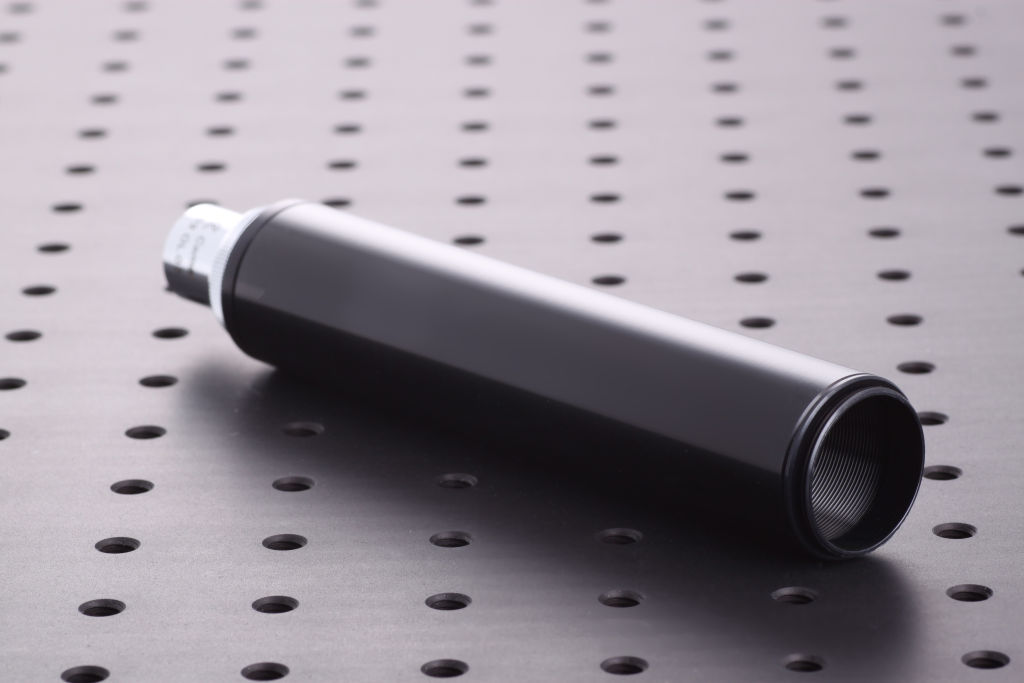

These visual and camera microscopes are convenient for building a wide range of industrial vision and inspection systems. We list both empty tubes accepting standard microscope optics and ready-made systems. All tubes are 28mm diameter.
The camera systems have the standard 1”-32 thread to screw directly into any C-mount or CS-mount camera.
Field of view data below is given for a 1/2" camera; to calculate field of view for a 1/3" camera multiply that shown in table by 0.75; for 2/3" by 1.375 and for 1" by 2.
Many different configurations can be made up from our TubeMount system.
For more details of your modification needs please enquire.
| Item code | Mag. | Field of view (½” camera) (mm) | Overall length (mm) | Working distance (mm) | F/No (image side) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 TU 00 | – | (without optics) | 130 | (tube only) | – | £71.03 | ||||
| 12 TU 10 | 10 | 0.64 x 0.48 | 169 | 6.5 | 20 | TBA | Send us a stock query | |||
| 12 TU 04 | 4 | 1.6 x 1.2 | 157 | 18.5 | 20 | TBA | Send us a stock query | |||
| 12 TU 03 | 3 | 2.1 x 1.6 | 154 | 26 | 22 | TBA | Send us a stock query | |||
| 12 TU 02 | 2 | 3.2 x 2.4 | 154 | 68 | 20 | TBA | Send us a stock query | |||
| 12 TU 01 | 1 | 6.4 x 4.8 | 154 | 125 | 13 | TBA | Send us a stock query | |||
