Platforms
Description

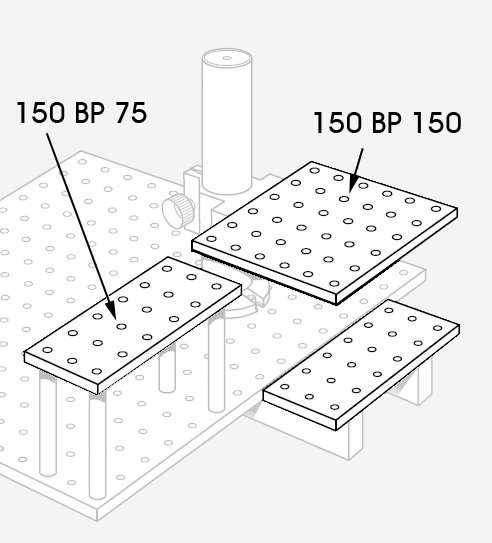

These small baseplates are particulary useful with direct-mounted components to construct optical subassemblies in a compact form. They can be stood off above a breadboard, optical table etc. using the post listed. Alternatively the captive screws 16 XW 16 can be used to mount them vertically on brackets 02 XT 65 or 40 RM 00, or direct to stages, optical tables, rods, roc carriers etc. They can also be joined to one another or to breadboards, using subframe bars.
They are machined from aluminium with a black finish and have the standard 25mm grid of M6 holes.
| Item code | Dimensions (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|

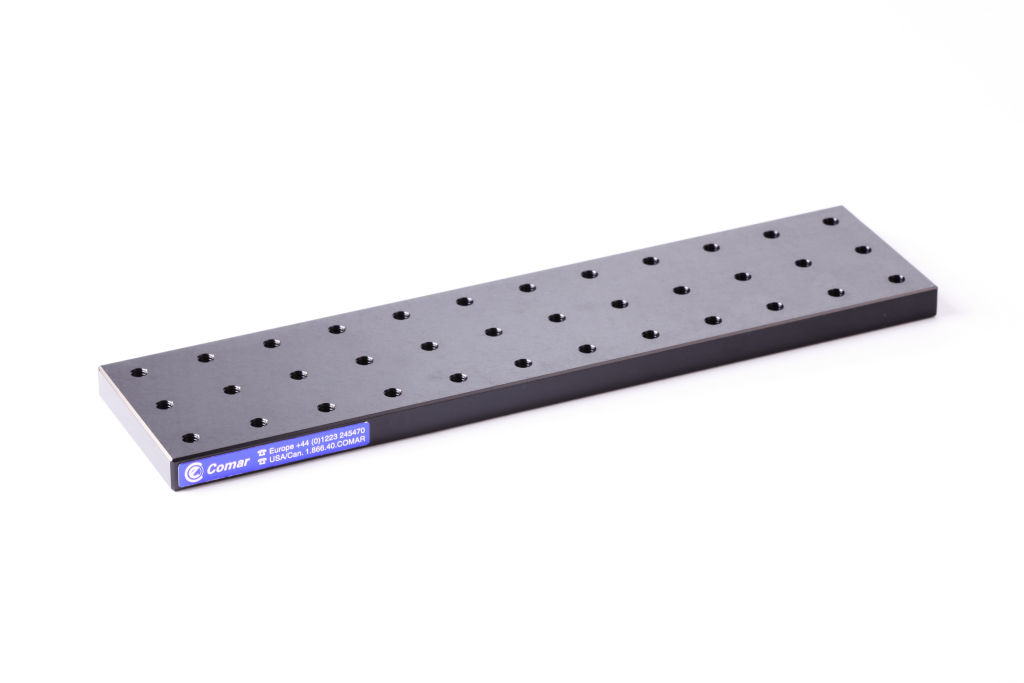

| 300 BP 75 | 298 x 73 x 12.7 | £92.81 | ||||

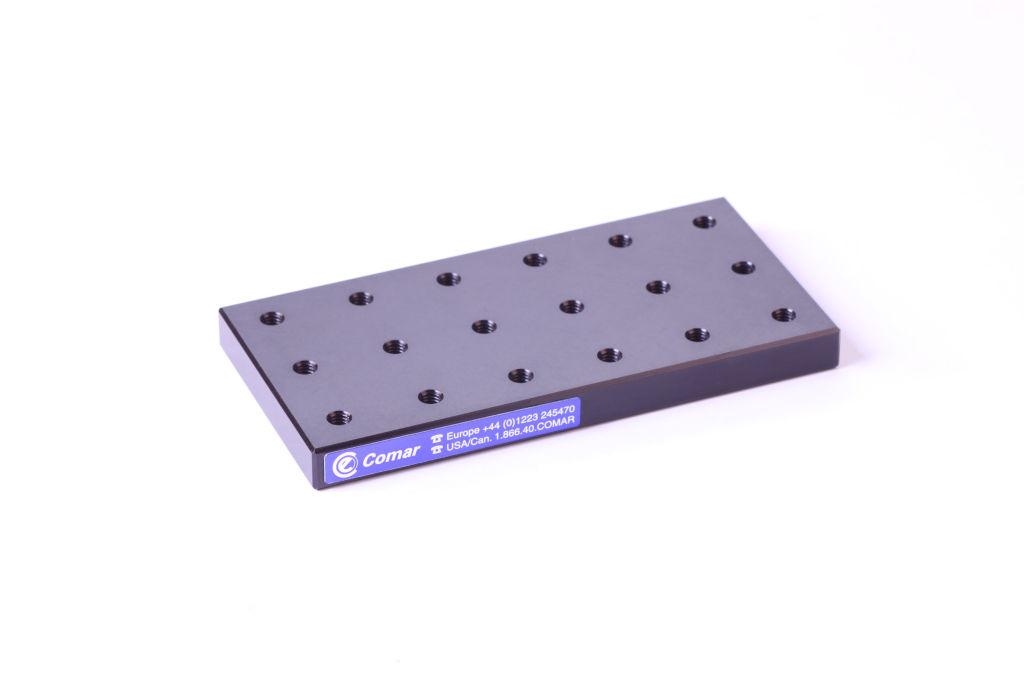

| 150 BP 75 | 148 x 73 x 12.7 | £49.37 | ||||

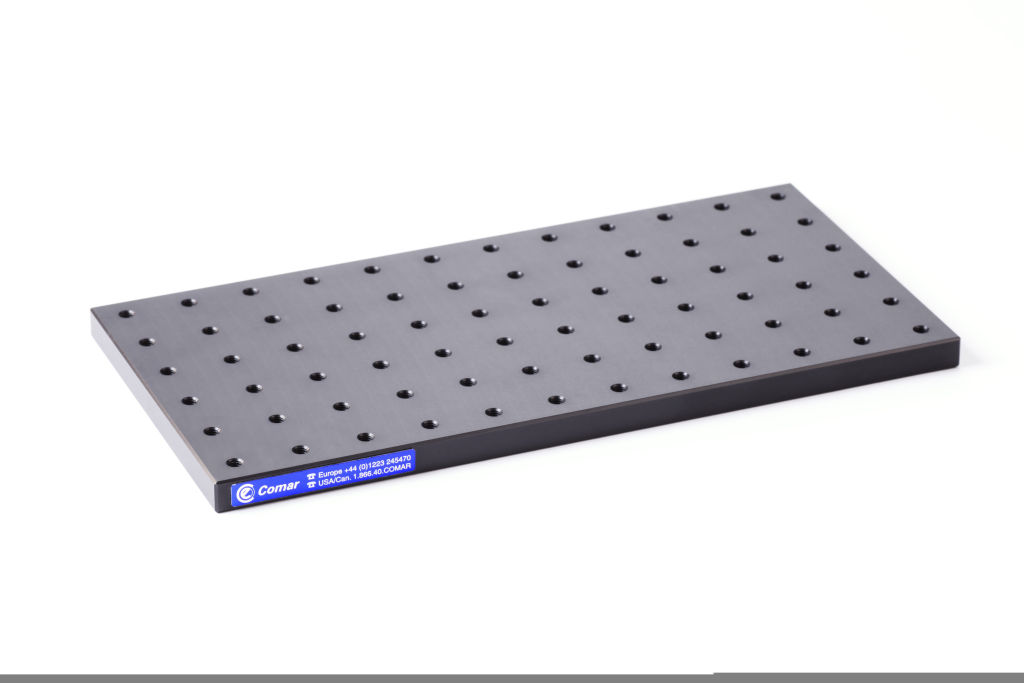

| 300 BP 150 | 298 x 148 x 12.7 | £142.78 | ||||

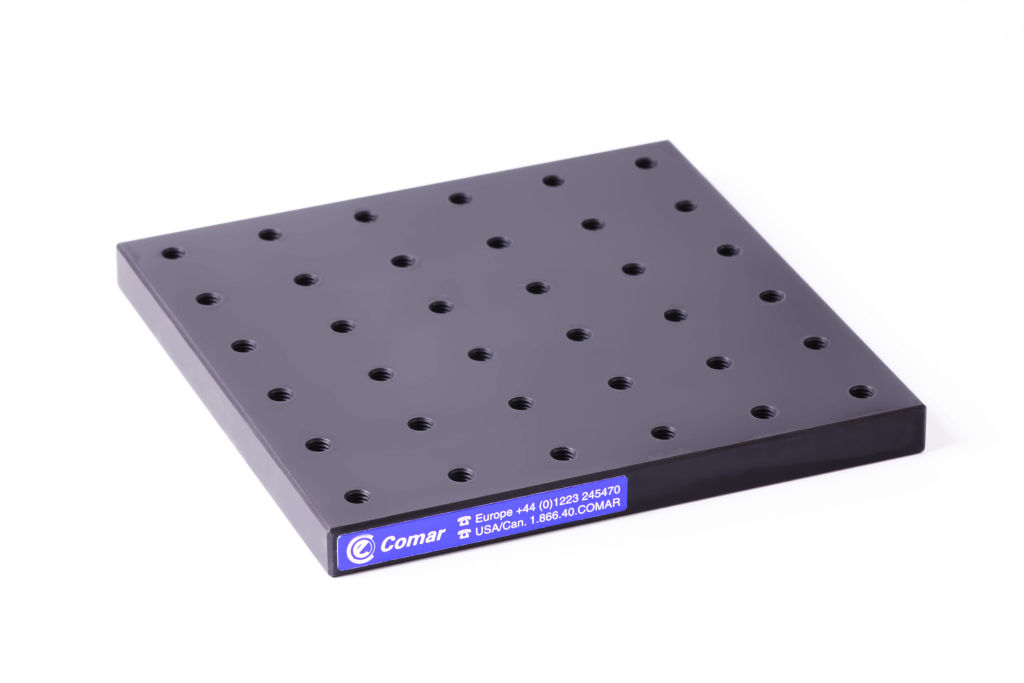

| 150 BP 150 | 148 x 148 x 12.7 | £80.10 | ||||
For more information regarding stock availability icons, please see our shipping page.
