Tilt stages
Description
These tilting platforms are of kinematic design, giving precise smooth and back-lash free tilt about one axis of up to ±3.8o. The larger stage has a micrometer drive and the smaller a fine pinch screw. They have standard hole patterns and are stackable with translation and other stages.
| Item code | Length x width (mm) | Drive type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|

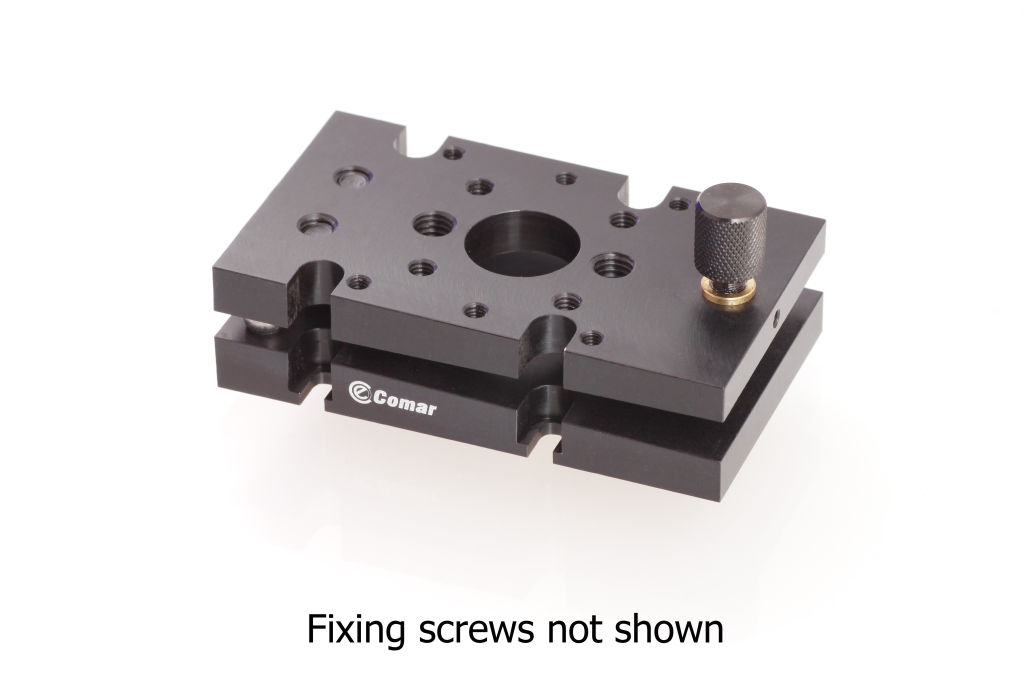

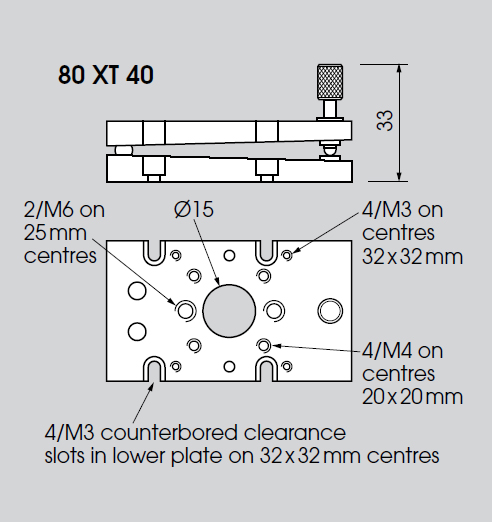

| 80 XT 40 | 70 x 40 | - | TBA | Send us a stock query | |||

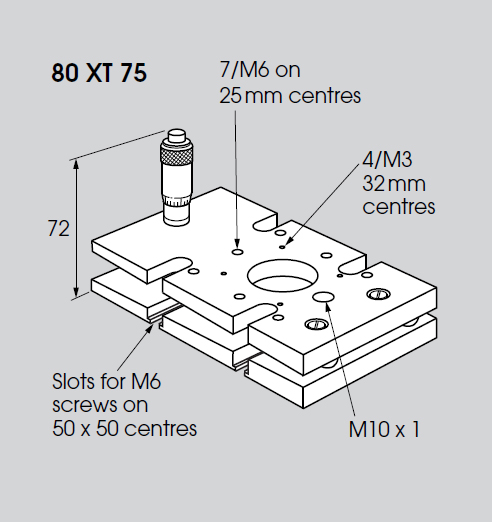

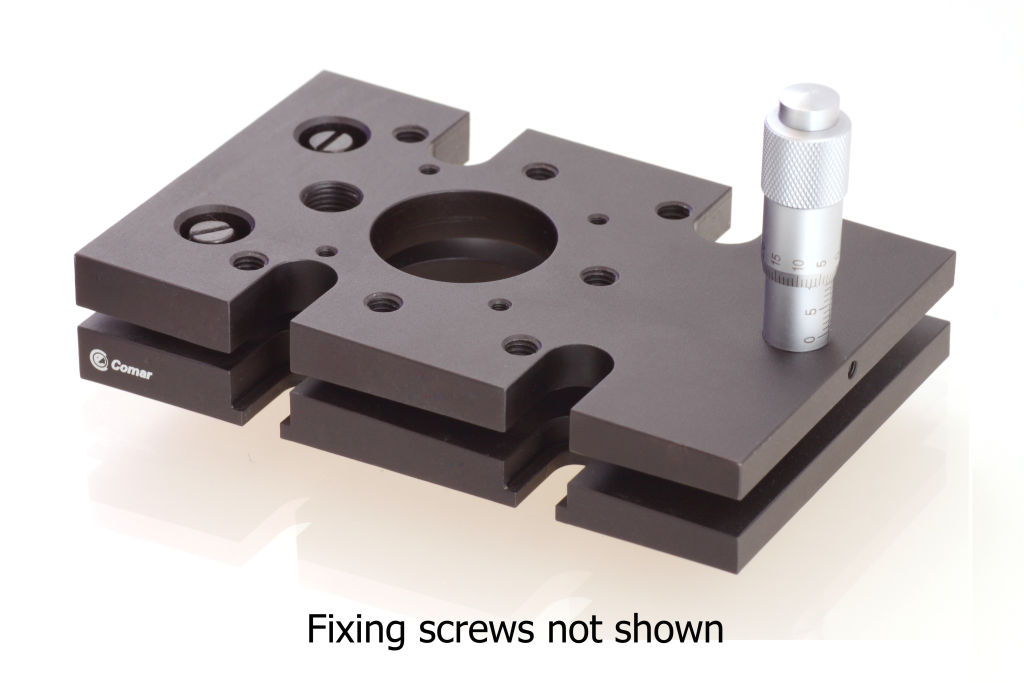

| 80 XT 75 | 120 x 75 | - | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
