Elevation stages
Description

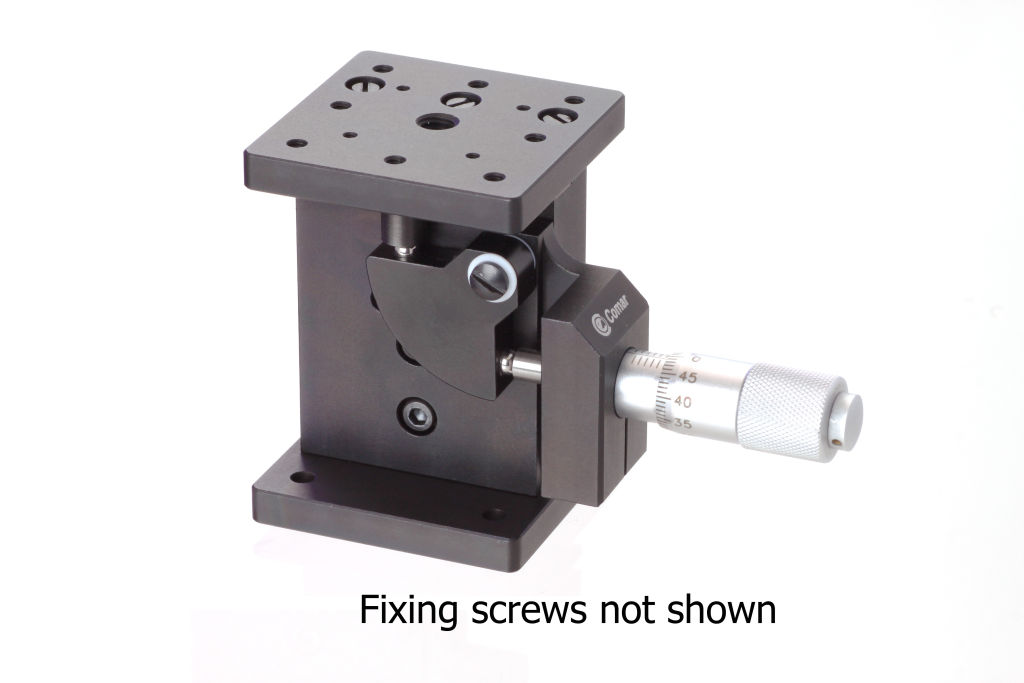

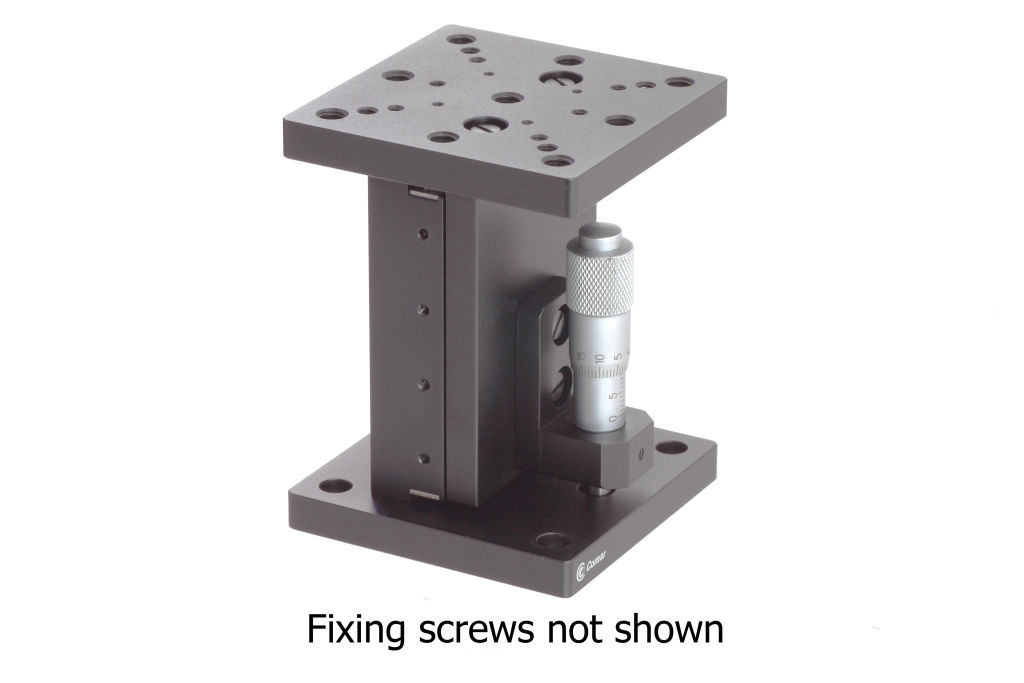

These units provide a stable platform of variable height. The 48 XT 65 allows the most precise movement, being driven directly by a micrometer head operating in the direction of motion, and incorporating a precision preloaded ball slide. The 50 XT 45 has a dovetail slide and achieves greater compactness by mounting the micrometer horizontally and driving via a 'bellcrank'.

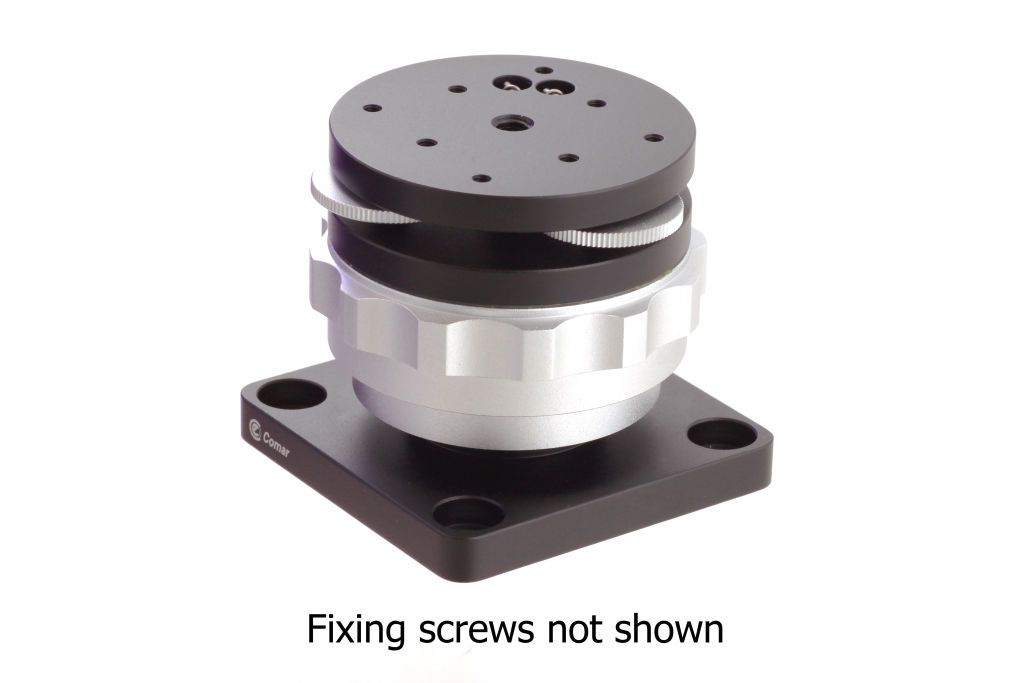

The screw-jack stages 52 XT 40 and 54 XT 65 are elevated by a large knurled nut driving a central screwed member, without roating the platform. The much larger 54 XT 65 also permits tilting of the platform over ± 3o in two directions, useful for acurate levelling.
All have standard arrays of tapped holes in the platform to accept other optomechanics.
| Item code | Platform dimens. (mm) | Overall dimensions (mm) | Height range (mm) | Description | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|

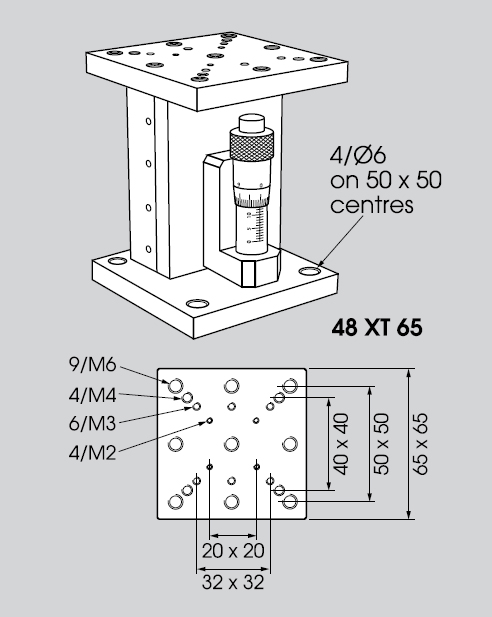

| 48 XT 65 | 65 x 65 | 65 x 65 | 85-97 | Vertical slide stage (precision) | TBA | Send us a stock query | |||

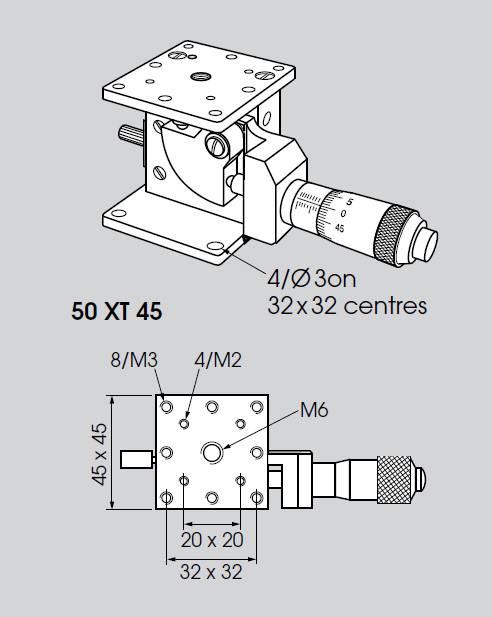

| 50 XT 45 | 45 x 45 | 104 x 45 | 56-67 | Bellcrank stage (dovetail) | TBA | Send us a stock query | |||

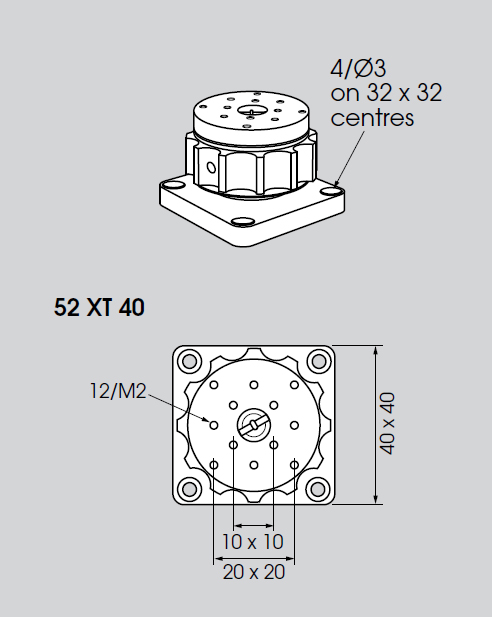

| 52 XT 40 | 33 dia. | 40 x 40 | 28-33 | Screw-jack stage | TBA | Send us a stock query | |||

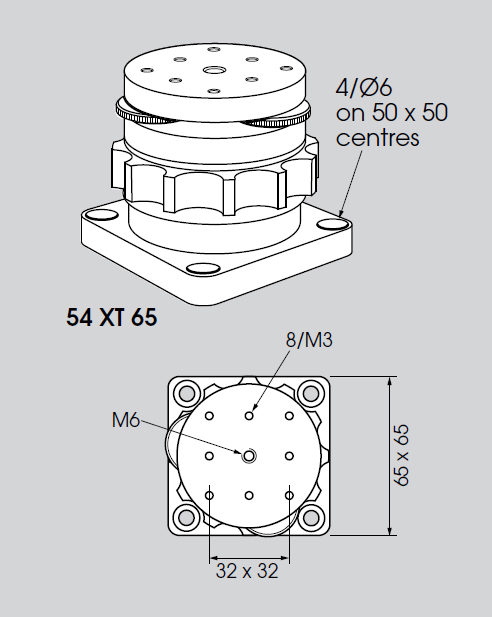

| 54 XT 65 | 58 dia. | 65 x 65 | 53-63 | Screw-jack with tilt motions | £131.65 | ||||
For more information regarding stock availability icons, please see our shipping page.
