Iris diaphragms
Description
Iris diaphragms are commonly used in optical systems to control light-throughput or f/number. The diaphragms in our range have blackened brass bodies and blackened steel leaves. The IZ fully closing types have two sets of leaves that overlap on closing thus completely blocking the beam. As the sets of leaves are longitudinally separated, these are best used with well-collimated light.
| Item code | Maximum aperture (mm) | Minimum aperture (mm) | Thickness (mm) | Outside diameter | Pin length (mm) | Number of leaves | Type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37 IZ 54 | 37 | 0 | 7.5 | 54 | 13 | 16 | Fully closing | £91.30 | ||||
| 37 IC 53 | 37 | 1.2 | 6 | 53 | 12 | 16 | Standard | £68.95 | ||||
| 42 IC 58 | 42 | 1.2 | 6.5 | 58 | 12 | 18 | Standard | TBA | Send us a stock query | |||
| 50 IC 70 | 50 | 2 | 7.5 | 70 | 12 | 16 | Standard | £118.00 | ||||
| 58 IC 80 | 58 | 3 | 8 | 80 | 12 | 18 | Standard | £162.75 | ||||
| 75 IC 100 | 75 | 4 | 9 | 100 | 15 | 20 | Standard | £235.50 | ||||

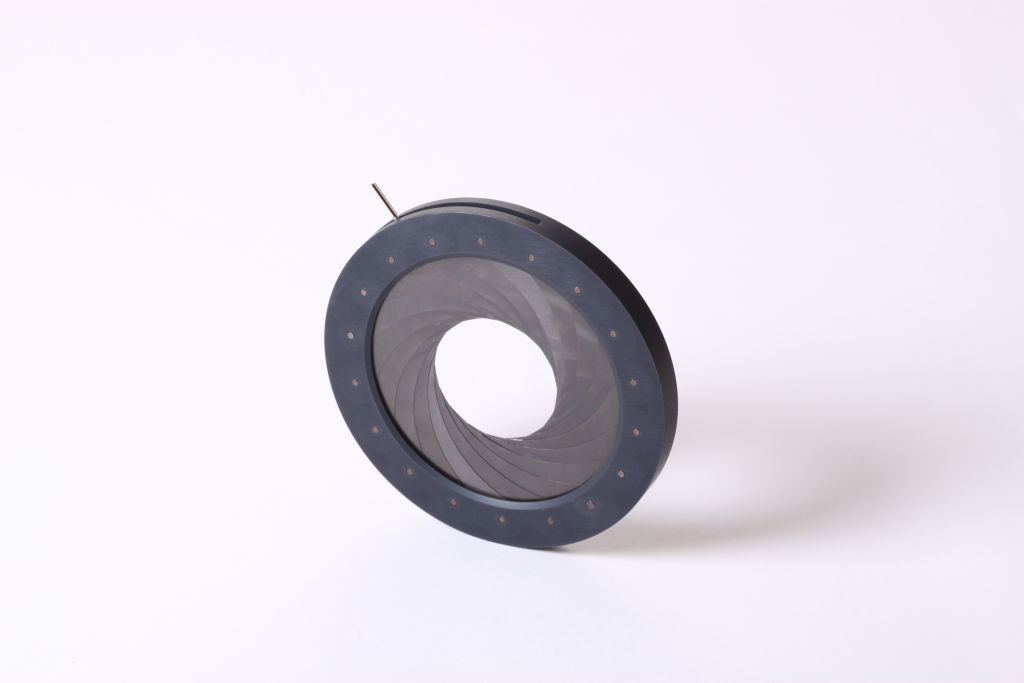

| 120 IC 165 | 120 | 6 | 15 | 165 | 30 | 18 | Standard | £396.89 | ||||
| 225 IC 300 | 225 | 12 | 18 | 300 | 30 | 18 | Standard | TBA | Send us a stock query | |||
| 12 IZ 21 | 12 | 0 | 6 | 21 | 11 | 10 | Fully closing | £58.69 | ||||
| 34 IC 49 | 34 | 1 | 6.5 | 49 | 12 | 14 | Standard | £68.75 | ||||
| 28 IC 40 | 28 | 1.2 | 5.5 | 40 | 12 | 16 | Standard | TBA | Send us a stock query | |||
| 25 IZ 38 | 25 | 0 | 6 | 38 | 13 | 14 | Fully closing | TBA | Send us a stock query | |||
| 08 IC 15 | 8 | 0.7 | 4.5 | 14.8 | 10 | 8 | Standard | £40.95 | ||||
| 05 IC 10 | 5 | 0.7 | 4.5 | 10 | 10 | 6 | Standard | £75.55 | ||||
| 15 IC 24 | 15 | 0.8 | 5 | 24 | 10 | 12 | Standard | £39.95 | ||||
| 18 IC 28 | 18 | 0.8 | 5 | 28 | 12 | 12 | Standard | £45.75 | ||||
| 20 IC 30 | 20 | 0.8 | 5.5 | 30 | 12 | 12 | Standard | TBA | Send us a stock query | |||
| 22 IC 33 | 22 | 0.8 | 5.5 | 33 | 12 | 14 | Standard | TBA | Send us a stock query | |||
| 25 IC 37 | 25 | 0.8 | 5.5 | 37 | 12 | 14 | Standard | £48.95 | ||||
| 12 IC 20 | 12 | 0.8 | 5 | 19.8 | 11 | 10 | Standard | £39.84 | ||||
For more information regarding stock availability icons, please see our shipping page.
