Eyepiece graticules
Description
Eyepiece graticules include scales for measuring linear dimensions, circles for estimating diameters and radii, and a protractor for angles. Scales can be calibrated by comparison with a stage graticule, supplied in convenient microscope slide format.
| Item code | Dimensions (mm) | Pattern | Line width (μm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|
| 02 GG 19 | 19 dia. | Cross lines | 20 | TBA | Send us a stock query | |||
| 05 GG 19 | 19 dia. | Scale 5mm in 0.05mm divisions | 10 | £27.23 | ||||

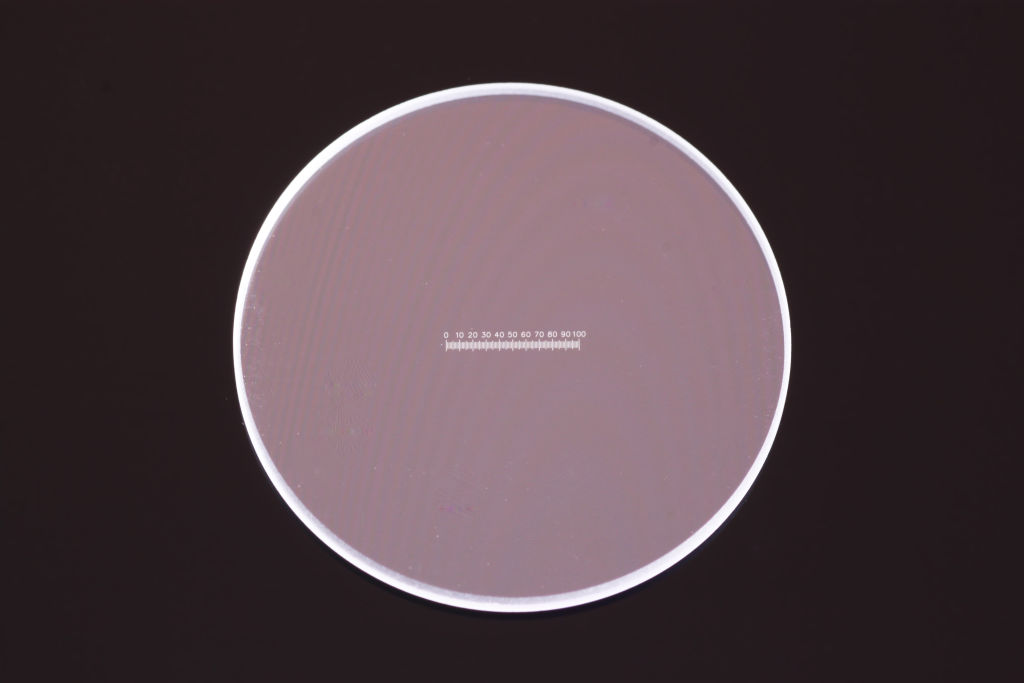

| 05 GG 21 | 21 dia. | Scale 5mm in 0.05mm divisions | 10 | £27.23 | ||||
| 06 GG 19 | 19 dia. | Scale 10mm in 0.1mm divisions | 10 | £27.23 | ||||

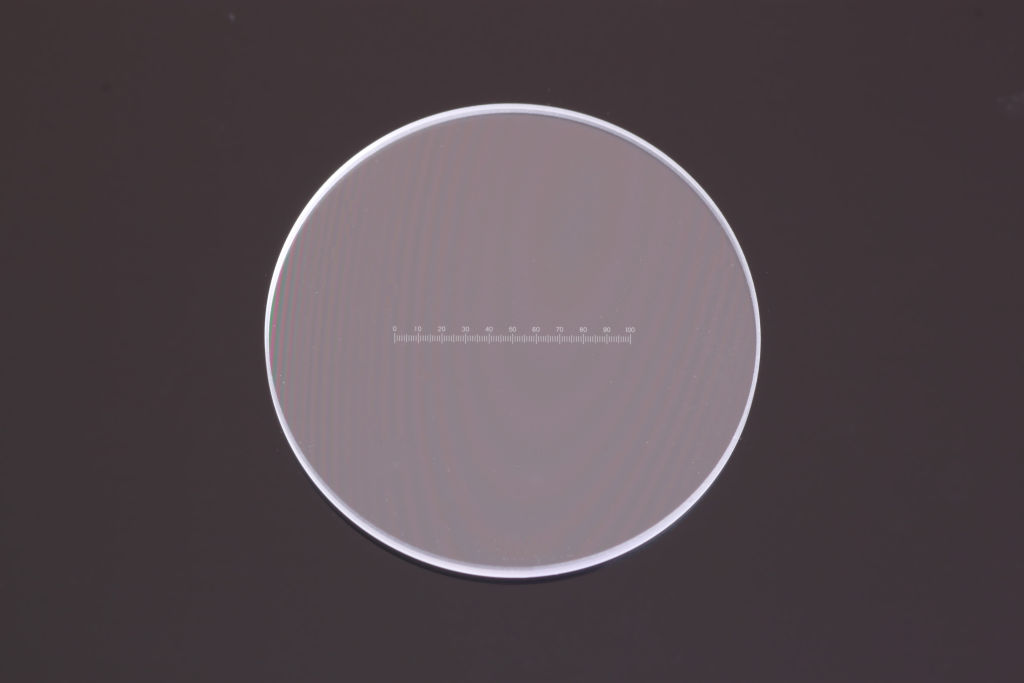

| 06 GG 21 | 21 dia. | Scale 10mm in 0.1mm divisions | 10 | TBA | Send us a stock query | |||
| 07 GG 19 | 19 dia. | Crossed scales 10mm/0.1mm div. | 10 | £47.55 | ||||
| 07 GG 21 | 21 dia. | Crossed scales 10mm/0.1mm div. | 10 | TBA | Send us a stock query | |||
| 08 GG 19 | 19 dia. | Grid 10 x 10mm of 0.1mm squares | 10 | £27.23 | ||||

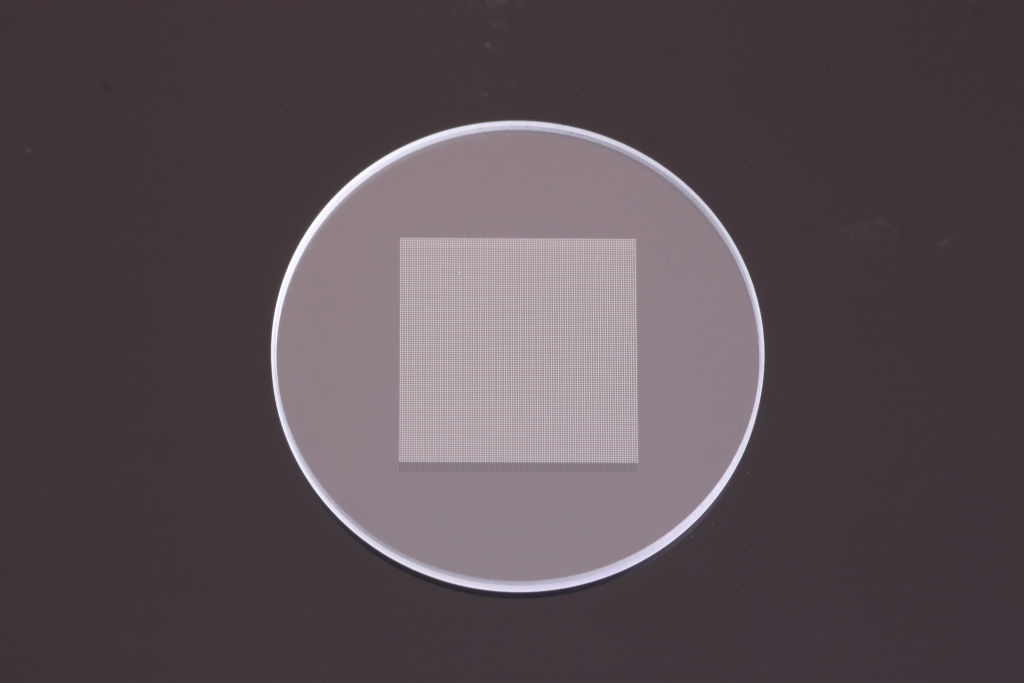

| 08 GG 21 | 21 dia. | Grid 10 x 10mm of 0.1mm squares | 10 | £43.08 | ||||
| 10 GG 19 | 19 dia. | Protractor 10mm dia. | 10 | £50.82 | ||||

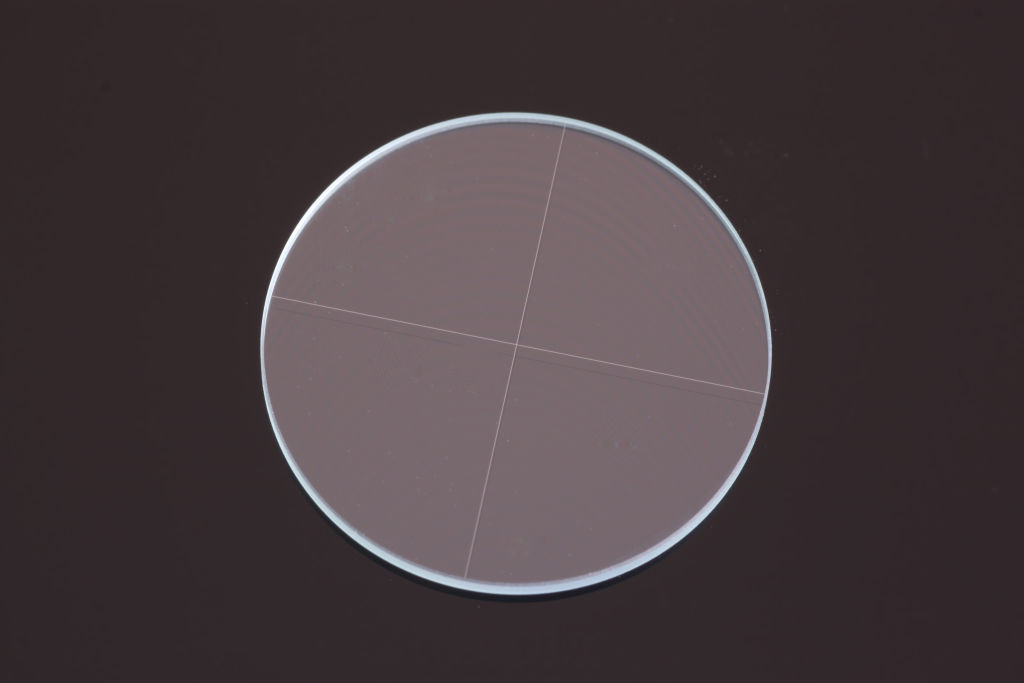

| 00 GG 21 | 21 dia. | Cross lines | 10 | £25.41 | ||||

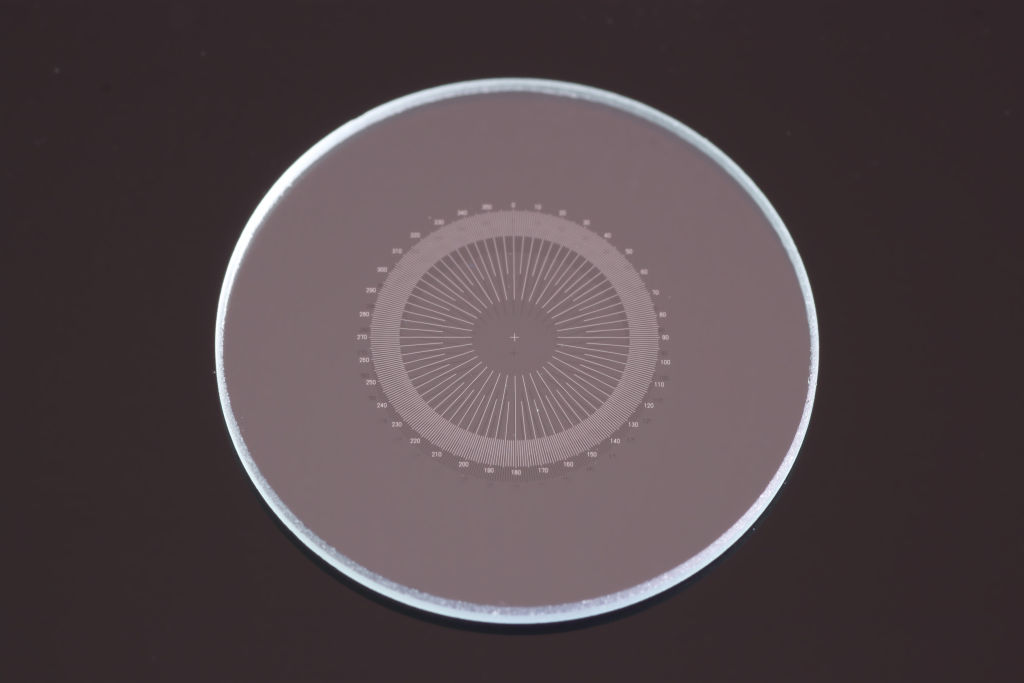

| 10 GG 21 | 21 dia. | Protractor 10mm dia. | 10 | £102.00 | ||||
| 12 GG 19 | 19 dia. | Circles 1-16mm dia. | 5/10 | TBA | Send us a stock query | |||

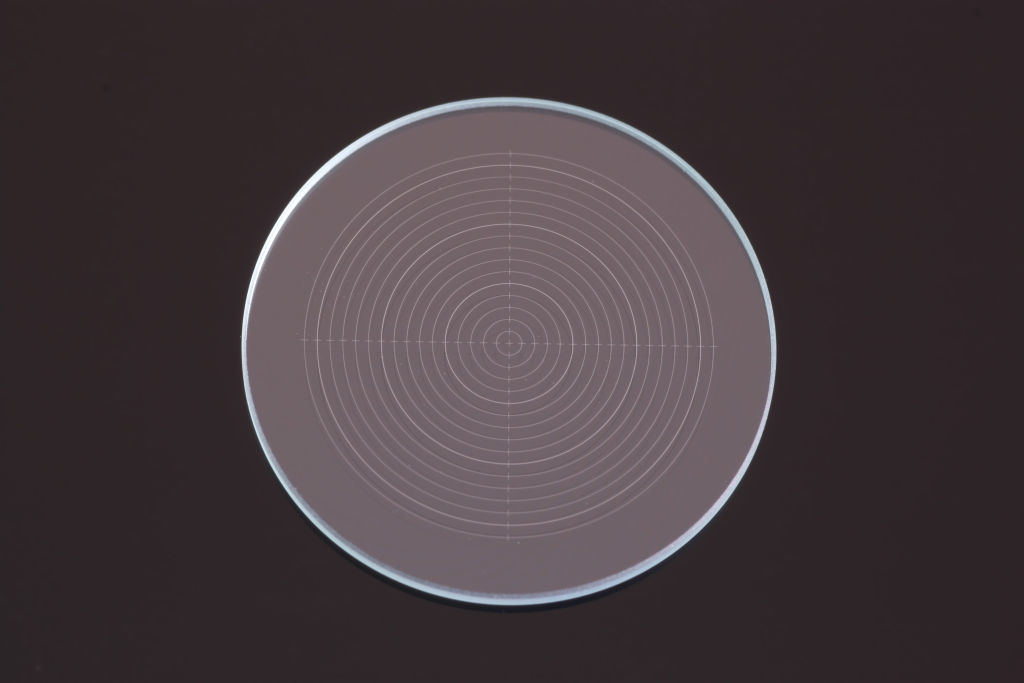

| 12 GG 21 | 21 dia. | Circles 1-16mm dia. | 5/10 | £62.32 | ||||
| 00 GG 19 | 19 dia. | Cross lines | 10 | TBA | Send us a stock query | |||

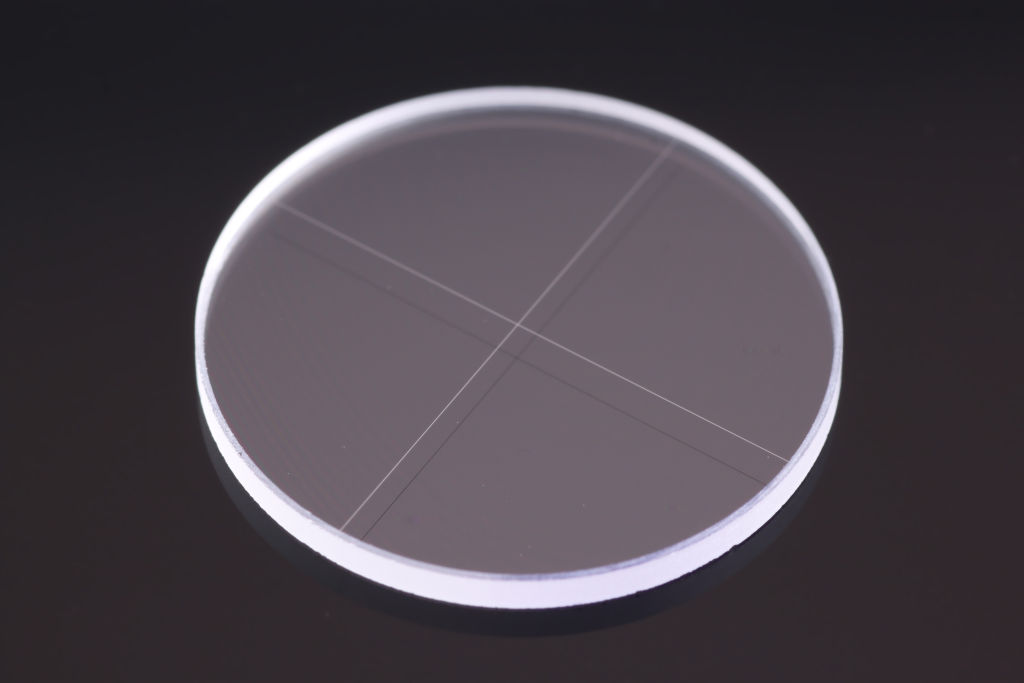

| 02 GG 21 | 21 dia. | Cross lines | 20 | TBA | Send us a stock query | |||
For more information regarding stock availability icons, please see our shipping page.
