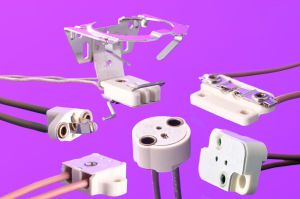

Lampholders
Description

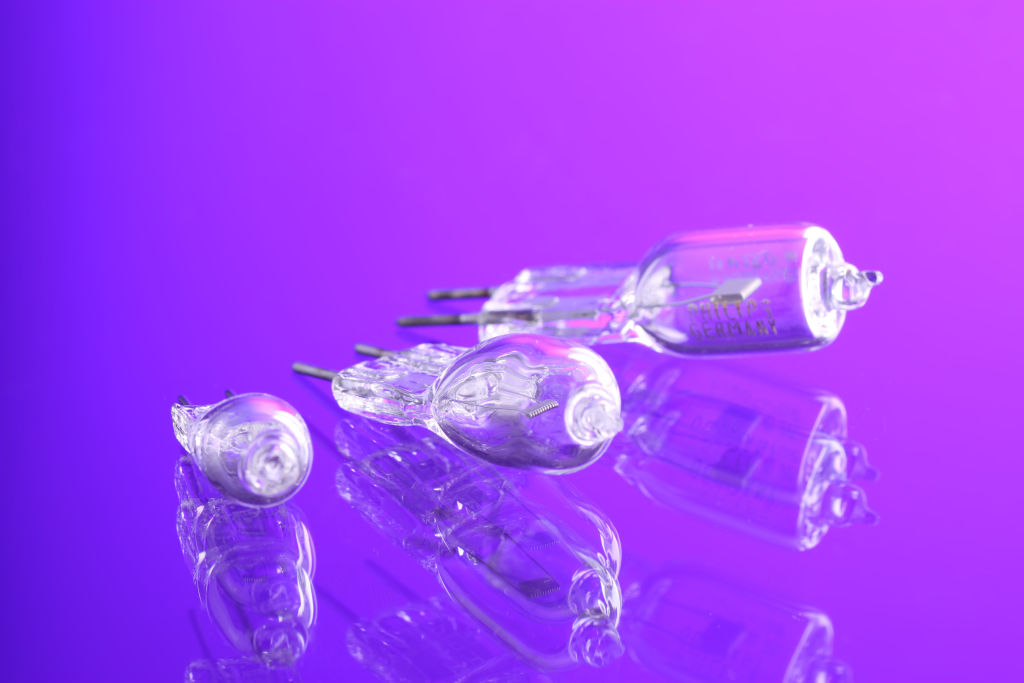

These ceramic holders are suitable for our tungsten-halogen lamps, and other lamps with the listed base types up to the ratings shown. They have leads with high-temperature insulation and offer a range of mounting configurations, including some which allow a condenser lens to be placed very close to the lamp.
Many other varieties are available, please enquire.
| Item code | Suitable for lamp base types | Dimensions L x W x D (mm) | Rated Voltage (V) | Rated current (A) | Features | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|

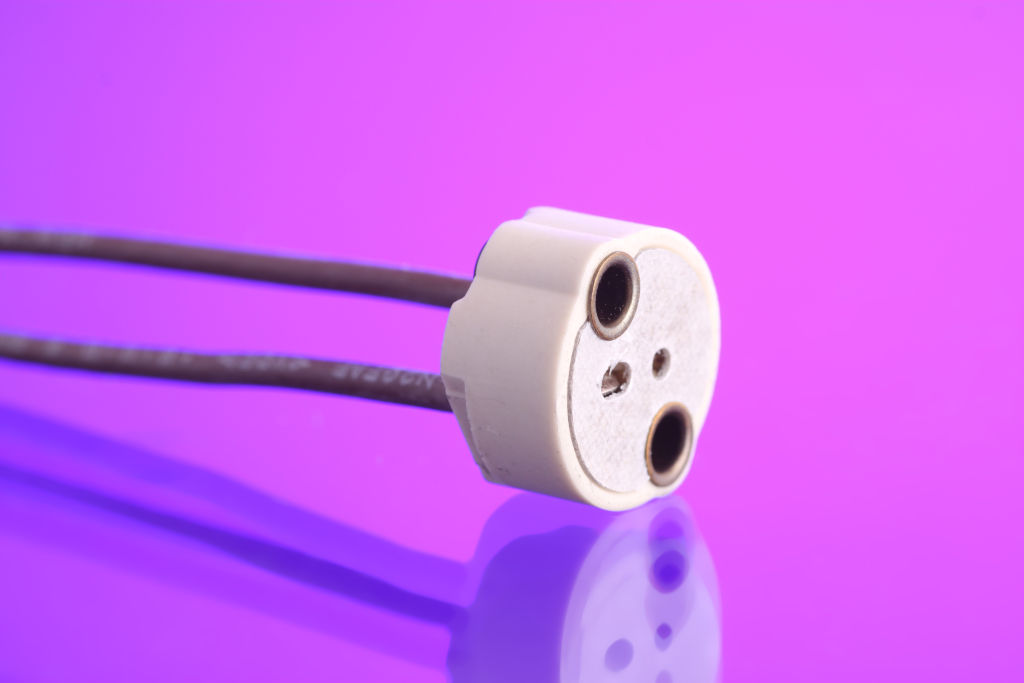

| 03 LM 03 | G3.9, G5.3, GX5.3 | 17 x 17 x 10 | 250 | 12.5 | Requires separate support for reflector | £5.69 | ||||

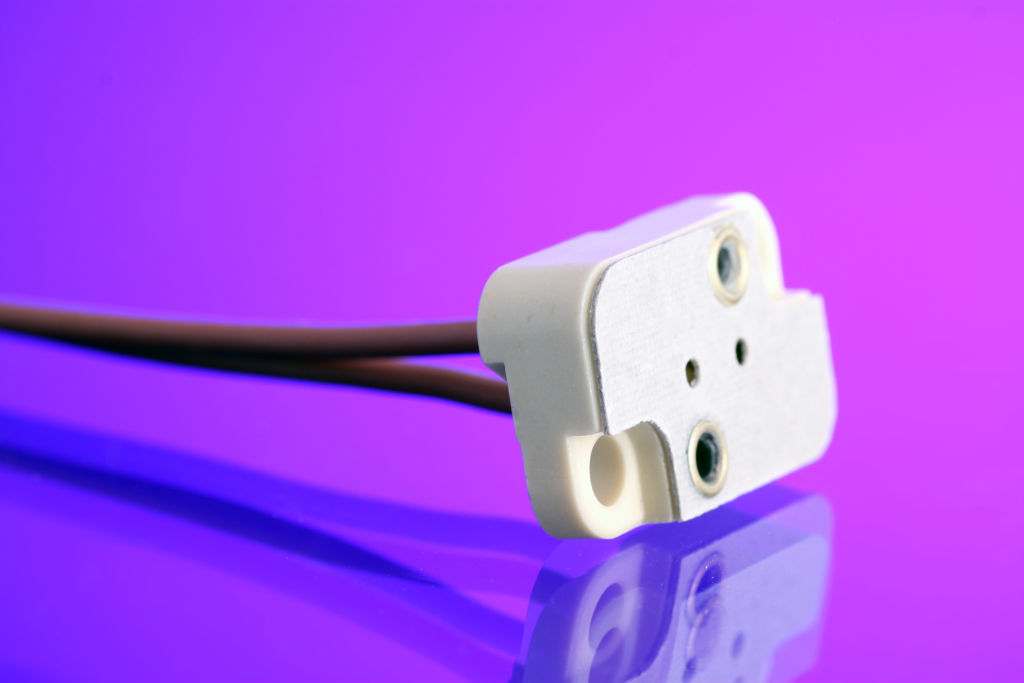

| 02 LM 04 | G6.35, GY6.35, GZ6.35 | 28 x 17 x 9 | 250 | 12.5 | Requires separate support for reflector | TBA | Send us a stock query | |||

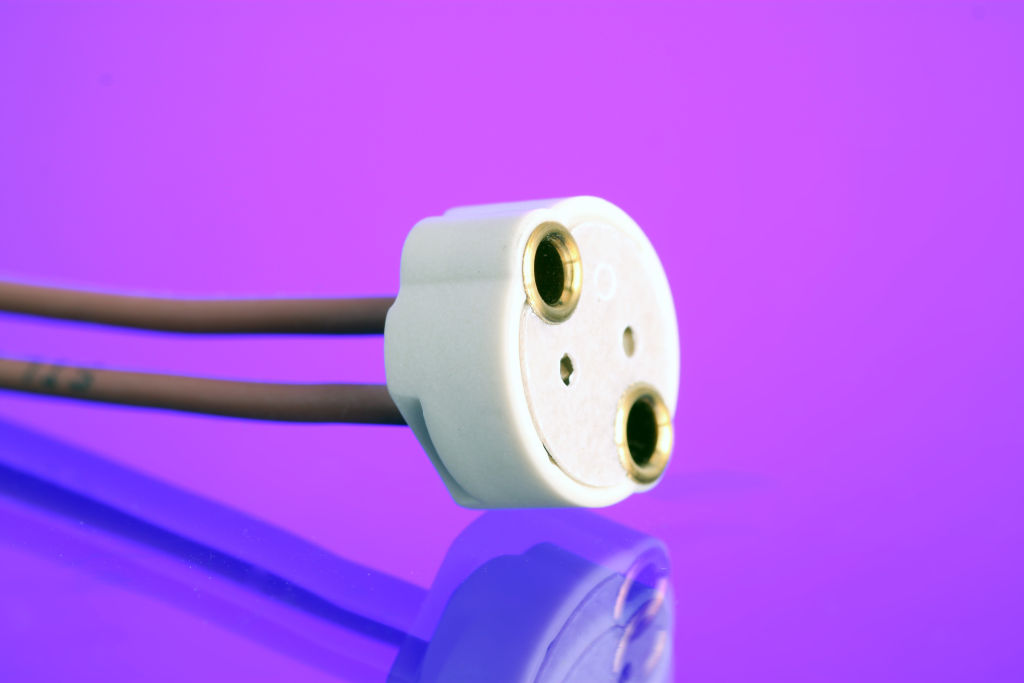

| 02 LM 03 | G6.35, GY6.35, GZ6.35 | 17 x 17 x 10 | 250 | 12.5 | Requires separate support for reflector | £5.69 | ||||
| 01 LM 03 | G4, GZ4 | 17 x 17 x 10 | 250 | 10 | Requires separate support for reflector | £5.69 | ||||
| 02 LM 07 | GY6.35 | 38 x 7 x 16 | 24 | 10 | Allows condenser lens close to lamp and side mounting | £9.92 | ||||
| 02 LM 06 | G6.35 | 38 x 7 x 16 | 24 | 10 | Allows condenser lens close to lamp and side mounting | TBA | Send us a stock query | |||
| 02 LM 05 | GZ6.35 | 60 x 57 x 49 | 250 | 10 | Supports lamp and reflector | £13.31 | ||||
For more information regarding stock availability icons, please see our shipping page.
