Hot mirrors
Description

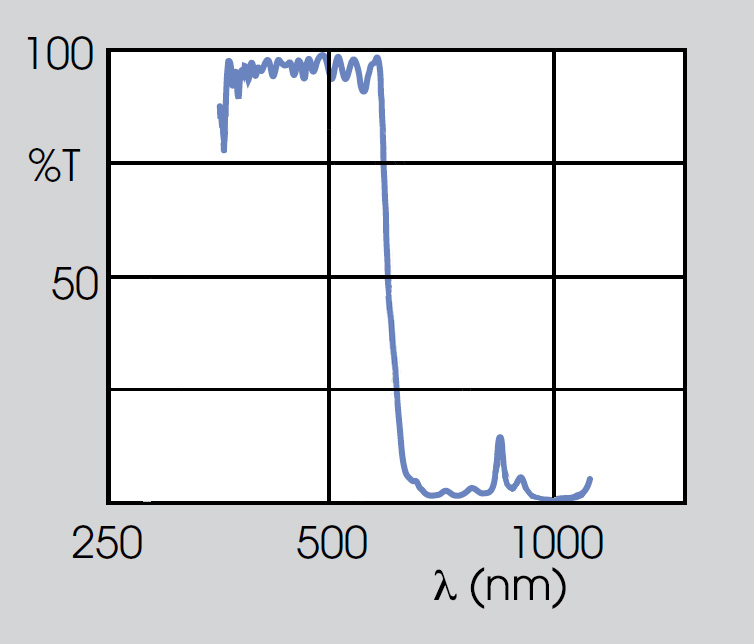

These hot mirrors have an all-dielectric multilayer coating on a borosilicate glass substrate. They efficiently reflect IR radiation and transmit the visible, with a sharply defined transition between the reflection and the transmission bands. As the absorption is negligible, they can handle high powers.
|
Diameter |
+0, -0.2mm |
|
Length, width |
±0.2mm |
|
Thickness |
±0.25mm |
|
Transmittance (0o)* |
>88% (425-675nm), |
|
Reflectance (0o)* |
>95% (760-1150nm) |
|
Substrate |
LEBG float See optical materials for details |
*Average over wavelength regions stated
- Mounting (circular items)
- Edging and cutting special sizes
- Special sizes
- Mounting in camera filter rings (See camera lens and camera filter holders)
- Larger sizes available from stick sheets
For more details of your modification needs please enquire.
| Item code | Dimensions (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|
| 730 IK 80 | 80 x 80 x 3 | TBA | Send us a stock query | |||
| 730 IK 50 | 50 x 50 | TBA | Send us a stock query | |||
| 730 IK 40 | 40 x 40 x 3 | £43.68 | ||||
| 730 IK 106 | 50 dia. x 3 | £60.38 | ||||
| 730 IK 105 | 40 dia. x 3 | £51.18 | ||||
| 730 IK 25 | 25 dia. | TBA | Send us a stock query | |||
| 730 IK 63 | 63 x 63 x 3 | £81.43 | ||||
For more information regarding stock availability icons, please see our shipping page.
