Objective and eyepiece holders
Description

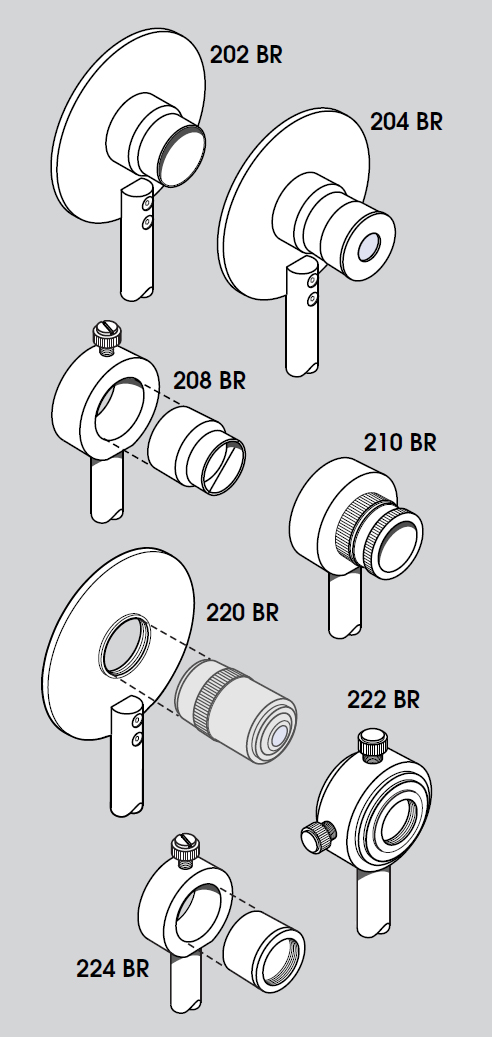

Our basic microscope objective holder is also listed complete with a Kellner eyepiece (12 EW 23). The range also includes a sliding holder allowing the eyepiece to be adjusted over a focusing range of 10mm and clamped in any position. The focusing holder is similar but has a screw movement with 0.7mm pitch allowing fine adjustments of focus.
Microscope objectives have a wide range of uses such as laser focusing as well as the traditional imaging funtion. Our range of holders includes a sliding type (similar to the sliding eyepiece mount described above), a basic fixed type and a centring type with two orthogonal screw adjustments, allowing the objective axis to be accurately positioned within a 3mm diameter area.
Alternative posts
Direct mount holders have M6 thread to accept alternative posts.
For more details of your modification needs please enquire.
| Item code | Axis height (mm) | Post length (mm) | Post diameter (mm) | Type | Mount type | Description | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 224 BR 00 | 20 | - | - | Holders for microscope objectives | Direct mount holder (no post) | Sliding holder, 10mm range | £41.14 | ||||
| 222 BR 00 | 20 | - | - | Holders for microscope objectives | Direct mount holder (no post) | Centring holder | £82.28 | ||||
| 214 BR 00 | 20 | - | - | Holders for telescope/instrument eyepieces (24.5mm dia.) | Direct mount holder (no post) | Sliding holder, 10mm range | £33.15 | ||||

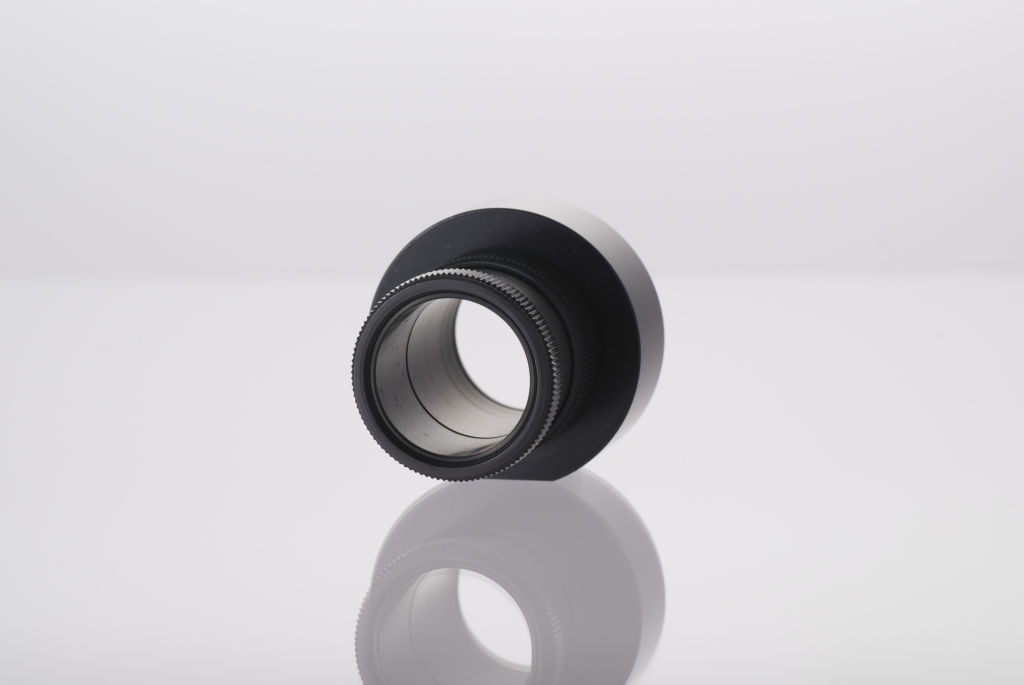

| 210 BR 00 | 20 | - | - | Holders for microscope eyepieces (23.2mm dia.) | Direct mount holder (no post) | Focusing holder, 9mm range | £54.33 | ||||

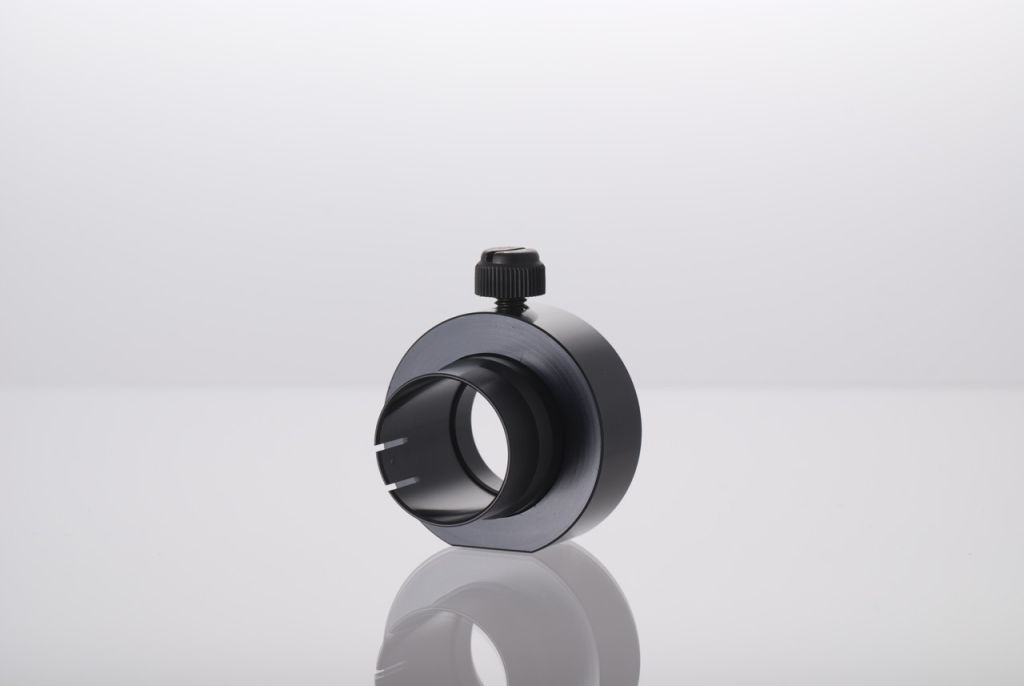

| 208 BR 00 | 20 | - | - | Holders for microscope eyepieces (23.2mm dia.) | Direct mount holder (no post) | Sliding holder, 10mm range | TBA | Send us a stock query | |||
