Translation stages (dovetail)
Description
These robust and economical stages incorporate dovetail slides and are suitable for most applications.
The basic range includes both centre-drive and side-drive models, all with clamp screws to lock the motion at any desired position. The 2-axis stages are equivalent to two crossed single-axis units but take up less space.

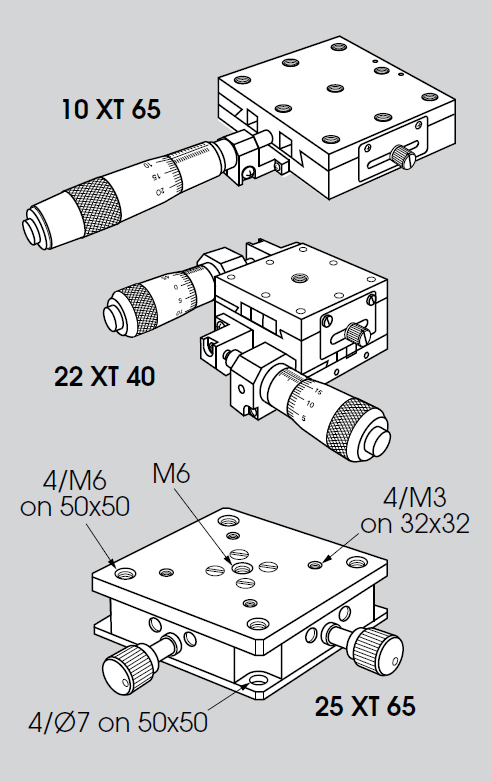

Even more compact is the 25 XT 65, which has the two motions combined within a space thinner than a basic single-axis stage.
To add a third axis, mount a stage on an angle bracket or use an elevation stage or jack.

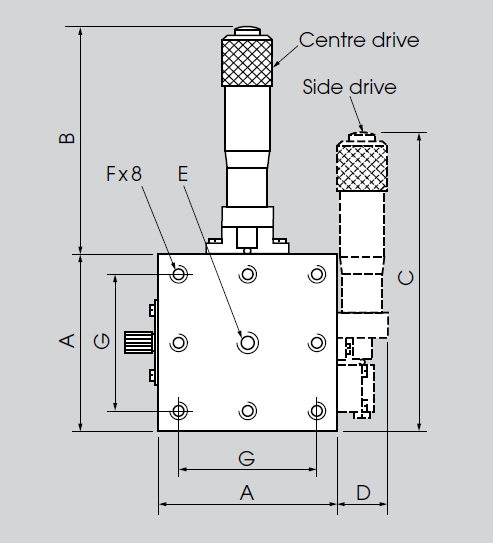

.jpg)
| Item code | Type | Drive type | Dimensions (excl. drives) (mm) | No. of axes | Travel (mm) | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|

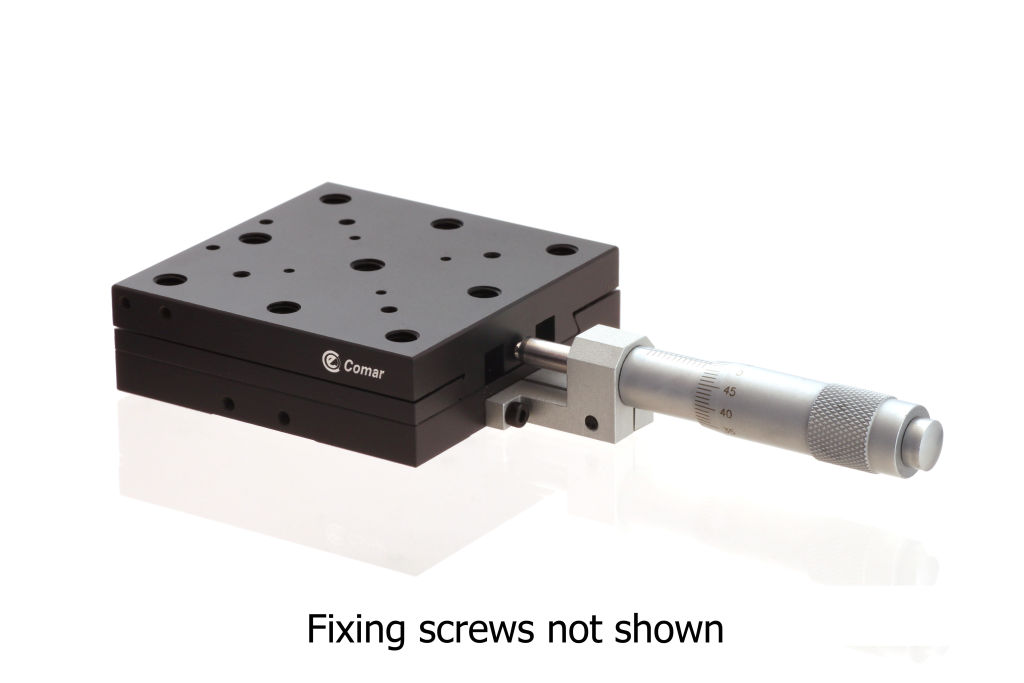

| 10 XT 65 | Centre drive | Micrometer | 65 x 65 x 20.5 | 1 | 25 | TBA | Send us a stock query | |||

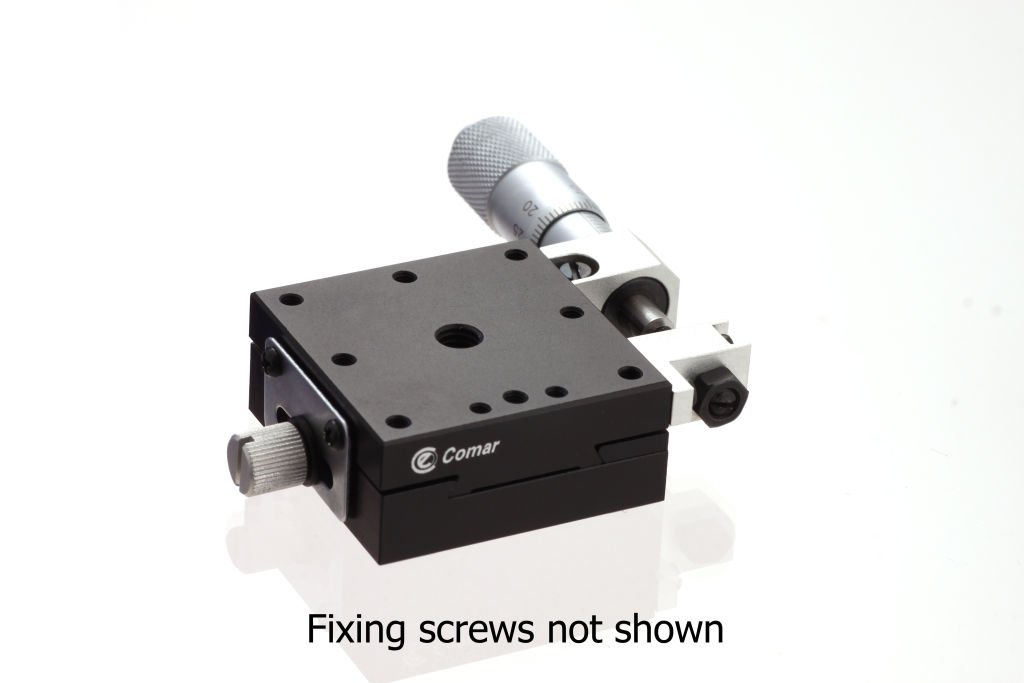

| 12 XT 40 | Side drive | Micrometer | 40 x 40 x 18 | 1 | 13 | TBA | Send us a stock query | |||

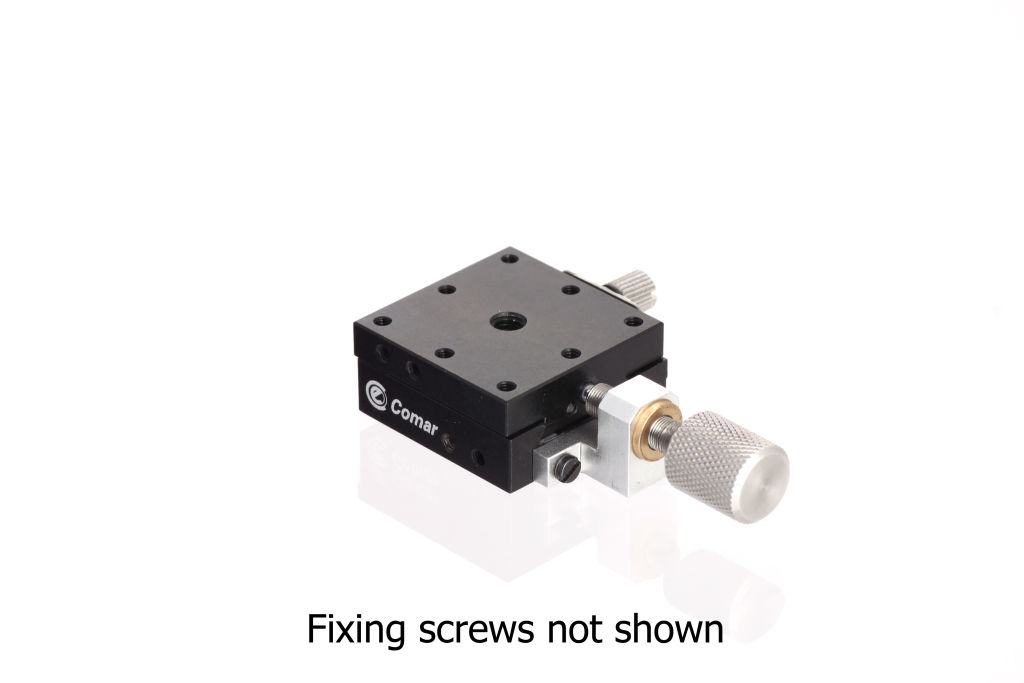

| 15 XT 25 | Centre drive | Thumbscrew | 25 x 25 x 12 | 1 | 6.5 | £99.83 | ||||

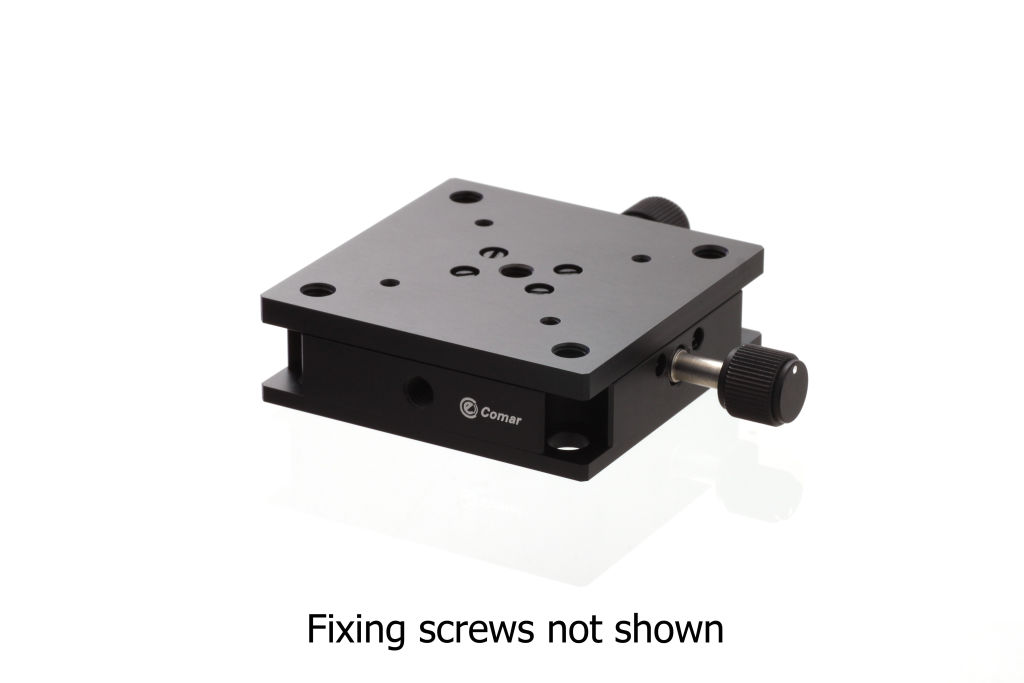

| 25 XT 65 | Compact 2-axis stage, centre drive | Thumbscrew | 65 x 65 x 20 | 2 | 4 | TBA | Send us a stock query | |||

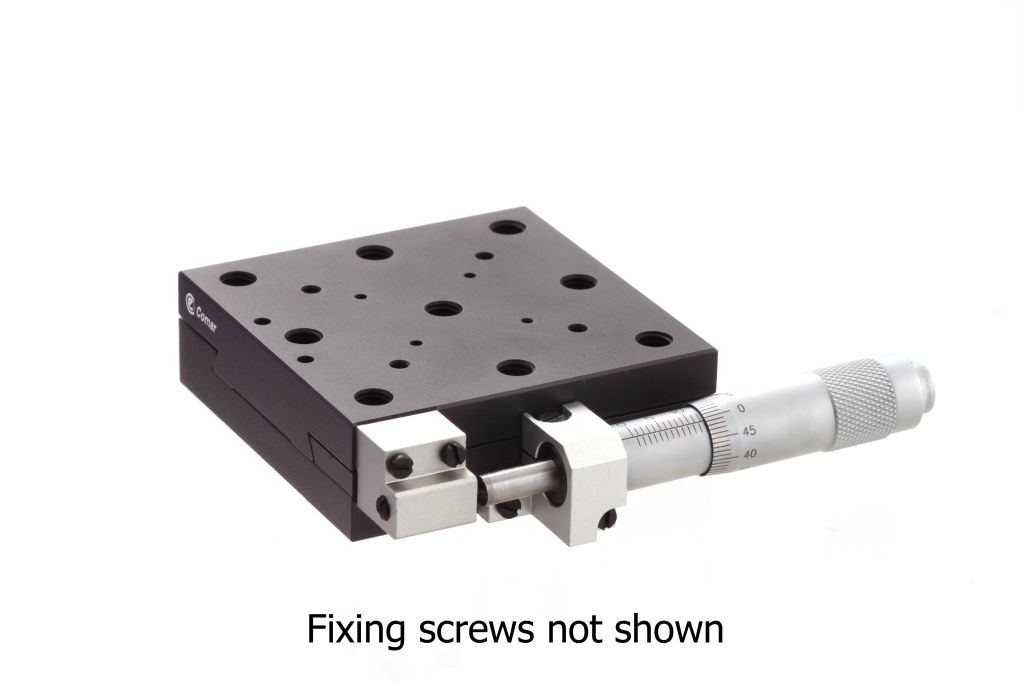

| 12 XT 65 | Side drive | Micrometer | 65 x 65 x 20.5 | 1 | 25 | TBA | Send us a stock query | |||

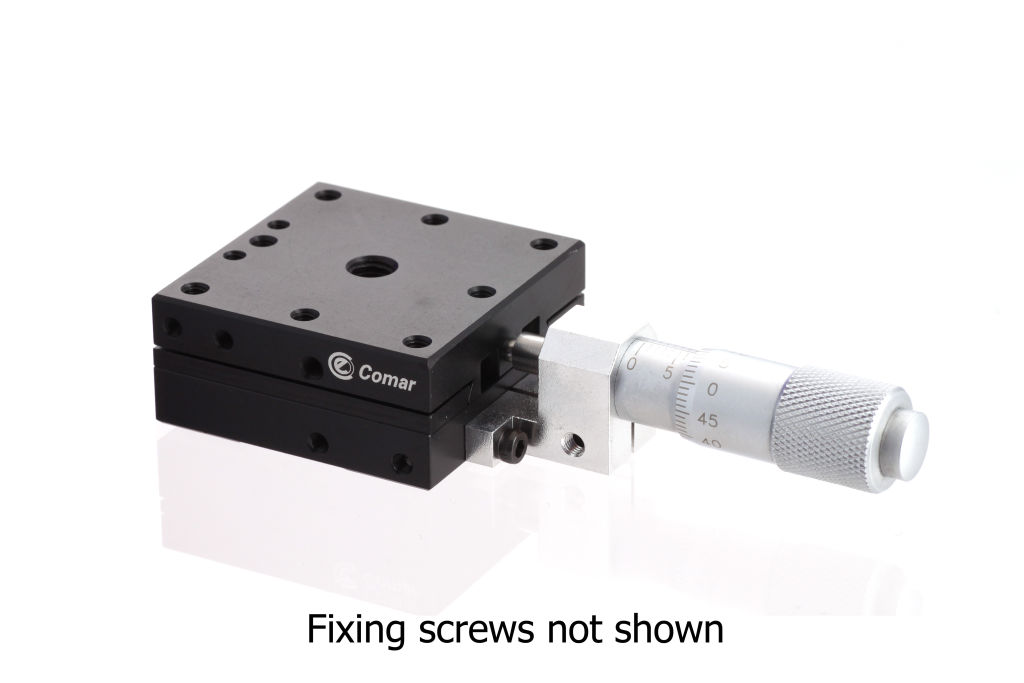

| 10 XT 40 | Centre drive | Micrometer | 40 x 40 x 18 | 1 | 13 | £146.77 | ||||

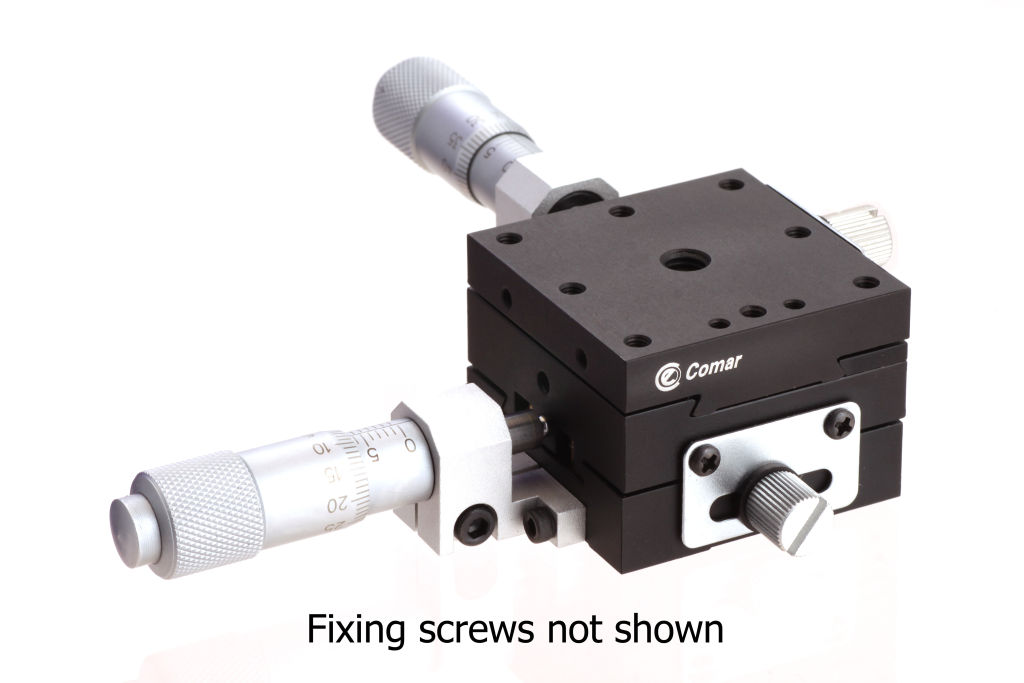

| 20 XT 40 | Centre drive | Micrometer | 40 x 40 x 29 | 2 | 13 | TBA | Send us a stock query | |||

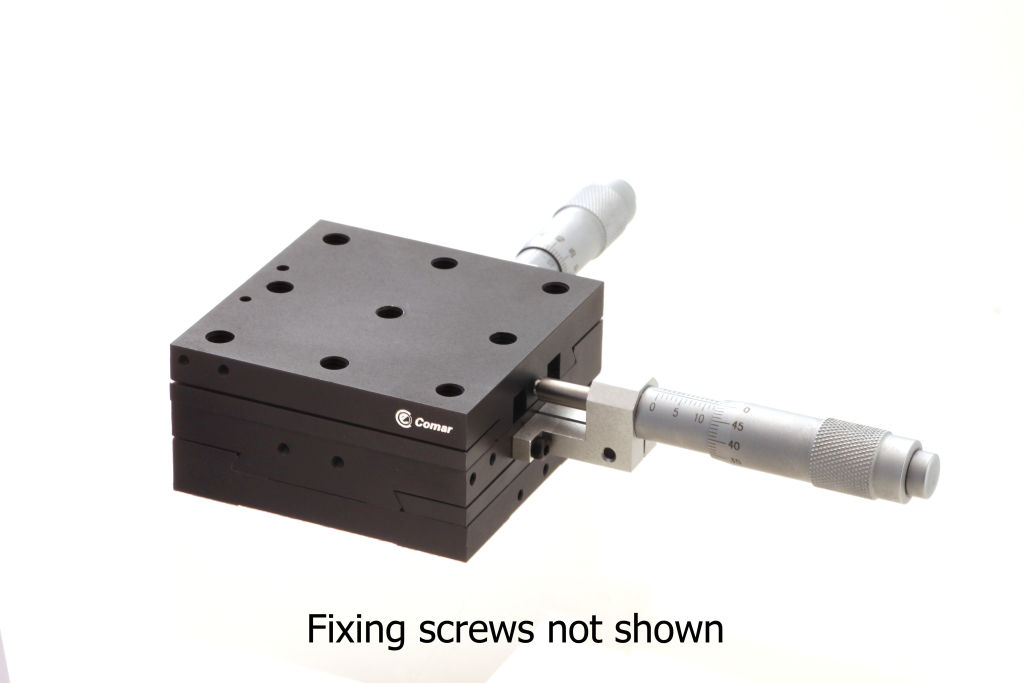

| 20 XT 65 | Centre drive | Micrometer | 65 x 65 x 33 | 2 | 25 | TBA | Send us a stock query | |||

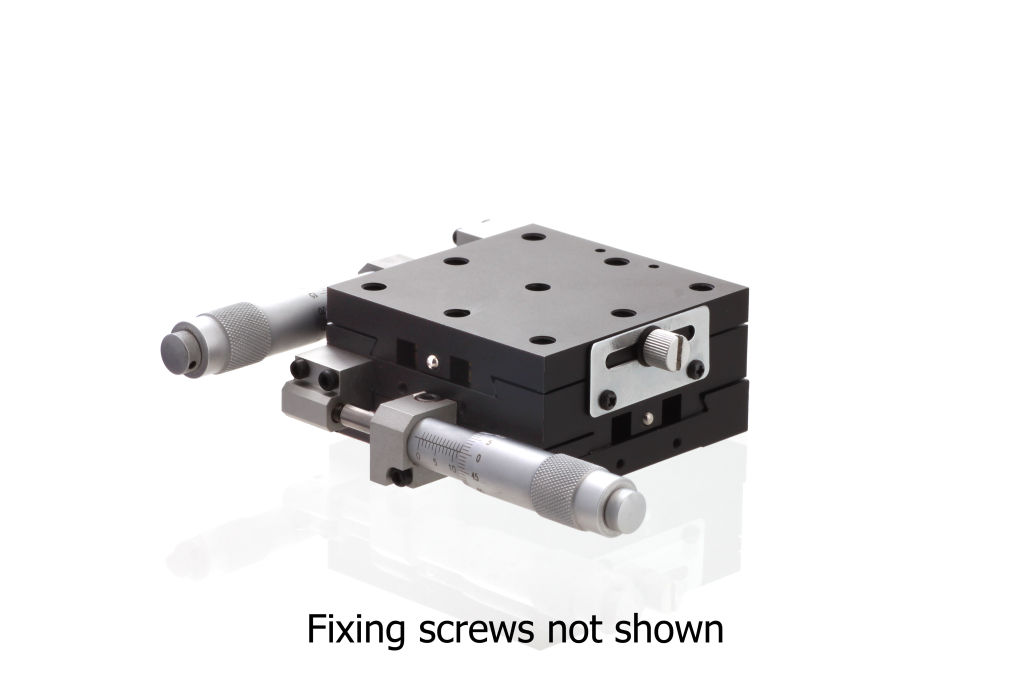

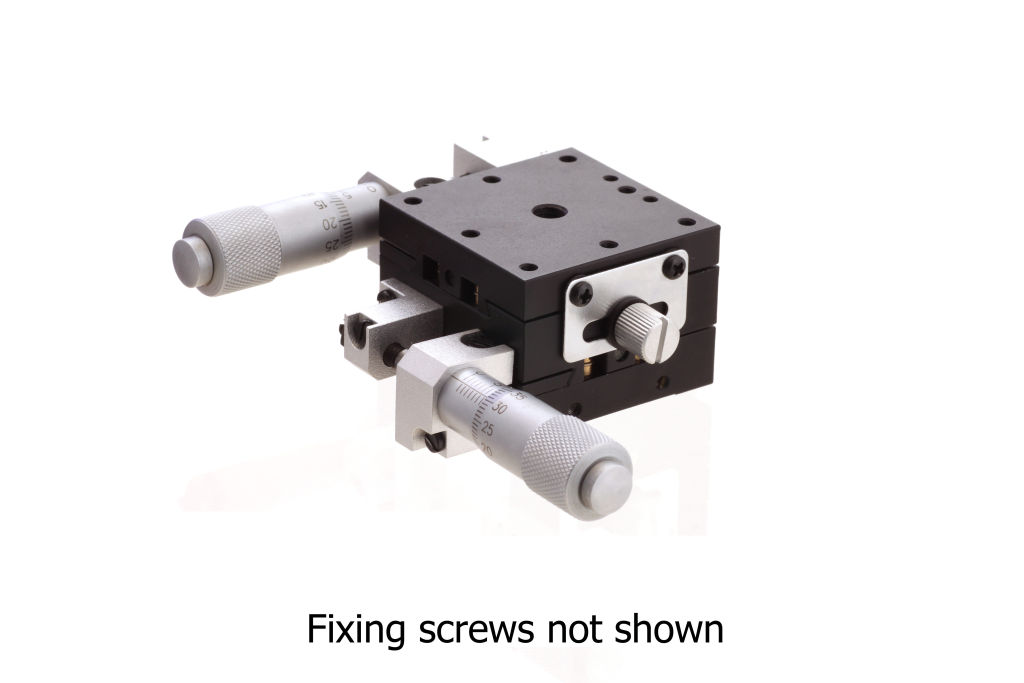

| 22 XT 65 | Side drive | Micrometer | 65 x 65 x 33 | 2 | 25 | TBA | Send us a stock query | |||
| 22 XT 40 | Side drive | Micrometer | 40 x 40 x 29 | 2 | 13 | TBA | Send us a stock query | |||
