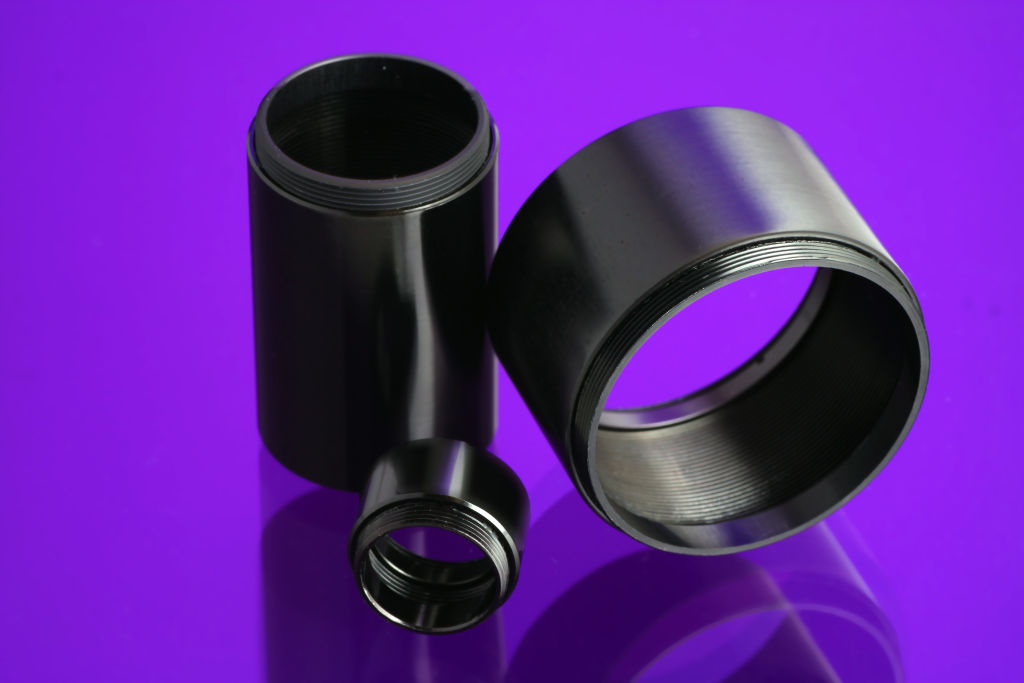

Spigoted lens cells

Enlarge main image

Description

Each TubeMount cell is supplied with a slotted retaining ring, which normally holds the lens against the shoulder at the back of the cell. Any circular component up to the maximum thickness listed can be mounted. To vary the lens position, or hold several lenses in one cell, see spacers and retaining rings.

The ML cells have a threaded spigot which screws into any other TubeMount element of the same size, and are useful as extension tubes or to add to an existing system. Further types for other support methods are available e.g. Flanged cells and panel-mounting cells.

Cells for 1" optics can also be provided. Please enquire

Technical

Dimensional details are given hereunder. The table on this page relates to type ML. For plain-ended cells (type MB) click here. For diameter and thread data see box on Tubemount introduction page.

rod mount

More...

Item code	Body length L (mm)	Max. lens thickness (mm)	Lens diameter (mm)	Price per item (£ GBP)	Select amount
06 ML 16	6.3	1.3	16	£21.42
20 ML 25	20	15	25	£21.42
20 ML 40	20	15	40	£24.44
20 ML 50	20	15	50	TBA	Send us a stock query
25 ML 16	25	20	16	£21.42
25 ML 25	25	20	25	£21.42
25 ML 40	25	20	40	TBA	Send us a stock query
25 ML 50	25	20	50	TBA	Send us a stock query
40 ML 16	40	35	16	£25.05
40 ML 25	40	35	25	£25.05
40 ML 40	40	35	40	TBA	Send us a stock query
20 ML 16	20	15	16	£21.42
16 ML 50	16	11	50	TBA	Send us a stock query
06 ML 25	6.3	1.3	25	£21.42
06 ML 40	6.3	1.3	40	£24.44
06 ML 50	6.3	1.3	50	TBA	Send us a stock query
10 ML 16	10	5	16	£21.42
10 ML 25	10	5	25	£21.42
10 ML 40	10	5	40	TBA	Send us a stock query
10 ML 50	10	5	50	TBA	Send us a stock query
16 ML 16	16	11	16	£21.42
16 ML 25	16	11	25	£21.42
16 ML 40	16	11	40	TBA	Send us a stock query
40 ML 50	40	35	50	TBA	Send us a stock query

For more information regarding stock availability icons, please see our shipping page.
