UV-silica windows
Description

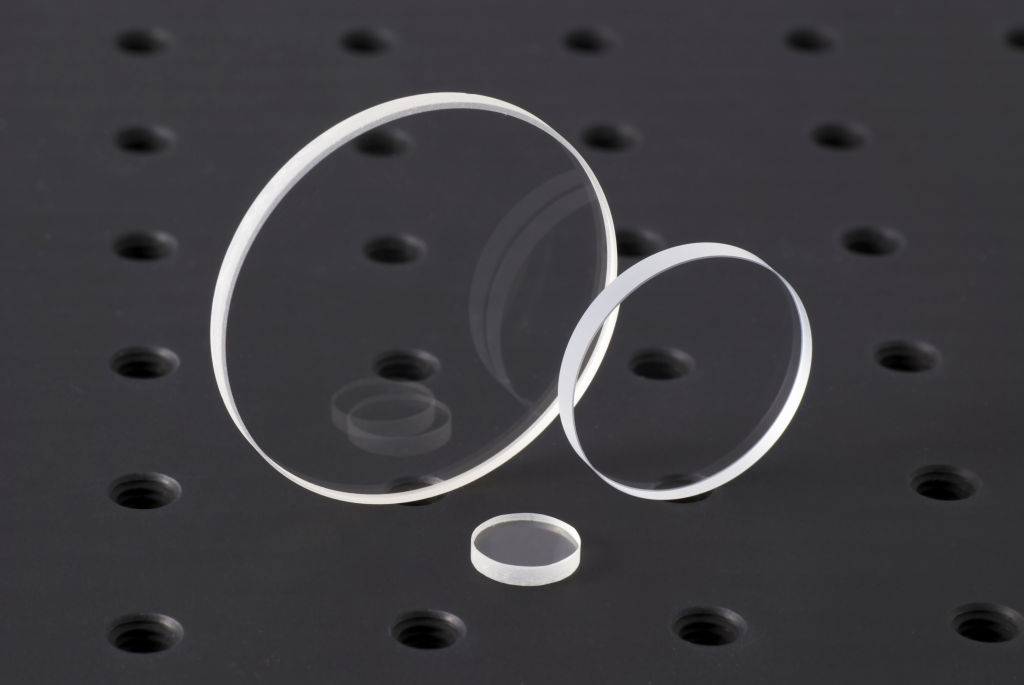

These windows, made from UV-grade synthetic fused silica, can be used down to around 170nm wavelength and have very low fluorescence and excellent chemical and radiation resistance. UV-silica has a very low expansion coefficient (<0.5x10-6/K) giving windows fabricated from this material excellent thermal shock resistance. It is also an excellent high temperature material, being usable to 1050 degrees C.
|
Diameter |
+0, -0.2mm |
|
Thickness |
±0.1mm |
|
Flatness |
1λ (over 90%) |
|
Material Data |
- Mounting (items up to 50mm dia.)
- AR coating
- Mounting in camera filter rings (See camera lens and camera filter holders)
For more details of your modification needs please enquire.
| Item code | Diameter (mm) | Thickness (mm) | Coating type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|
| 25 GS 00 | 25 | 3 | Uncoated | £37.87 | ||||
| 10 GS 01 | 10 | 2 | AR - coated 248-400nm | £47.80 | ||||
| 16 GS 00 | 16 | 3 | Uncoated | £23.11 | ||||
| 16 GS 01 | 16 | 3 | AR - coated 248-400nm | £56.87 | ||||
| 25 GS 01 | 25 | 3 | AR - coated 248-400nm | £70.91 | ||||
| 40 GS 00 | 40 | 3 | Uncoated | £60.14 | ||||
| 40 GS 01 | 40 | 3 | AR - coated 248-400nm | £101.64 | ||||
| 50 GS 00 | 50 | 4 | Uncoated | £81.68 | ||||
| 50 GS 01 | 50 | 4 | AR - coated 248-400nm | £131.04 | ||||
| 63 GS 00 | 63 | 6 | Uncoated | £124.87 | ||||
| 10 GS 00 | 10 | 2 | Uncoated | £18.51 | ||||
For more information regarding stock availability icons, please see our shipping page.
