Graduated rotating holders (precision)
Description

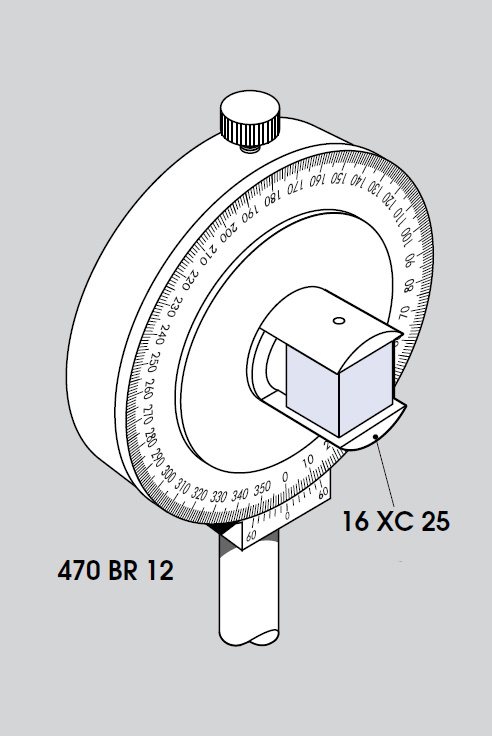

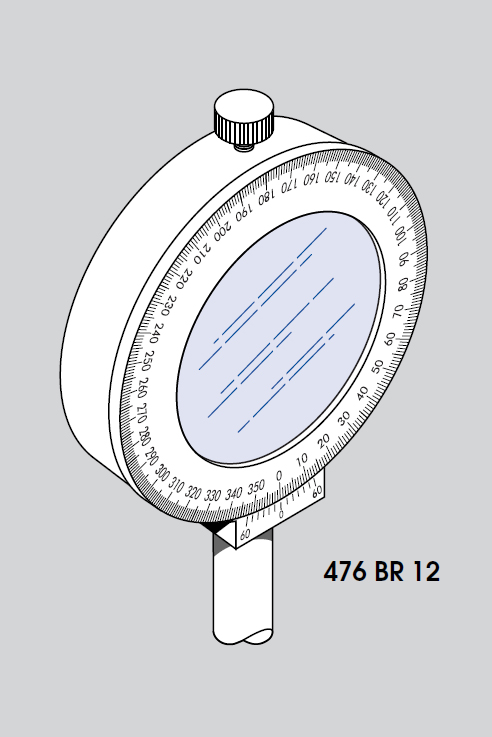

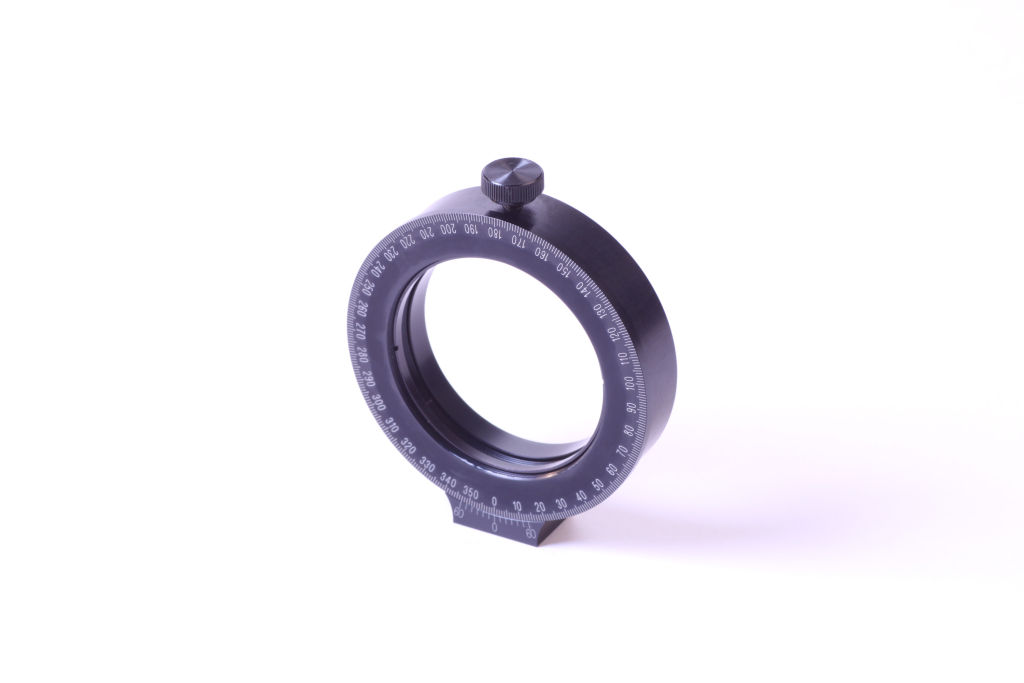

These rotating holders with scales graduated in 1° divisions allow polarisers etc. to be rotated through accurately measured angles, aided by a vernier reading to 10 arc-minutes. They are available for both 25mm and 50mm diameter components; other sizes can be mounted using lens-size adaptors. The rotation can be locked at any desired angle with the clamp screw provided. To mount polarising cubes and similar prisms in this holder see clevis mounts.
Alternative post
Direct mount holder have M6 thread to accept alternative posts.
For more details of your modification needs please enquire.
| Item code | Axis height (mm) | Post length (mm) | Component diameter (mm) | Clear aperture (mm) | Post diameter (mm) | Mount type | Price per item (£ GBP) |
Stock available | Volume discount available |
Datasheets & customisation options |
Select amount |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 476 BR 00 | 40 | - | 50 | 48.2 | - | Direct mount holder | £168.80 | ||||
| 470 BR 00 | 40 | - | 25 | 23.2 | - | Direct mount holder | £177.75 | ||||
For more information regarding stock availability icons, please see our shipping page.
