Description

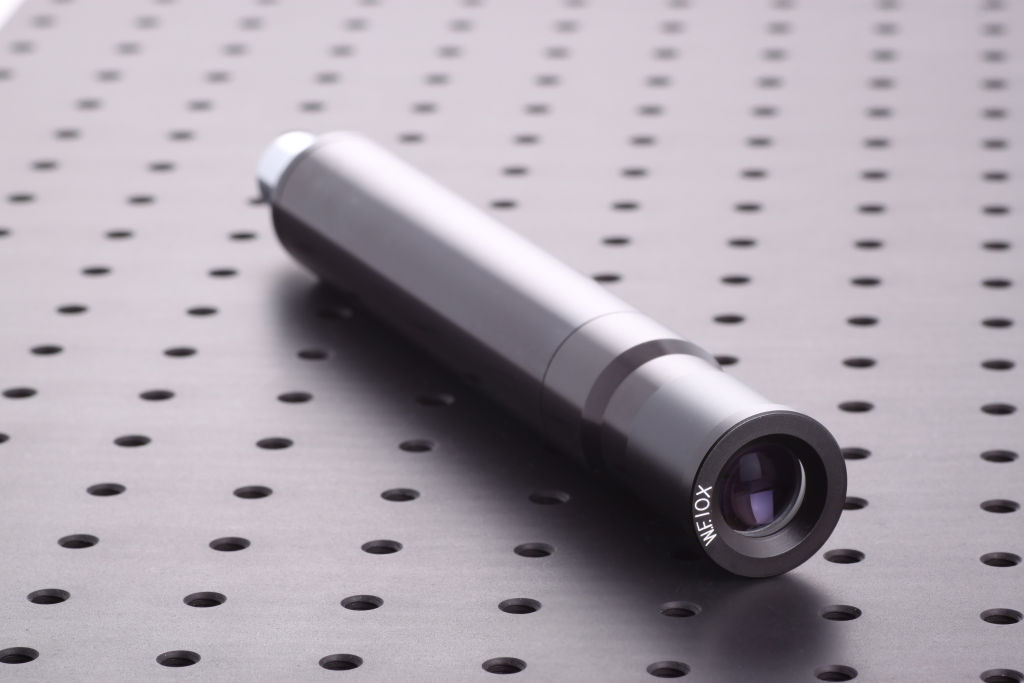

These visual and camera microscopes are convenient for building a wide range of industrial vision and inspection systems. We list both empty tubes accepting standard microscope optics and ready-made systems. All tubes are 28mm diameter.

The visual systems use 10x widefield eyepieces, which accept 19mm dia. graticules (see eyepiece graticules and stage graticules). Those with focusing eyepiece allow the focus on the graticule to be adjusted to suit individual users’ sight and are recommended if a graticule is to be frequently used. For accurate measurements, scale graticules should be calibrated using a stage graticule, since the magnifications quoted are approximate only.
